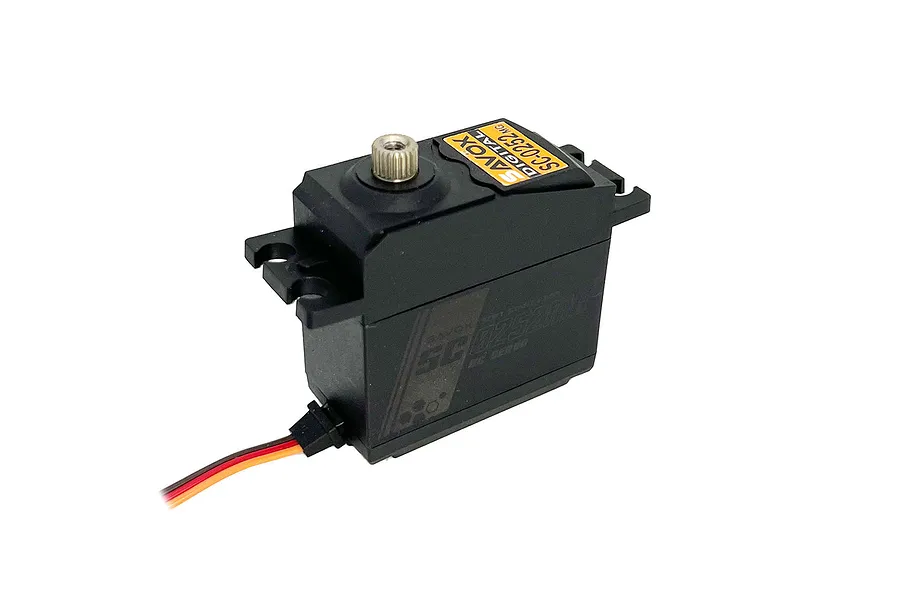

Savox SC-0252MG-Plus Standard 10.5kg 6V Metal Geared Servo

Part no. SC-0252MG-PLUS

1 in stockNo reviews yet
1 / 3
1 / 3

Videos

$60.80

or 4 fortnightly payments of $15.20 with afterpay or PayPal, or zip

High-torque digital metal-geared servo with Soft Start and Sanwa SSR compatibility — 10.5 kg-cm at 6V.

  • Digital servo with Soft Start and Sanwa SSR compatibility
  • 10.5 kg-cm torque at 6V with metal gears
  • Ball bearings for smooth, unrestricted movement
  • Drop-in upgrade over plastic-geared servos

Want more than 1? and we'll email you when they're here.

Videos

$60.80

Overview

The Savox SC-0252MG is a high-torque, metal-geared, digital servo designed for standard RC applications. It serves as an excellent upgrade for standard, plastic-geared servos offering lower torque capabilities. “Plus” series servos feature Soft Start and Sanwa SSR compatibility, providing enhanced control and compatibility.

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Leading edge digital servo technology
  • Accurate and fast response
  • Ball bearings provide fluid and unrestricted movement
  • Metal gears are durable and long lasting

In the box

  • 1x Savox SC-0252MG-Plus Standard 10.5kg 6V Metal Geared Servo

Specifications

Spline size25T Spline
Servo TechnologyDigital
Operating Voltage4.8V – 6V
Motor TypeBrushed Motor
Weight49g
Gear TypeMetal Gears
Servo CaseBlack Plastic
Torque @ 4.8V7.2 kg-cm (100 oz-in)
Torque @ 6V10.5 kg-cm (145.8 oz-in)
Speed @ 4.8V0.23 sec/60 deg
Speed @ 6V0.19 sec/60 deg
Connector typeJR/Futaba

Servo

SizeConventionally sized servo namesStandard
Gear MaterialMetal
Servo Spline Count25Tooth
Input Voltage Range4.8V, 6V
Case MaterialPlastic
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
4.8V Torque kg/cm7.2
4.8V Sec/60 Degrees0.23
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline10.5
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.19
Signal TypeDigital

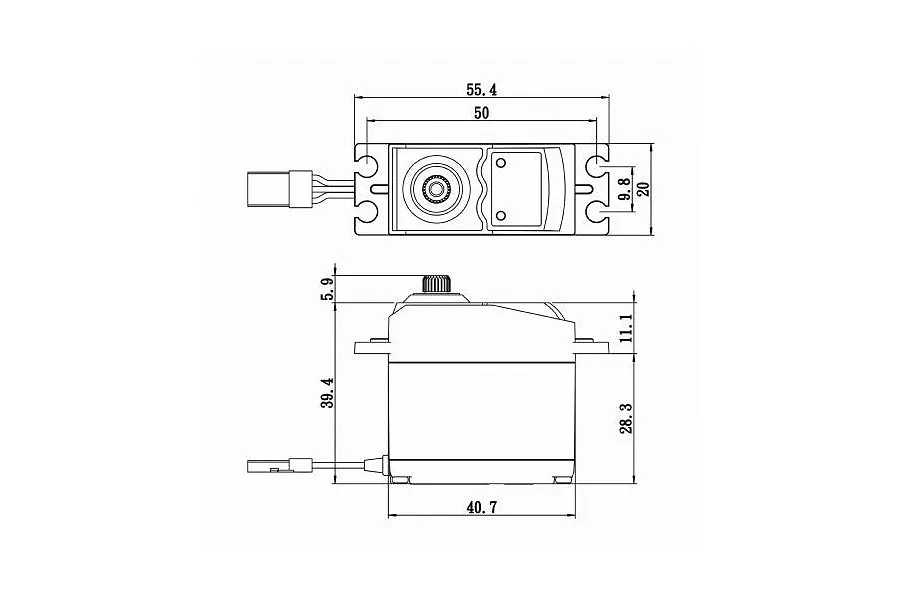

Dimensions

Servo
Height (A)39.4mm
Body Length (B)40.7mm
Bottom to Under Mount (C)28.3mm
Top to Under Mount (D)17mm
Length (E)55.4mm
Width (F)20mm
