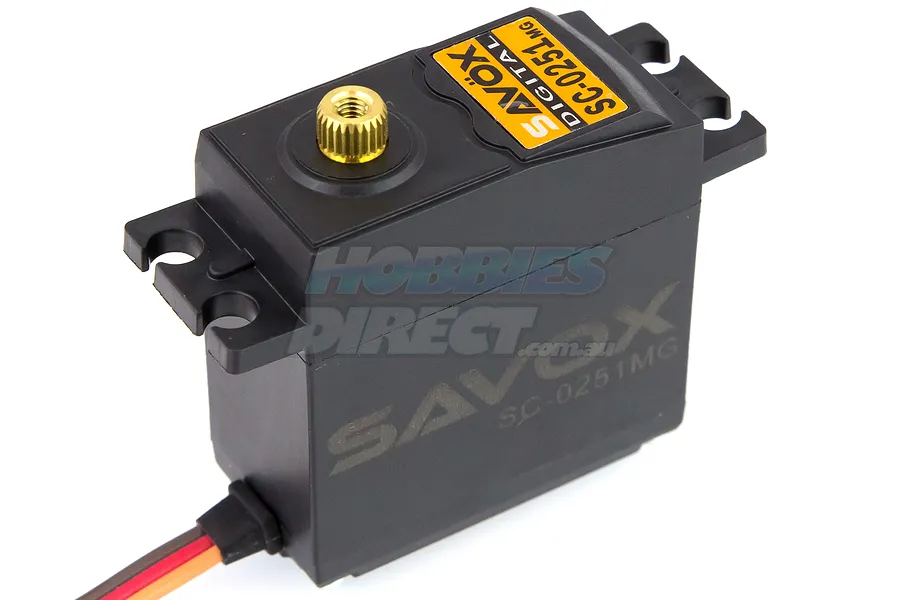

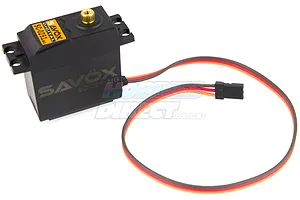

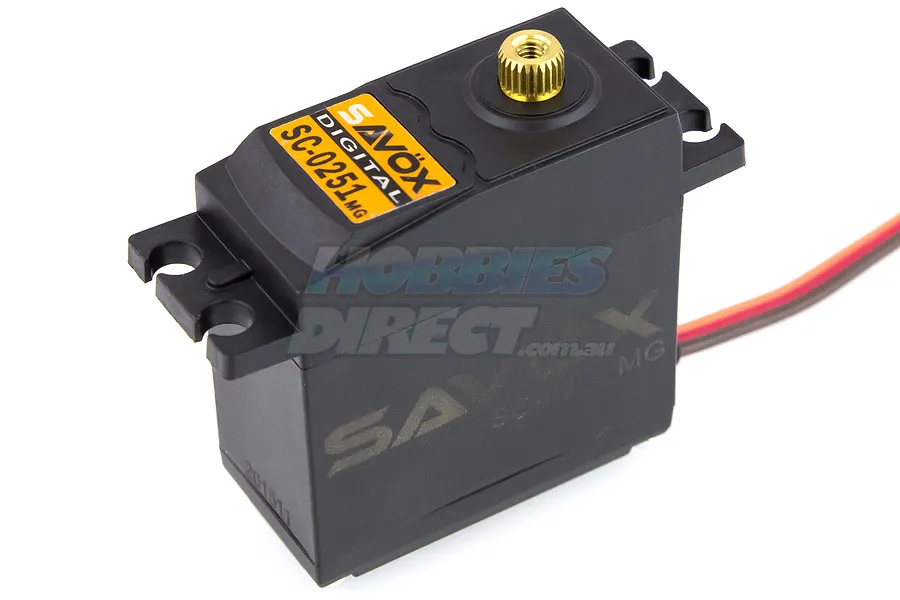

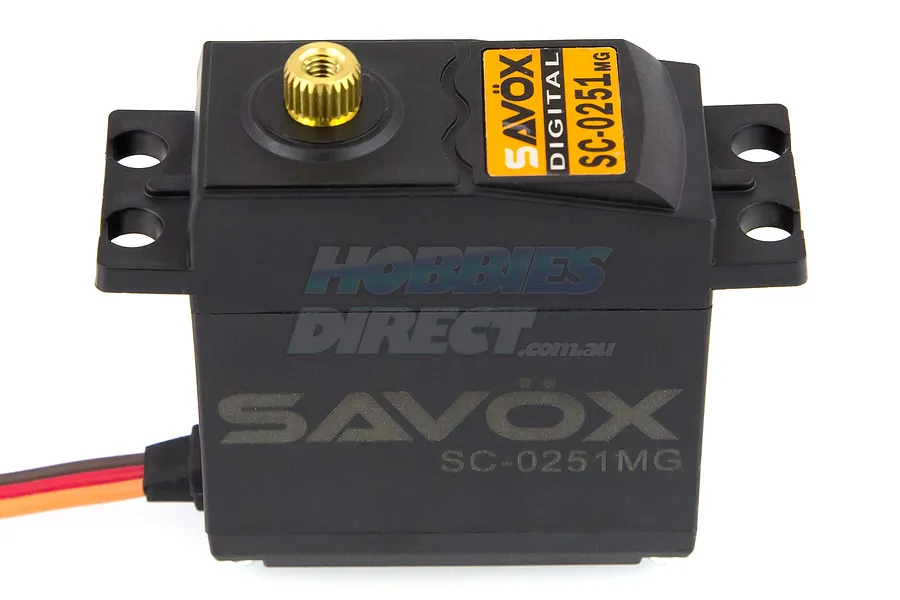

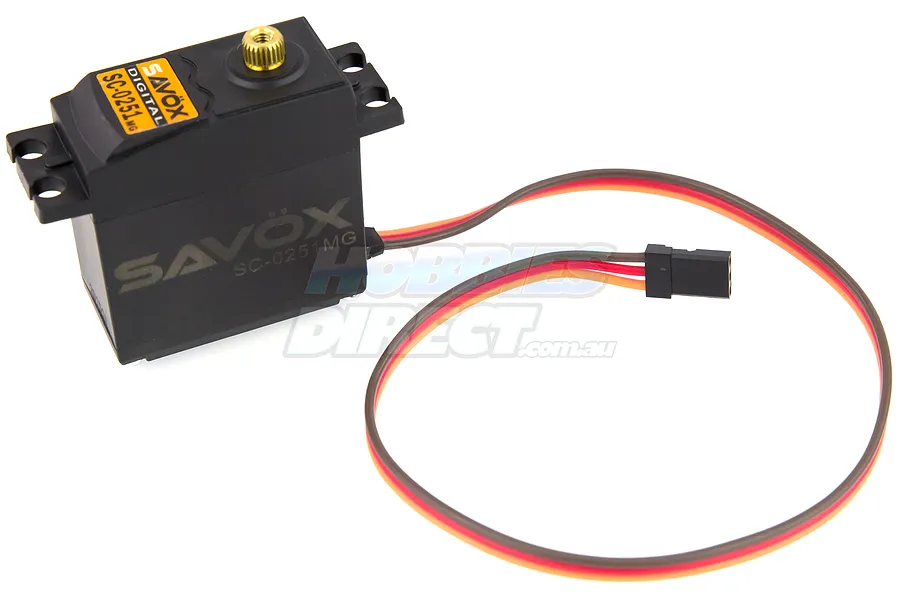

Savox 16kg Standard 6v Metal Geared Servo
Videos
Savox 16kg Standard 6v Metal Geared Servo
Brand:
Savox
|
MPN: SC-0251MG
Compatible with
11 products.
See Compatibility
Related Products
Description
The Savox SC-0251MG Plus is a versatile digital servo that delivers exceptional torque and features a robust metal gear train, making it well-suited for a wide range of applications. The 'Plus' series compatibility further enhances its capabilities with Soft Start for smoother operation and Sanwa SSR compatibility.
Features
- The metal gearing provides incredible strength and longevity
- Durable plastic casing keeps weight down
- Plus series includes Soft Start and Sanwa SSR compatibility
- Ideal for aircraft and some 1/8 off-road car applications
Included Items
- 1x Savox 16kg Standard Plus 6v Metal Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
-
Spline size
- 25T Spline
-
Servo Technology
- Digital
-
Operating Voltage
- 4.8V – 6V
-
Motor Type
- Brushed Motor
-
Weight
- 61g
-
Gear Type
- Metal Gears
-
Refresh Rate
- 240 Hz
-
Servo Case
- Plastic
-
Torque @ 4.8V
- 13 kg-cm (180.5 oz-in)
-
Torque @ 6V
- 16 kg-cm (222.2 oz-in)
-
Speed @ 4.8V
- 0.20 sec/60 deg
-
Speed @ 6V
- 0.18 sec/60 deg
-
Connector type
- JR/Futaba
-
Total Height (A)
- 47.1mm
-
Body Width (B)
- 40.7mm
-
Below Mount (C)
- 32mm
-
Above Mount (D)
- 15.1mm
-
Total Length (E)
- 55.4mm
-
Total Width (F)
- 20mm
Servo
-
Height (A)
- 47.1mm
-
Body Length (B)
- 40.7mm
-
Bottom to Under Mount (C)
- 32mm
-
Top to Under Mount (D)
- 15.1mm
-
Length (E)
- 55.4mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 4.8V, 6V
-
4.8V Torque kg/cm
- 13
-
4.8V Sec/60 Degrees
- 0.20
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 16
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.18
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
