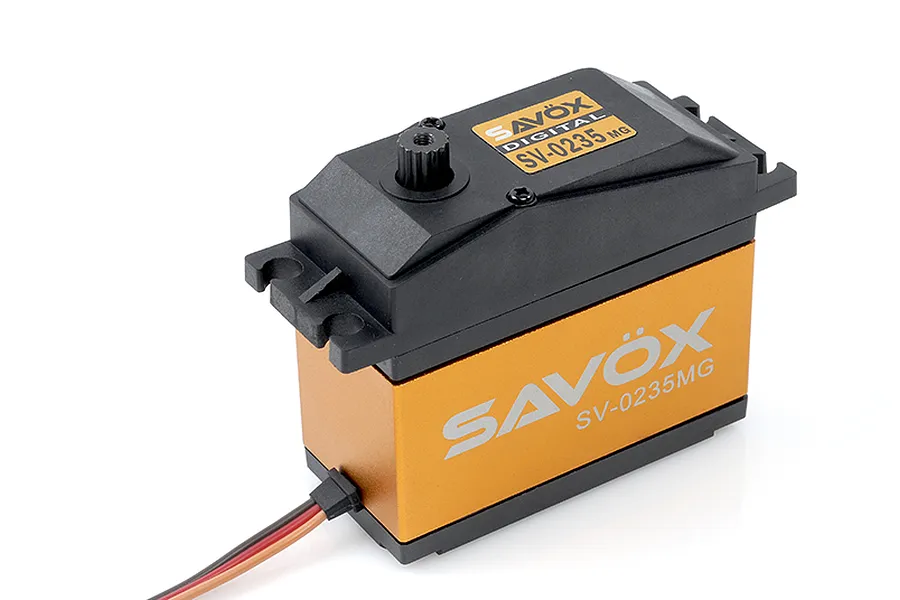

Savox SV-0235MG 1/5 35kg 7.4V Metal Geared Servo
Savox SV-0235MG 1/5 35kg 7.4V Metal Geared Servo
Brand:
Savox
|
SKU: SV-0235MG
Loading compatibility information...
Related Products
Description
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
SAV-SV-0235MG Servo SpecificationsTotal Height (A) = 63.9mm
Body Width (B) = 65.8mm
Below Mount (C) = 40.4mm
Above Mount (D) = 23.5mm
Total Length (E) = 81.8mm
Total Width (F) = 30mm
Specifications
Servo
-
Height (A)
- 63.9mm
-
Body Length (B)
- 65.8mm
-
Bottom to Under Mount (C)
- 40.4mm
-
Top to Under Mount (D)
- 23.5mm
-
Length (E)
- 81.8mm
-
Width (F)
- 30mm
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Input Voltage Range
- 6V, 7.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 28
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.18
-
7.4V Torque kg/cm
- 35
-
7.4V Sec/60 Degrees
- 0.14
-
Signal Type
- Digital
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
