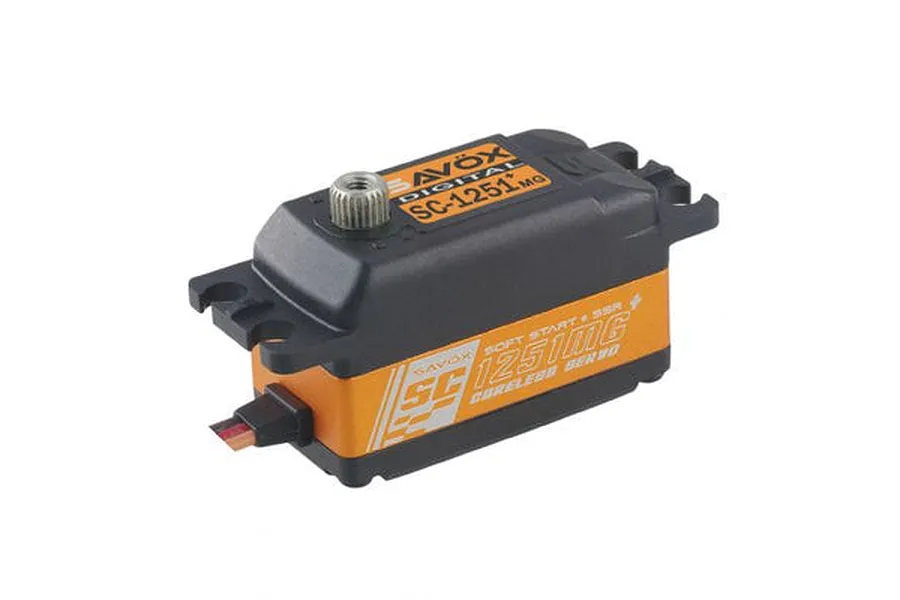

Savox Orange Aluminium 9kg Plus Low Profile 6v Metal Geared Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The SC-1251MG Plus is a high-speed, low-profile servo that embodies cutting-edge technology and a sophisticated metal gear train, making it an excellent choice for applications where space or weight is a constraint. Additionally, the "Plus" series features enhance its capabilities with Soft Start for smoother operation and Sanwa SSR compatibility for expanded compatibility
- The metal gearing provides incredible strength and longevity
- Aluminium middle case provides protection and cooler operation
- The low profile design is perfect for tight spaces
- Plus series includes Soft start and Sanwa SSR compatibility
- Ideal for 1/10 on road vehicles
- Spline size: 25T Spline
- Servo Technology: Digital
- Operating Voltage: 4.8V - 6V
- Motor Type: Brushed Motor
- Weight: 44.5g
- Gear Type: Metal Gears
- Refresh Rate: 240 Hz
- Servo Case: Low Profile Orange Aluminium Middle w/ Plastic Top & Bottom
- Torque @ 4.8V: 7 kg-cm (97.2 oz-in)
- Torque @ 6V: 9 kg-cm (125 oz-in)
- Speed @ 4.8V: 0.10 sec/60 deg
- Speed @ 6V: 0.09 sec/60 deg
- Connector type: JR/Futaba

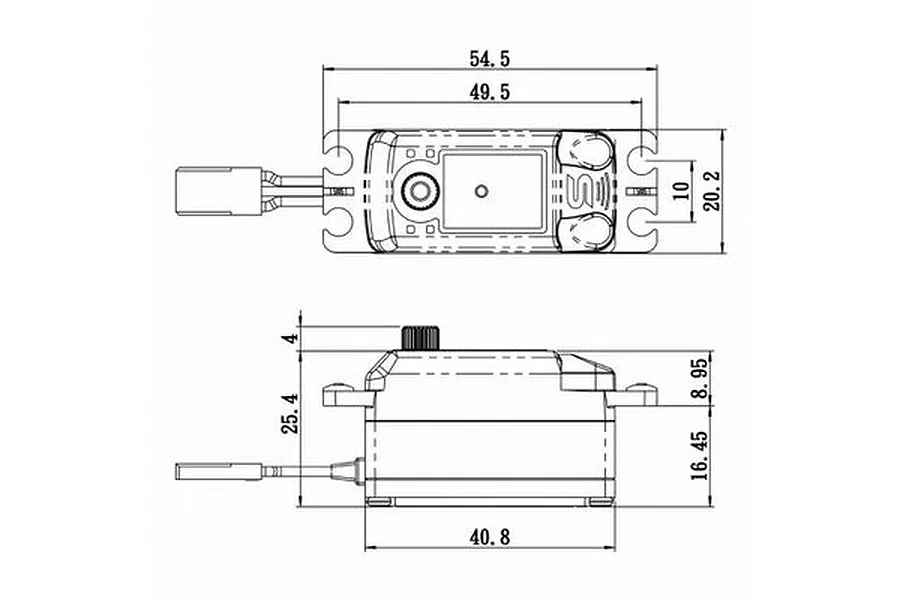

- Total Height (A) = 29.4mm
- Body Width (B) = 40.8mm
- Below Mount (C) = 16.45mm
- Above Mount (D) = 8.95mm
- Total Length (E) = 54.5mm
- Total Width (F) = 20.2mm
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
| Description | QTY | Savox Orange Aluminium 9kg Plus Low Profile 6v Metal Geared Servo | 1 |
|---|
| Servo | |
|---|---|
| Size: | Low Profile |
| 6.0v Torque: | 9kg |
| 6.0v Speed: | 0.09s |
| Gear Material: | Metal |
| Waterproof Casing: | No |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Input Voltage Range: | 4.8V, 6V |
| Drive Motor Type: | Brushed |
| Case Material: | Aluminium |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 29.4mm |
| Body Length: | 40.8mm |
| Bottom to Under Mount: | 16.45mm |
| Top to Under Mount: | 8.95mm |
| Total Length: | 54.5mm |
| Total Width: | 20.2mm |
| 4.8V Torque kg/cm: | 7 |
| 4.8V Sec/60 Degrees: | 0.10 |
