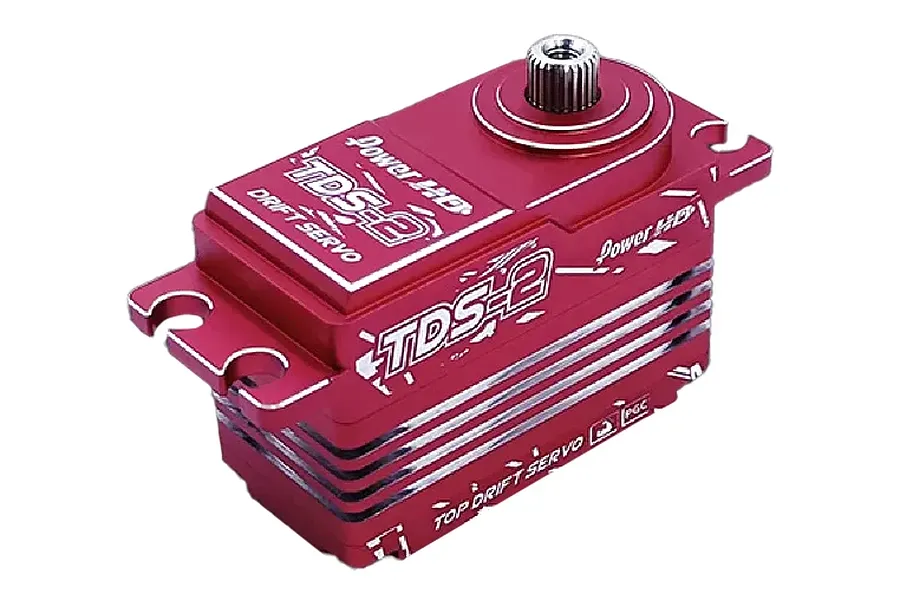

Power HD Aluminium TDS-2 Low Profile 8.4V 25kg Coreless Metal Geared Servo - Red
$131.15
Power HD Aluminium TDS-2 servo is a high-torque, coreless servo for 1/10 scale RC crawlers, buggies & trucks.
- Strong, eye catching aluminium finish
- 6-8.4V capability
- Lightning quick times
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The Power HD TDS-2 is a high-performance, low-profile servo designed for demanding applications.
With its coreless motor, titanium and steel gears, and dual ball bearings, this servo delivers exceptional speed and torque. It's ideal for 1/10 scale crawlers, buggies, and trucks where precision and responsiveness are crucial.
- High torque: 25kg-cm (347 oz-in) at 8.4V
- Fast speed: 0.09 sec at 8.4V
- Coreless motor for smooth and efficient operation
- Durable titanium and steel gears
- Dual ball bearings for precise movement
- Low-profile design for easy installation in tight spaces
- Compatible with program box for custom settings
- Genuine Power HD Product
- Torque(6.0V): 18.0 kg-cm (250.0 oz-in)
- Torque(7.4V): 22.0 kg-cm (305.5 oz-in)
- Torque(8.4V): 25.0 kg-cm (347.2 oz-in)
- Speed: 0.13 sec (6.0V) | 0.10 sec (7.4V) | 0.09 sec (8.4V)
- Weight: 61 g (2.15 oz)
- Operating Voltage: 6.0V - 8.4V
- Bearing Type: Ball Bearing x 2
- Motor Type: Coreless
- Operating Temperature: -20℃~60℃
- Refresh Rate: 333Hz
- 1x Power HD Aluminium TDS-2 8.4V 25kg Coreless Metal Geared Servo
| Servo | |
|---|---|
| Size: | Standard |
| 6V Torque kg/cm: | 18 |
| 6V Sec/60 Degrees: | 0.13 |
| 7.4V Torque kg/cm: | 22 |
| 7.4V Sec/60 Degrees: | 0.10 |
| 8.4V Torque kg/cm: | 25 |
| 8.4V Sec/60 Degrees: | 0.09 |
| Servo Spline Count: | 25Tooth |
| Gear Material: | Titanium & Steel |
| Waterproof Casing: | Splash Proof |
| Signal Type: | Digital |
| Input Voltage Range: | 6VV, 7.4VV, 8.4VV |
| Drive Motor Type: | Coreless |
| Case Material: | Aluminium |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 34mm |
| Body Length: | 41mm |
| Bottom to Under Mount: | 19.7mm |
| Top to Under Mount: | 14.3mm |
| Total Length: | 54.4mm |
| Total Width: | 20mm |
