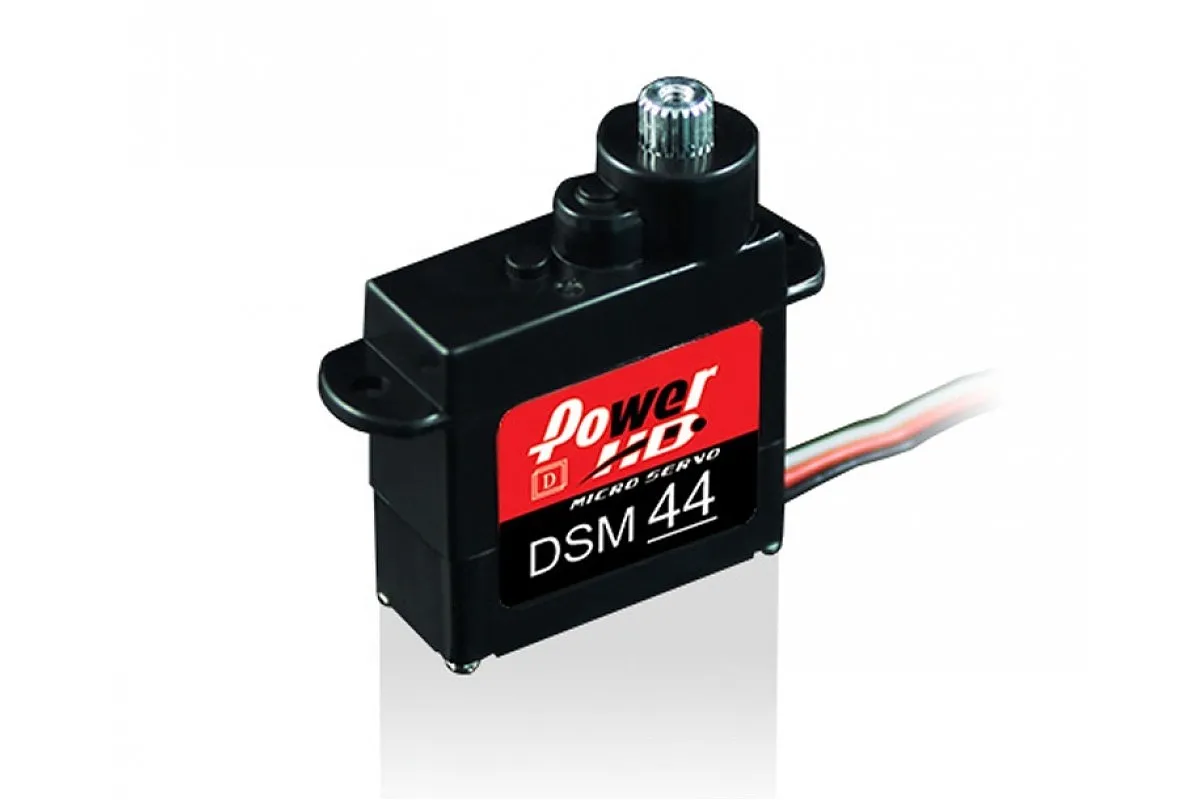

Power HD DSM44 Micro Coreless 1.6kg 6V Aluminium Geared Servo

Brand: Power HD | SKU: DSM44
Videos
sold out
On order since: Nov 22, 2024

$24.34
Price may change when stock arrives


Description

Power HD 1.6kg Micro Servo.

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Servo Dimension Specifications

Power HD DSM44 Servo Dimensions

  • Total Height (A) = 27mm
  • Body Width (B) = 20.3mm
  • Below Mount (C) = 15.2mm
  • Above Mount (D) = 11.8mm
  • Total Length (E) = 27.4mm
  • Total Width (F) = 8.4mm



Specifications
  • Torque(4.8V): 1.20 kg-cm (16.7 oz/in)
  • Torque(6.0V): 1.60 kg-cm (22.2 oz/in)
  • Speed: 0.09 sec (4.8V) ? 0.07 sec (6V)
  • Operating Voltage?4.8 ~ 6.0 DC Volts
  • Weight: 5.7g (.201oz)
  • Bearing Type?1 x Ball Bearing
  • Gear Type?Aluminium
  • Motor Type: Coreless
  • Operating Temperature?-20?~60?
  • Working frequence?1520?s / 333hz
  • Size?20.2x 8.7 x 24 mm (0.79 x 0.34 x 0.94 in)
Included items
Description QTY
Power HD Micro Coreless 1.6kg 6V Aluminium Geared Servo 1
Servo Horns 4
Screws 2
Specifications
Servo
Size: Micro
6.0v Torque: 1.6kg
6.0v Speed: 1.6s
Gear Material: Aluminium
Waterproof Casing: No
Servo Spline Count: 20tooth
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Plastic
Rotational Degrees: 360
Total Height: 27mm
Body Length: 20.3mm
Bottom to Under Mount: 15.2mm
Top to Under Mount: 11.8mm
Total Length: 27.4mm
Total Width: 8.4mm
