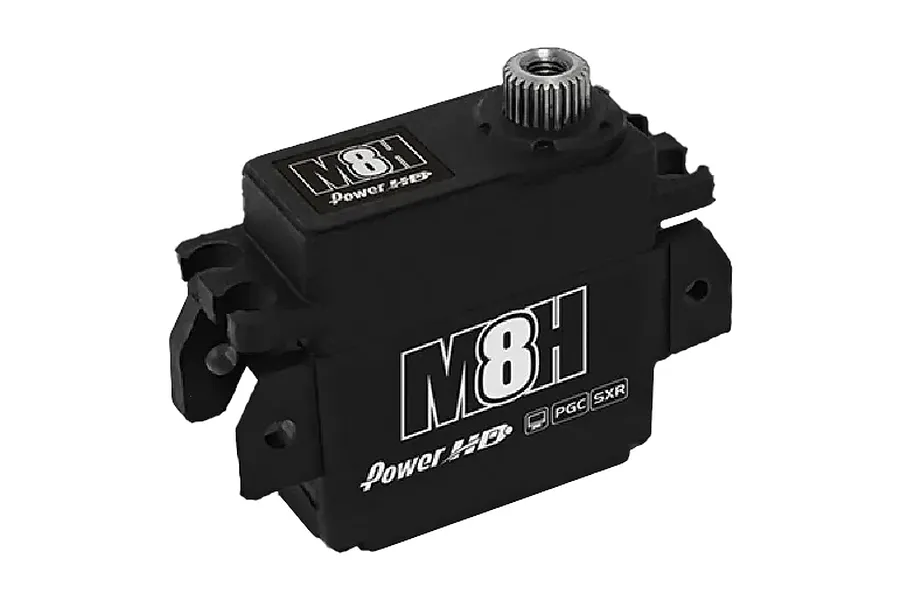

Power HD M8H Micro 8.5kg 8.4V Coreless Metal Geared Servo - Black

Brand: Power HD | SKU: M8H

1 in stock

write a review

$105.07

Power HD M8H Micro 8.5kg Servo: This Micro Beast puts up a Large Scale Performance!

Large voltage range makes this suitable for a wide range of different projects
Modern coreless motor technology
Micro sizing makes it ideal for aerial vehicles, small scale or as a diff/transmission servo

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

We'll send it today

When ordered within the next hms

Description

The Power HD M8H is a high-performance micro servo designed for demanding applications. With its coreless motor, 7075 aluminium gears, and dual ball bearings, this servo delivers exceptional speed and torque in a compact package. It's ideal as a diff lock or transmission servo for 1/10 scale crawlers, buggies, and trucks where reliability and response is important as well as being ideal for small scale cars and aerial vehicles where precision and responsiveness are crucial.

Features

High torque: 8.5kg-cm (118.0 oz-in) at 8.4V
Fast speed: 0.065 sec at 8.4V
Coreless motor for smooth and efficient operation

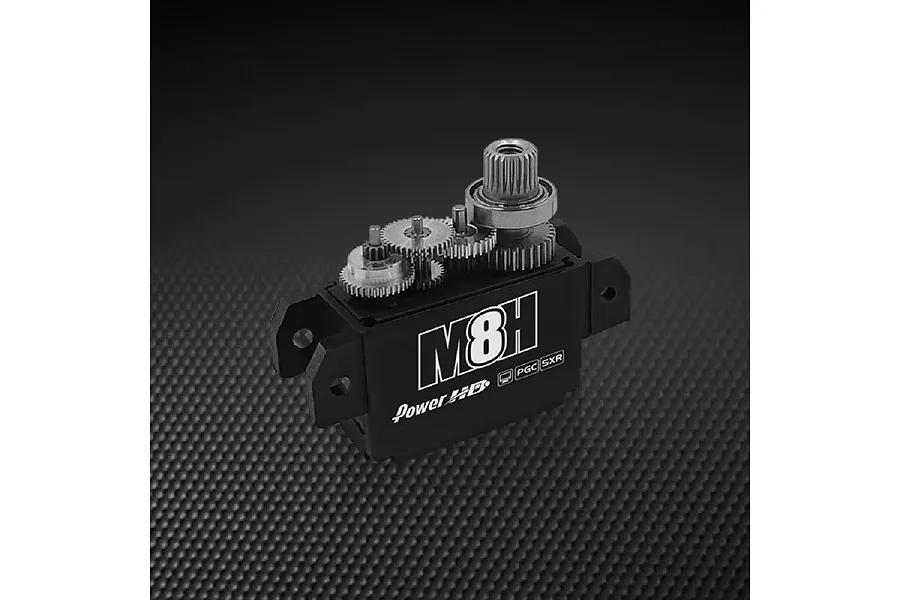

Durable 7075 aluminium gears
Dual ball bearings for precise movement
Compact size for easy installation in tight spaces
Compatible with program box for custom settings
Genuine Power HD Product

Specifications

Torque(4.8V): 4.5 kg-cm (62.5 oz-in)
Torque(6.0V): 6.3 kg-cm (87.5 oz/in)
Torque(7.4V): 7.5 kg-cm (104.2 oz-in)
Torque(8.4V): 8.5 kg-cm (118.0 oz-in)
Speed: 0.110 sec (4.8V)
Speed: 0.085 sec (6.0V)
Speed: 0.073 sec (7.4V)
Speed: 0.065 sec (8.4V)
Operating Voltage: 4.8 ~ 8.4 DC Volts
Weight: 18.0 g (0.63 oz)
Motor Type: Coreless Motor
Gear Type: 7075 Aluminum
Operating Temperature: -20℃~60℃
Refresh Rate: 333Hz

Included Items

1x Power HD M8H Micro 8.5kg 8.4V Coreless Metal Geared Servo - Black

Specifications

Servo

Height (A): 32mm
Body Length (B): 27mm
Bottom to Under Mount (C): 20mm
Top to Under Mount (D): 11mm
Length (E): 39mm
Width (F): 12mm
Size Conventionally sized servo names: Micro
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
Input Voltage Range: 8.4VV, 4.8VV
4.8V Torque kg/cm: 4.5
4.8V Sec/60 Degrees: 0.110
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 6.3
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.085
7.4V Torque kg/cm: 7.5
7.4V Sec/60 Degrees: 0.073
8.4V Torque kg/cm: 8.5
8.4V Sec/60 Degrees: 0.065
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Plastic
Rotational Degrees: 120° (Normal)
