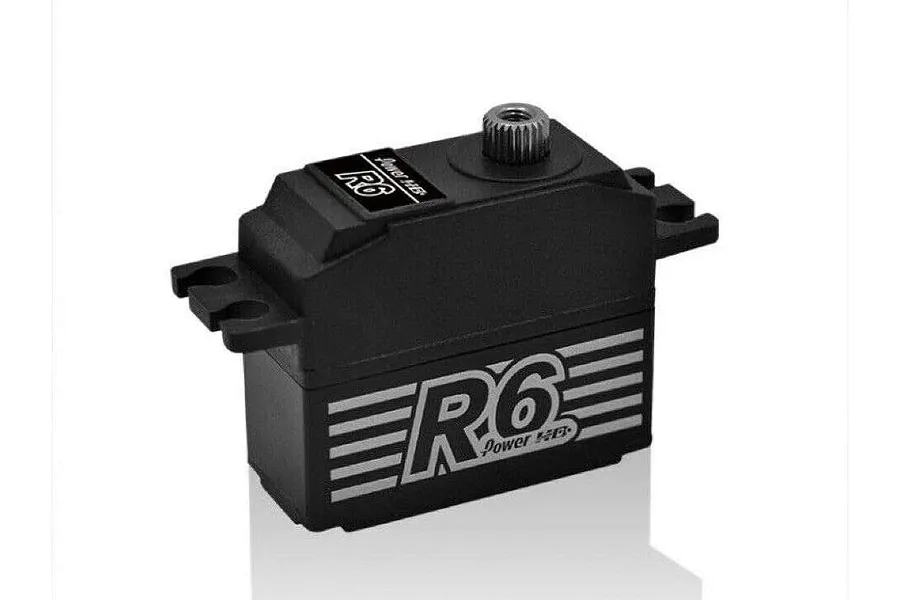

Power HD R6 Black Aluminium Mini Coreless 7.5kg 8.4V Aluminium & Copper Geared Servo
Power HD R6 Black Aluminium Mini Coreless 7.5kg 8.4V Aluminium & Copper Geared Servo
Brand:
Power HD
|
MPN: R6
$69.99
or 4 fortnightly payments of $17.50 with
Power HD R6 coreless servo for 1/12th cars — 7.5kg-cm torque, 0.08s speed, 4.8V–8.4V compatible, copper and aluminium gears, 28.5g.
- Ideal for 1/12th cars
- Coreless motor with up to 7.5kg-cm torque at 0.08s
- High-voltage compatible: 4.8V to 8.4V input
- Copper and aluminium gears
- Weighs only 28.5g
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Videos
Description
Power HD have introduced their new R6 servo ideal for 1/12th cars. Featuring a coreless motor it pulls up to 7.5kg-cm of torque at 0.08s and weighs only 28.5g. The high-voltage compatible servo is usable with 4.8V to 8.4V input and uses copper and aluminium gears.
Included Items
- 1x R6 Black Aluminium Mini Coreless 7.5kg 8.4V Aluminium & Copper Geared Servo
- 1x Servo Hardware Set
Videos
Specifications
-
Torque (6.0V)
- 6.5 kg-cm (90.27 oz/in)
-
Torque (7.4V)
- 7.5 kg-cm (104.16 oz/in)
-
Speed
- 0.09 sec (6.0V) / 0.08 sec (7.4V)
-
Operating Voltage
- 6.0 ~ 8.4 DC Volts
-
Weight
- 28.5 g (1.01 oz)
-
Bearing Type
- Ball Bearing x 2
-
Motor Type
- Coreless Motor
-
Gear Type
- Copper & Aluminum
-
Operating Temperature
- -20°~60°
-
Working Frequency
- 1520μs / 333Hz
-
Size
- 35.0 x 15.1 x 29.5 mm (1.38 x 0.59 x 1.136 in)
-
Total Height (A)
- 34.7mm
-
Body Width (B)
- 35mm
-
Below Mount (C)
- 20.5mm
-
Above Mount (D)
- 14.2mm
-
Total Length (E)
- 35mm
-
Total Width (F)
- 15.1mm
Servo
-
SizeConventionally sized servo names
- Mini
-
Gear Material
- Aluminium & Copper
-
Servo Spline Count
- 25Tooth
-
Waterproof Casing
- No
-
Case Material
- Aluminium
-
Height (A)
- 34.7mm
-
Body Length (B)
- 35mm
-
Bottom to Under Mount (C)
- 20.5mm
-
Top to Under Mount (D)
- 14.2mm
-
Length (E)
- 35mm
-
Width (F)
- 15.1mm
-
Drive Motor Type
- Coreless
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 7.5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.09
-
Signal Type
- Digital
