Power HD

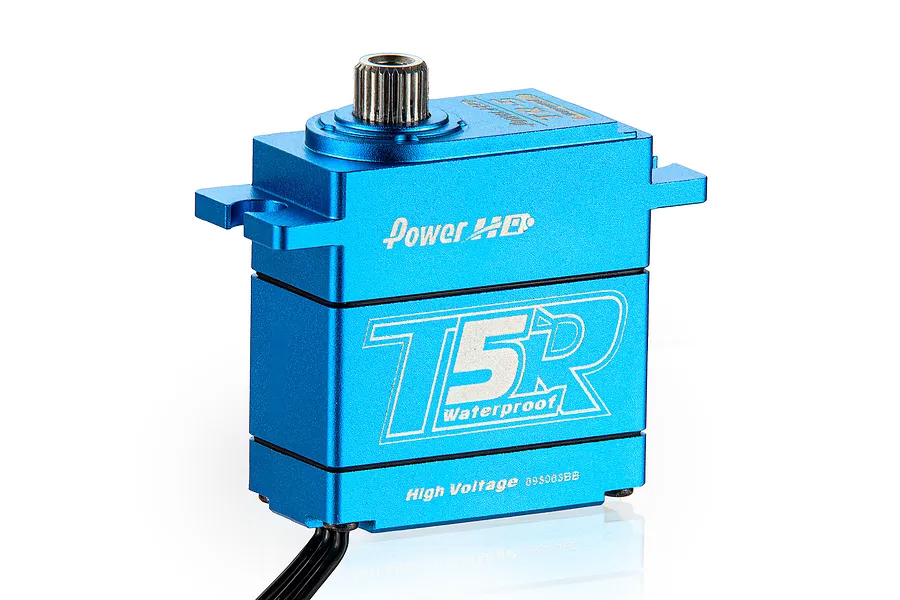

Power HD Blue Aluminium T5-R Mini 8.8kg 8.4v Metal Geared Waterproof Servo

Part no. TR-5

3+ in stockWrite a review

Videos

Now $62.99was $89.99 You Save 30%

Sale now on

or 4 fortnightly payments of $15.75 with afterpay

Waterproof mini servo with CNC aluminium body, 8.8 kg-cm torque at 8.4V, 25T spline, and TRAXXAS 1/16 compatibility.

  • Waterproof design for cars and boats
  • Full CNC machined aluminium body anodised in Blue
  • 8.8 kg-cm torque at 8.4V with metal gears
  • Standard 25T spline compatible with TRAXXAS servo horns
  • Supports 4.8–8.4V voltage range

Pay later with afterpay zip PayPal

  • 3+ in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Videos

Overview

The Power HD waterproof T5-R mini servo is perfectly compatible with TRAXXAS 1/16 series cars, and also applies to small-scale model cars and boats which require waterproof functions. With an 18cm signal wire from the servo bottom and a standard 25T output spline compatible with the original TRAXXAS servo horn, it supports 4.8V–8.4V input and delivers up to 8.8 kg-cm of torque at 8.4V.

Features

  • Full CNC machined aluminium body
  • Power HD waterproof design
  • Compatible with 4.8–8.4V voltage
  • Anodised in Blue
  • Genuine Power HD product

In the box

  • 1x T5-R Mini 8.8kg 8.4V Metal Geared Waterproof Servo
  • 1x Hardware Set

Specifications

Torque (4.8V)3.8 kg-cm (52.8 oz/in)
Torque (6.0V)6.0 kg-cm (83.3 oz/in)
Torque (7.4V)8.0 kg-cm (111.1 oz/in)
Torque (8.4V)8.8 kg-cm (122.2 oz/in)
Speed0.11 sec (4.8V) – 0.09 sec (6.0V)
Speed0.07 sec (7.4V) – 0.06 sec (8.4V)
Operating Voltage4.8–8.4V DC
Max Current7.4V 2.0A
Gear TypeMetal
Spline25T
Weight35.0g (1.23 oz)
Size29.5 x 14.0 x 31.4mm (1.16 x 0.55 x 1.24")
Total Height (A)36.5mm
Body Width (B)29.5mm
Below Mount (C)23.5mm
Above Mount (D)13mm
Total Length (E)40mm
Total Width (F)14mm

Servo

Servo
SizeConventionally sized servo namesMini
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingYes
Case MaterialAluminium
Height (A)36.5mm
Body Length (B)29.5mm
Bottom to Under Mount (C)23.5mm
Top to Under Mount (D)13mm
Length (E)40mm
Width (F)14mm
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline8.8
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.09
Signal TypeDigital
