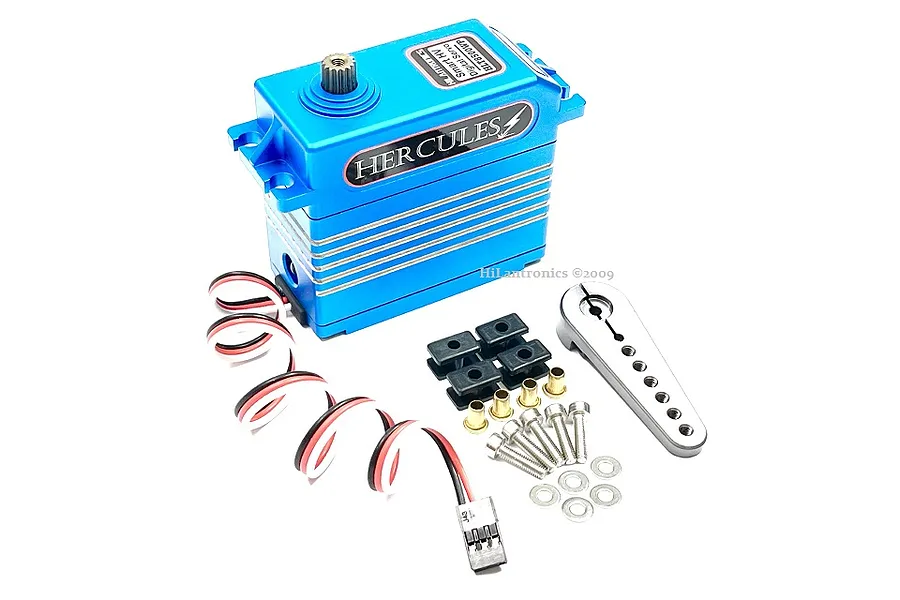

HiLantronics HLT8500WP Blue Aluminium 1/5 91kg 8.4v Metal Geared Waterproof Servo w/ Aluminium Servo Horn
HiLantronics HLT8500WP — 91kg 8.4V waterproof metal gear servo with aluminium horn, built for 1/5 scale RC applications.
- 91kg torque — suitable for 1/5 scale vehicles
- 8.4V metal geared waterproof design
- Blue anodised aluminium case
- Includes aluminium servo horn
- Rated for high-torque ESC setups; external BEC may be required
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver, smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Learn how to install a steering servo correctly to increase steering performance and avoid stripping your servo gears out.
- Total Height (A): 69mm
- Body Width (B): 67mm
- Below Mount (C): 44.8mm
- Above Mount (D): 24.7mm
- Total Length (E): 82mm
- Total Width (F): 31mm
If your ESC cannot support servos greater than 20kg torque, a Glitch Buster or external BEC may be required to prevent brown-outs and erratic driving behaviour.
-
Height (A)
- 69mm
-
Body Length (B)
- 67mm
-
Bottom to Under Mount (C)
- 44.8mm
-
Top to Under Mount (D)
- 24.7mm
-
Length (E)
- 82mm
-
Width (F)
- 31mm
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 15Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 91
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.23
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
