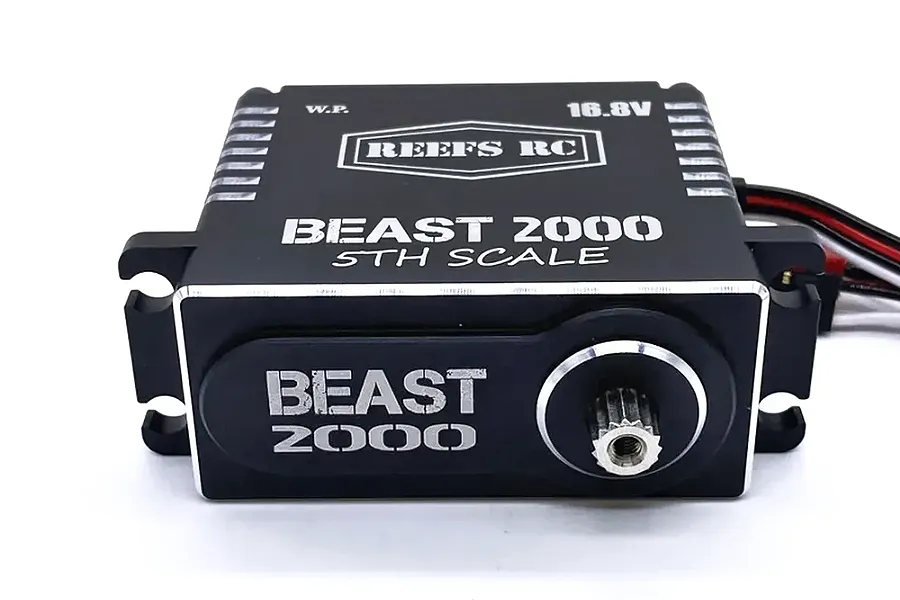

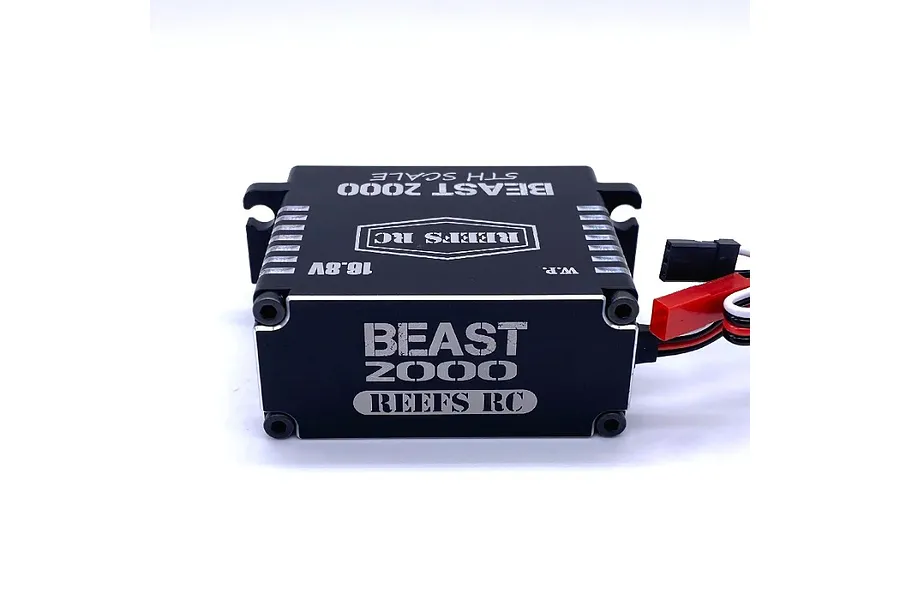

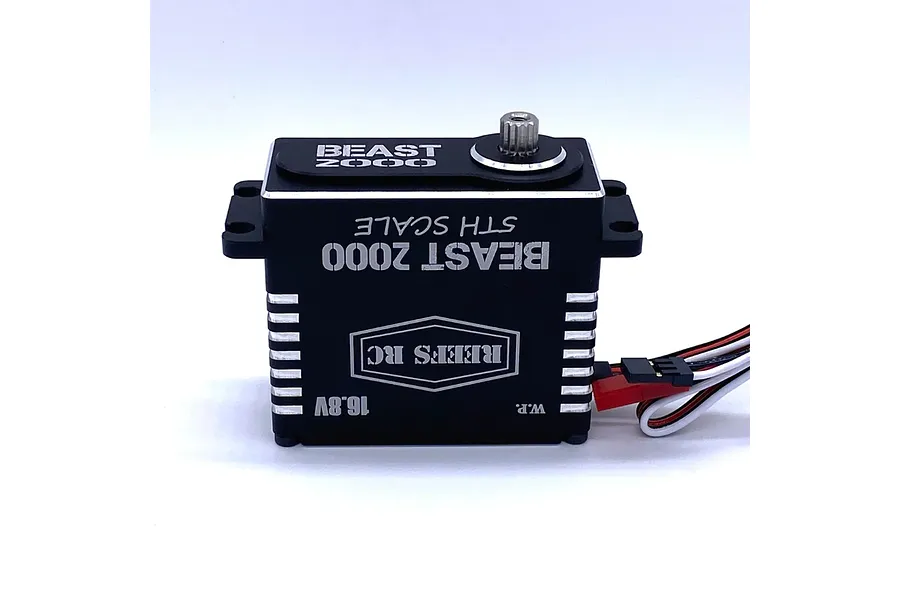

Reefs RC Aluminium BEAST 2000 1/5 Scale 144kg 16.8V Direct Power Brushless Metal Gear Winch Servo with Spool - Black
Now $575.99was $639.99 Save $64
Reefs RC Aluminium BEAST 2000 1/5 Scale 144kg 16.8V Direct Power Brushless Metal Gear Servo with 15T Horns - Black
- 1/5
- Brushless
Part no. REEFS103
1 in stockNo reviews yet
Reefs RC Beast 2000 1/5th Scale 144kg RC Servo: Ultimate torque, speed, and waterproof performance.
- High torque and speed for superior performance
- Strong torque @ 144.0 kg-cm and fast speed of 0.08 sec @ 16.8V
- Submarine waterproof with 7-point seals
- Magnetic angle sensor for precise control
- Durable steel gears and CNC aluminium casing
Want more than 1? and we'll email you when they're here.
1 in stock · Ships Thursday · order by Thursday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Overview
The Reefs RC Beast 2000 1/5th Scale Servo is designed for RC enthusiasts who demand the highest level of performance and reliability. This servo winch offers unparalleled torque and speed, making it perfect for the most challenging applications. With a voltage range of 7.4V to 16.8V, it provides consistent power and performance under various conditions.
Built to last, the Beast 2000 features steel gears and a CNC aluminium casing, ensuring it can withstand the toughest environments. The submarine waterproof design with 7-point seals offers excellent protection against water and dust, making it ideal for all-terrain adventures. The magnetic angle sensor and pulse width modulation control provide precise and responsive control, enhancing the overall driving experience. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC Beast 2000 is a powerful and reliable addition to your RC setup.
Note
BEC is not required but recommended for maximum performance
Consult the manual for waterproof standards and maintenance
Features
- High torque and speed brushless servo
- Strong torque @ 144.0 kg-cm (2000 oz-in) and fast speed of 0.08 sec @ 16.8V
- Submarine waterproof with 7-point seals
- Magnetic angle sensor for precise control
- Pulse width modulation control
- Voltage range: 7.4V - 16.8V
- No mechanical angle limit
- Steel gears and CNC aluminium casing
- 5 ball bearings for smooth operation
- 22AWG wires
- Genuine Reefs RC product

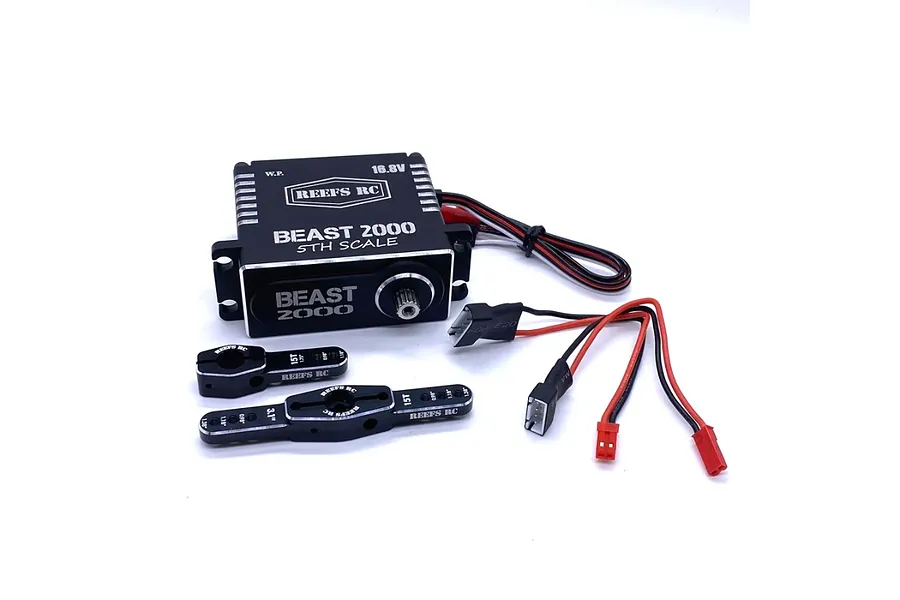

In the box
- 1x Reefs RC Beast 2000 1/5th Scale Servo
- 1x Reefs RC Single Horn
- 1x Reefs RC Double Horn
- 1x 3S & 4S Connector
- 1x Servo Horn Screw 3.5x8mm
- 3x 3x16mm Cap Head Screws for end of horns
- 4x 2mm Horn Clamping Cap Head Screws
Specifications
| Torque(10.0V) | 72.0 kg-cm (1000 oz-in) |
|---|---|
| Torque(11.1V) | 90.0 kg-cm (1250 oz-in) |
| Torque(12.0V) | 104.4 kg-cm (1450 oz-in) |
| Torque(16.8V) | 144.0 kg-cm (2000 oz-in) |
| Speed | 0.10 sec (10.0V), 0.11 sec (11.1V), 0.10 sec (12.0V), 0.09 sec (14.4V), 0.08 sec (16.0V) |
| Operating Voltage | 7.4V - 16.8V |
| Weight | 285g (10oz) |
| Bearing Type | 5 Ball Bearings |
| Motor Type | Brushless Motor |
| Gear Type | Steel Gears |
| Size | 65.8x30x59mm (2.59x1.18x2.32") |
Servo
| Size | 1/5 |
|---|---|
| Gear Material | Steel |
| Servo Spline Count | 15Tooth |
| Waterproof Casing | Yes |
| Input Voltage Range | 10V, 11V, 12V, 16.8V |
| Case Material | Aluminium |
| Drive Motor Type | Brushless |
| Rotational Degrees | 120° (Normal) |
| 11V Torque kg/cm | 90 |
| 11V Sec/60 Degrees | 0.10 |
| 12V Torque kg/cm | 104 |
| 12V Sec/60 Degrees | 0.9 |
| Signal Type | Digital |
