Power HD T70-12V Standard 75KG 12V Direct Power Brushless Metal Geared Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

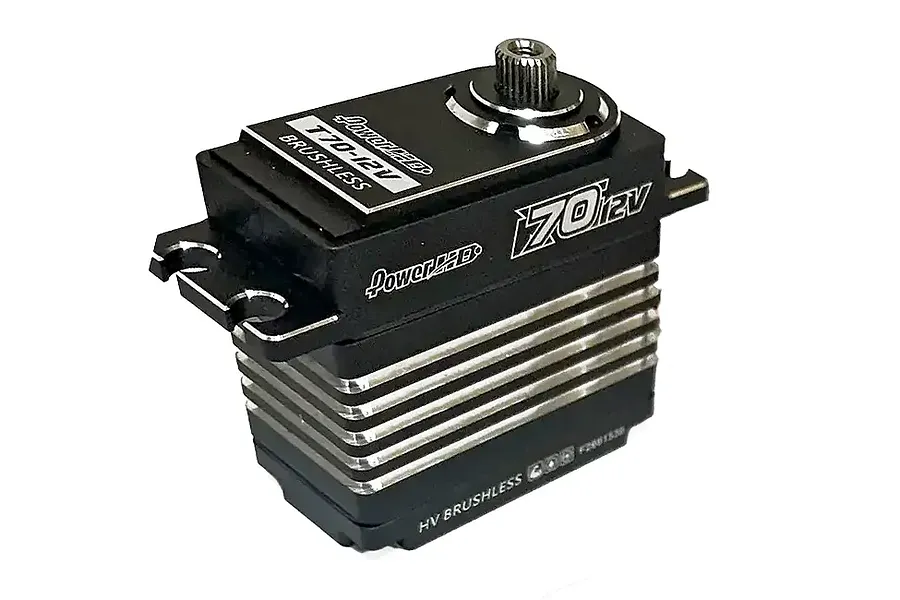

The Power HD T70 High Voltage Servo feature all-aluminium housings, with high-power brushless motor as the core power, offering amazing torque output. American imported ST32-bit MCU control chip ensure superior servo performance. The T70 is ideal for large truggy, rock crawler and 1/5th scale cars.
If you need something with a little less torque, the T50 is ideal for 1/8th nitro off-road.- Total Height (A) = 43.5mm
- Body Width (B) = 41mm
- Below Mount (C) = 27.5mm
- Above Mount (D) = 16.0mm
- Total Length (E) = 54.0mm
- Total Width (F) = 20mm
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

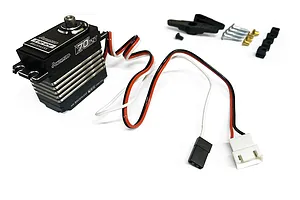

- The PowerHD servo is equipped with a split servo lead. This includes a JST-PH 3-pin connector (in black) that carries a single signal wire (in white), and a power lead composed of a red/black wire that connects to a JST-PH 4-pin male connector (in white).
| Servo | |
|---|---|
| Size: | Standard |

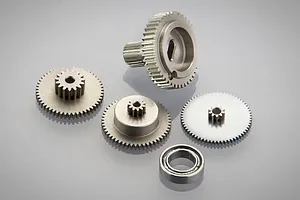

| Gear Material: | Steel |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Input Voltage Range: | 8.4V, 11V, 12V |
| Drive Motor Type: | Brushless |
| Case Material: | Aluminium |
| Rotational Degrees: | 120o (Normal) |
| Total Height: | 43.5mm |
| Body Length: | 41mm |
| Bottom to Under Mount: | 27.5mm |
| Top to Under Mount: | 16mm |
| Total Length: | 54mm |
| Total Width: | 20mm |
| 8.4V Torque kg/cm: | 50 |
| 12V Torque kg/cm: | |
| 8.4V Sec/60 Degrees: | 0.18 |
| 12V Sec/60 Degrees: | |
