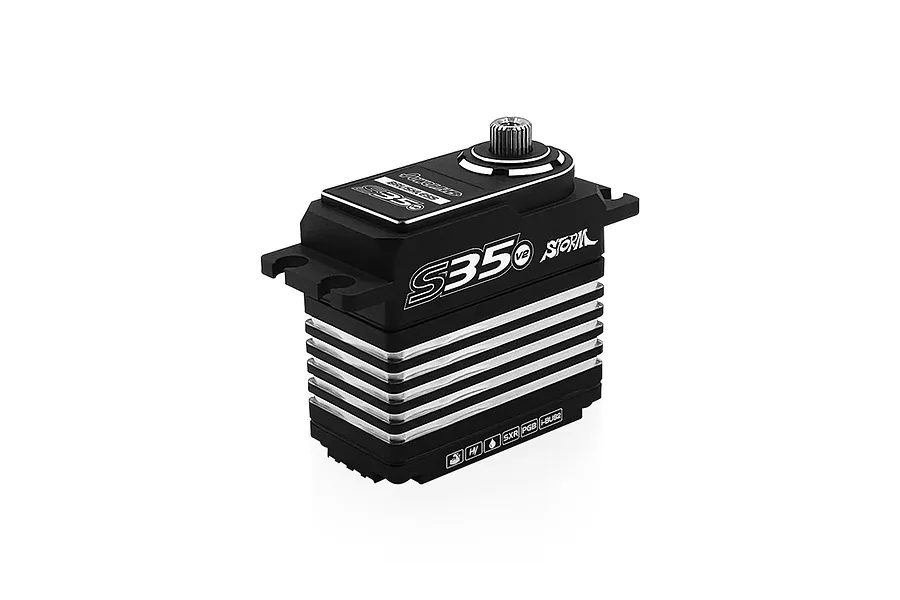

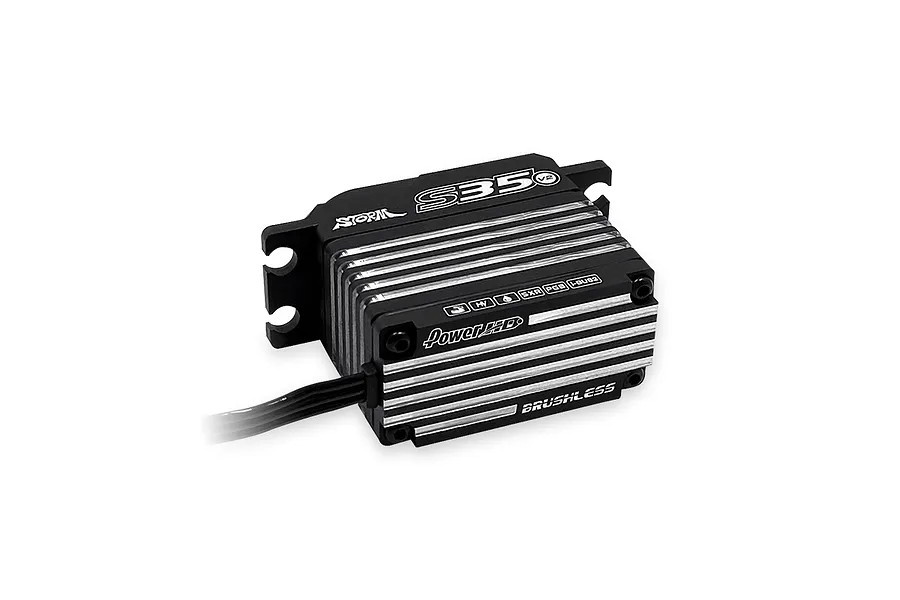

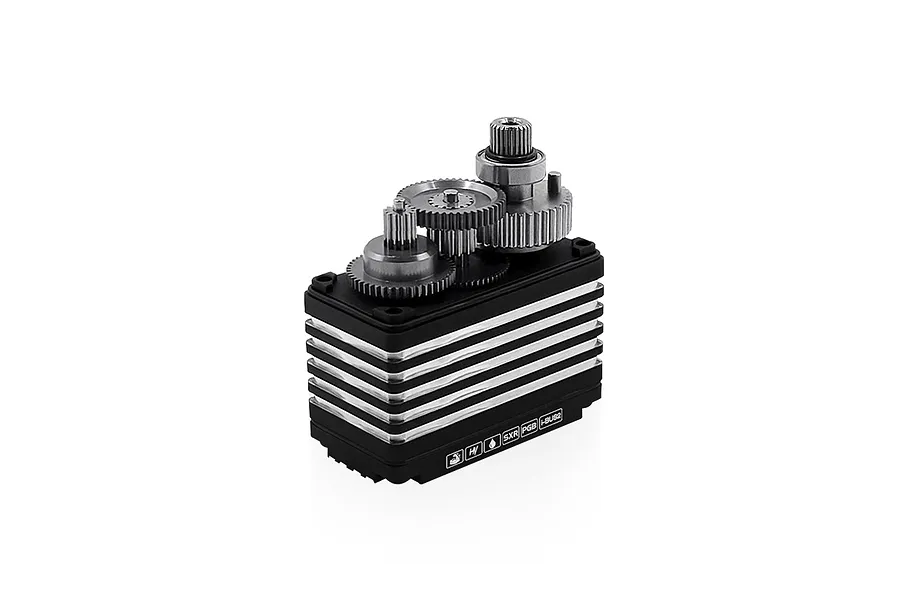

Power HD S35 V2 Standard 45kg 8.4V HV Brushless Metal Geared Servo

  • Brushless

Part no. S35-V2

Sold outWrite a review
1 / 3
1 / 3

$199.99

or 4 fortnightly payments of $50.00 with afterpay

In stock now: similar

Specifications

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialTitanium & Steel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range7.4V, 8.4V, 6V
Case MaterialAluminium
Height (A)44.4mm
Body Length (B)40.5mm
Bottom to Under Mount (C)28.7mm
Top to Under Mount (D)9.7mm
Length (E)54.2mm
Width (F)20mm
Drive Motor TypeBrushless
Rotational Degrees180°
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline29
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.115
7.4V Torque kg/cm35
7.4V Sec/60 Degrees0.098
8.4V Torque kg/cm45
8.4V Sec/60 Degrees0.085
Signal TypeDigital
