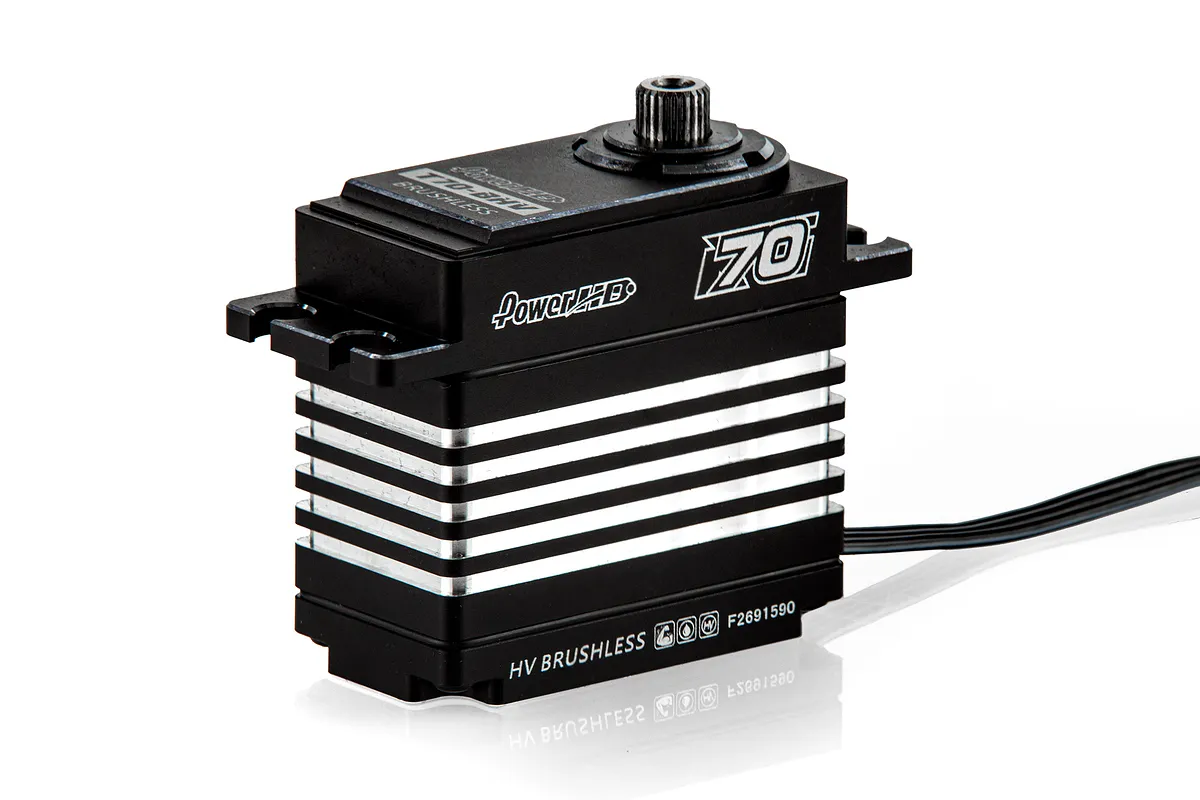

Power HD T70 70KG 8.4V Brushless Metal Geared Standard Servo

Videos

Power HD T70 70KG 8.4V Brushless Metal Geared Standard Servo

Brand: Power HD | SKU: T70-BHV

3+ in stock

write a review

$182.01

Pay later with

We'll send it today

When ordered within the next hms

Shop replacement & upgrade parts for this model

Shop Parts

Recommended Products

Power HD Black Aluminium 25T Servo Horn

3 reviews

$8.62

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The Power HD T70 High Voltage Servo feature all-aluminium housings, with high-power brushless motor as the core power, offering amazing torque output. American imported ST32-bit MCU control chip ensure superior servo performance. The T70 is ideal for large truggy, rock crawler and 1/5th scale cars.

If you need something with a little less torque, the T50 is ideal for 1/8th nitro off-road.

Power HD Brushless Servo Specifications

Total Height (A) = 43.5mm
Body Width (B) = 41mm
Below Mount (C) = 27.5mm
Above Mount (D) = 16.0mm
Total Length (E) = 54.0mm
Total Width (F) = 20mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Specifications

Servo

Total Width: 20mm
Servo Spline Count: 25Tooth
Top to Under Mount: 16.0mm
Total Length: 54.0mm
Body Length: 41mm
Bottom to Under Mount: 27.5mm
Rotational Degrees: 120° (Normal)
Total Height: 43.5mm
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 70
Gear Material: Steel
Waterproof Casing: No
Drive Motor Type: Brushless
Size Conventionally sized servo names: Standard
