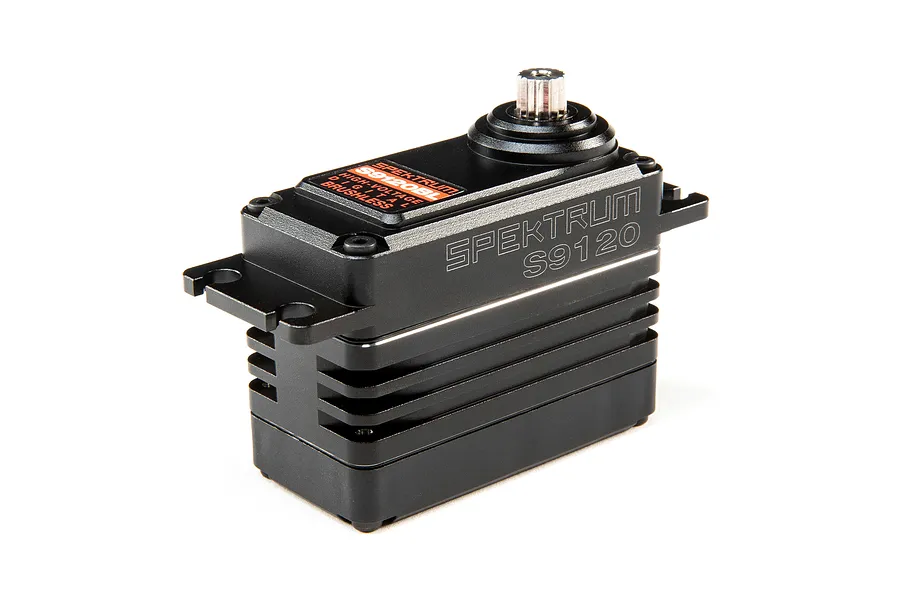

Spektrum S9120BL 1/5 105kg 8.4V Brushless Metal Geared Servo

Brand: Spektrum | SKU: SPMSS9120BL

1 in stock

write a review

$464.05

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

We'll send it today

When ordered within the next hms

Loading compatibility information...

Description

No description

Specifications

Servo

Total Length: 83mm
Total Width: 30mm
Drive Motor Type: Brushless
Top to Under Mount: 22mm
8.4V Sec/60 Degrees: 0.20
Input Voltage Range: 7.4VV, 6VV, 8.4VV
Rotational Degrees: 120° (Normal)
8.4V Torque kg/cm: 104.66
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 84.47
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 15Tooth
6V Sec/60 Degrees Seconds per 60 degrees of rotation
7.4V Torque kg/cm: 87.06
Total Height: 58.2mm
7.4V Sec/60 Degrees
Body Length: 62.6mm
Bottom to Under Mount: 33.2mm
Size Conventionally sized servo names: 1/5
