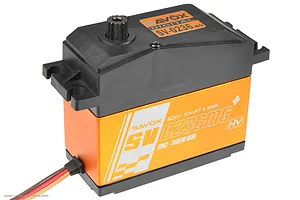

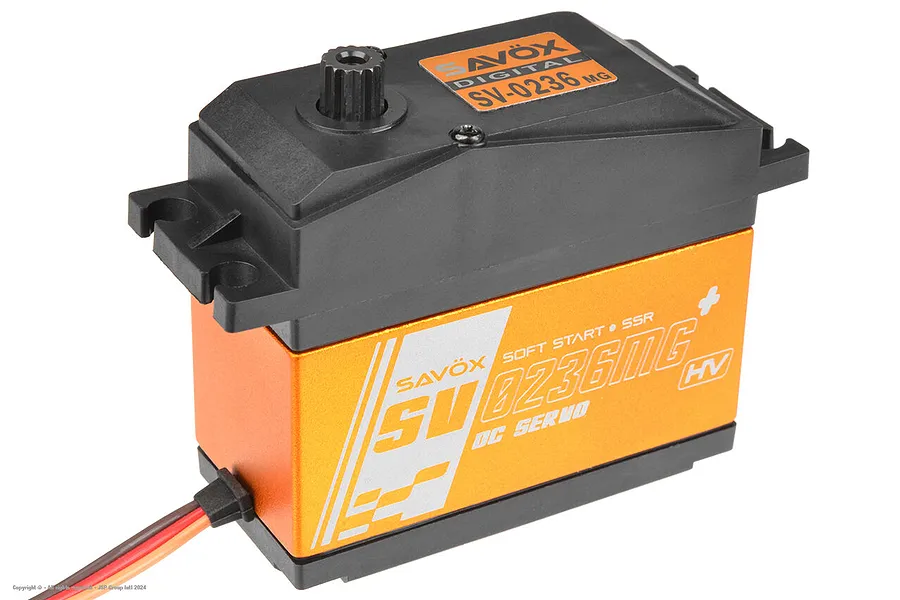

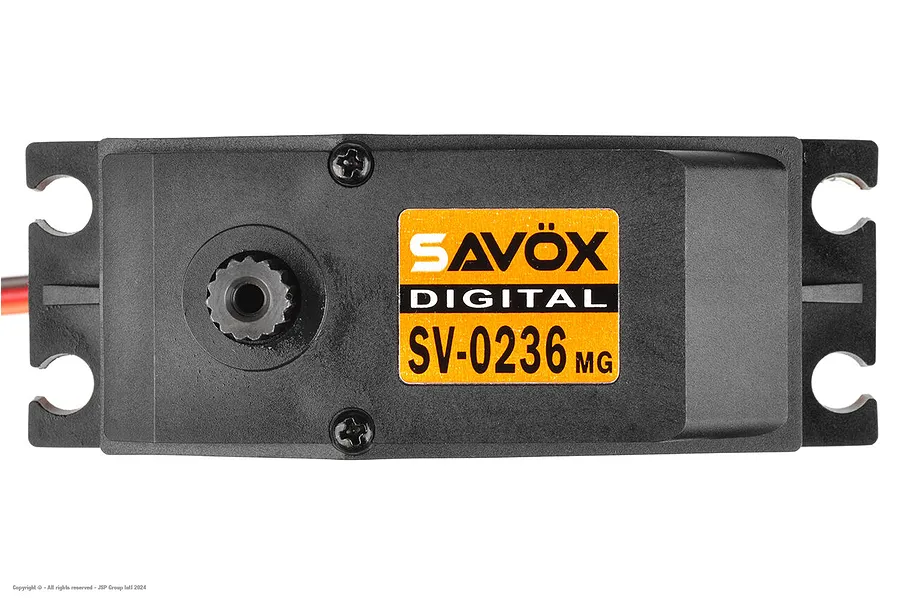

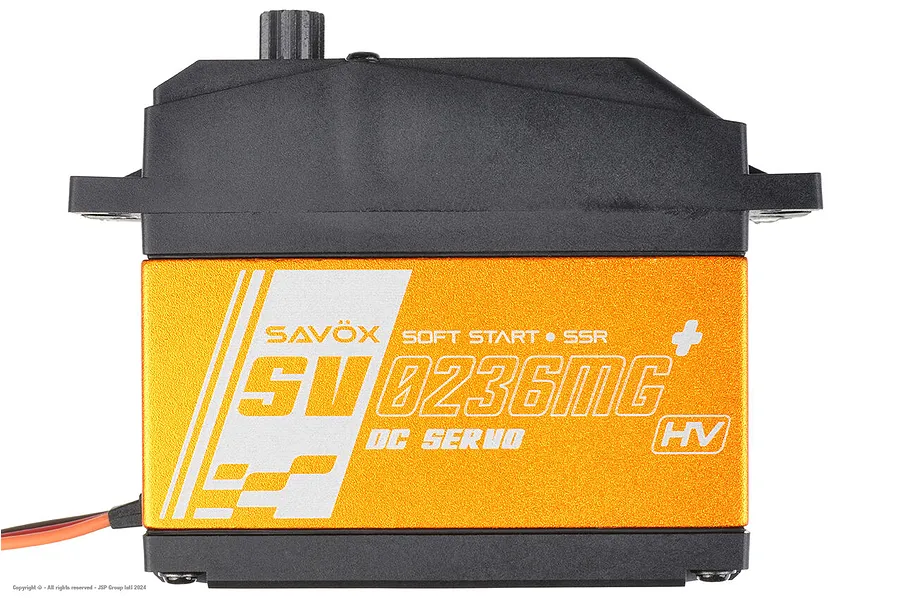

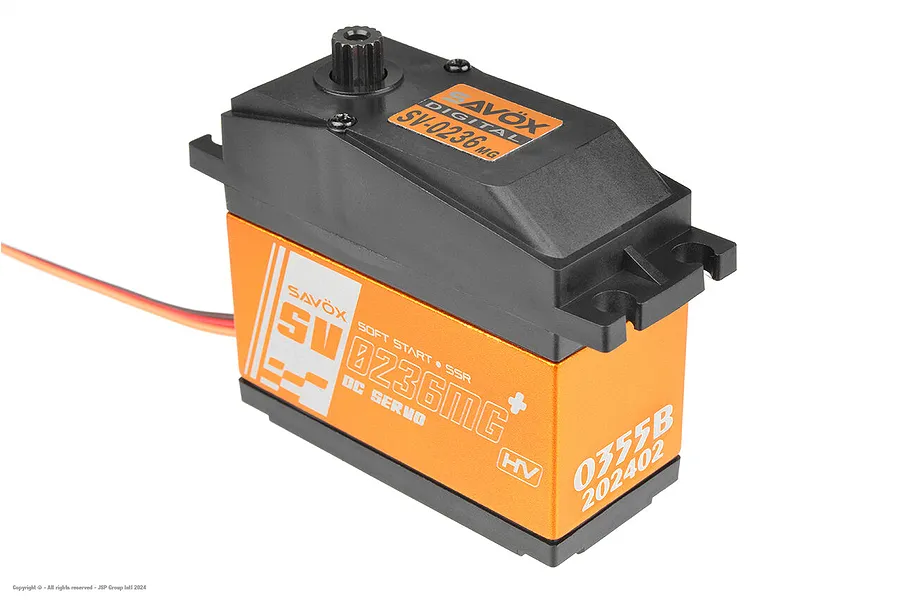

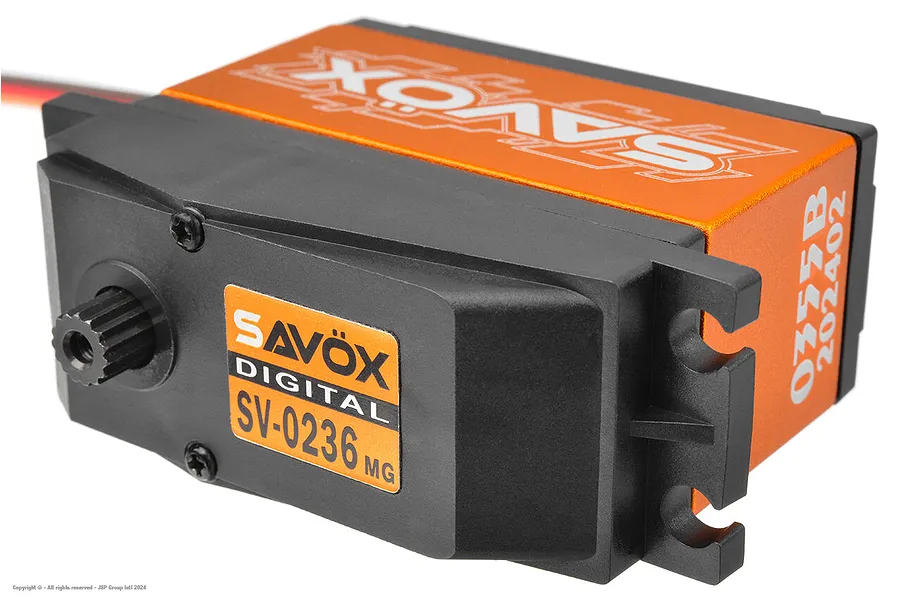

Savox Aluminium SV-0236MG Plus 1/5 40kg 7.4V Metal Geared Servo - Orange
Savox Aluminium SV-0236MG Plus 1/5 40kg 7.4V Metal Geared Servo - Orange
Brand:
Savox
|
MPN: SV-0236MG-PLUS
$124.77
or 4 fortnightly payments of $31.19 with
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Compatible with
3 products.
See Compatibility
Description
No description
Specifications
Servo
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Metal
-
Servo Spline Count
- 15Tooth
-
Waterproof Casing
- No
-
Input Voltage Range
- 6V, 7.4V
-
Case Material
- Aluminium
-
Height (A)
- 63.7mm
-
Body Length (B)
- 81.8mm
-
Bottom to Under Mount (C)
- 40.4mm
-
Top to Under Mount (D)
- 23.3mm
-
Length (E)
- 65.8mm
-
Width (F)
- 30mm
-
Drive Motor Type
- Coreless
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 30
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.21
-
7.4V Torque kg/cm
- 40
-
7.4V Sec/60 Degrees
- 0.17
-
Signal Type
- Digital
