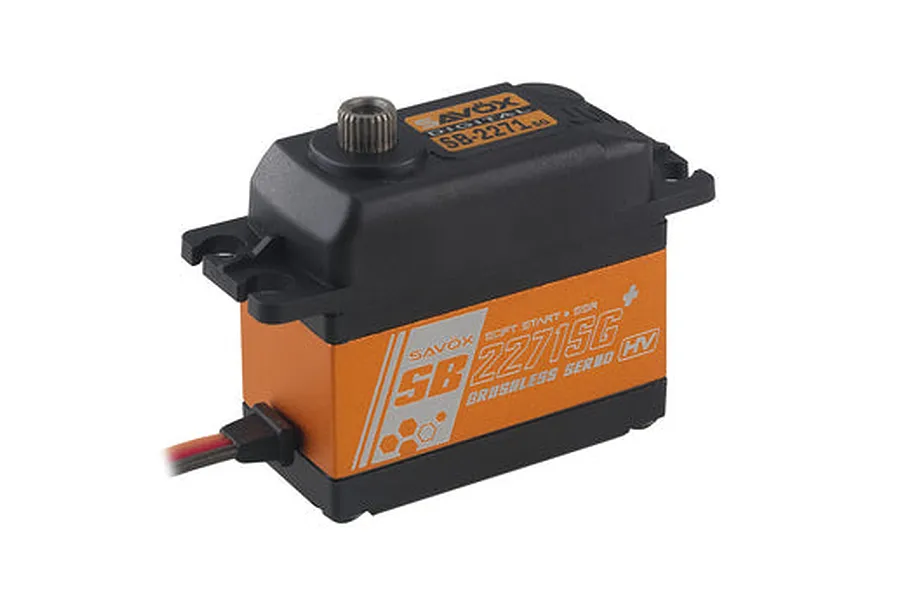

Savox Aluminium SB-2271SG Plus Standard 20kg 7.4V Brushless Metal Geared Servo - Orange
Savox Aluminium SB-2271SG Plus Standard 20kg 7.4V Brushless Metal Geared Servo - Orange
Brand:
Savox
|
MPN: SB-2271SG-PLUS
TBA
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Related Products
Description
No description
Specifications
Servo
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Steel
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 15
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.085
-
7.4V Torque kg/cm
- 20
-
7.4V Sec/60 Degrees
- 0.065
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
