Description

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

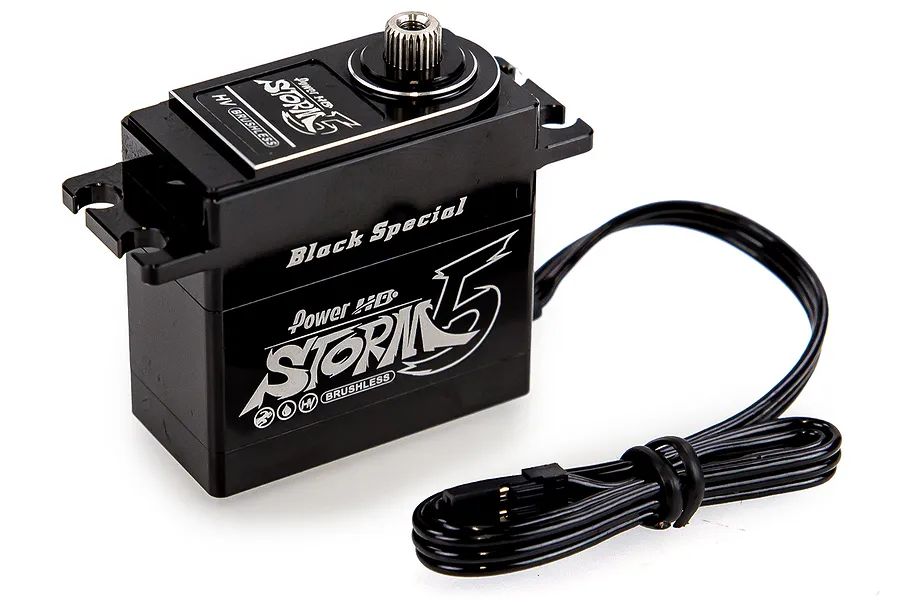

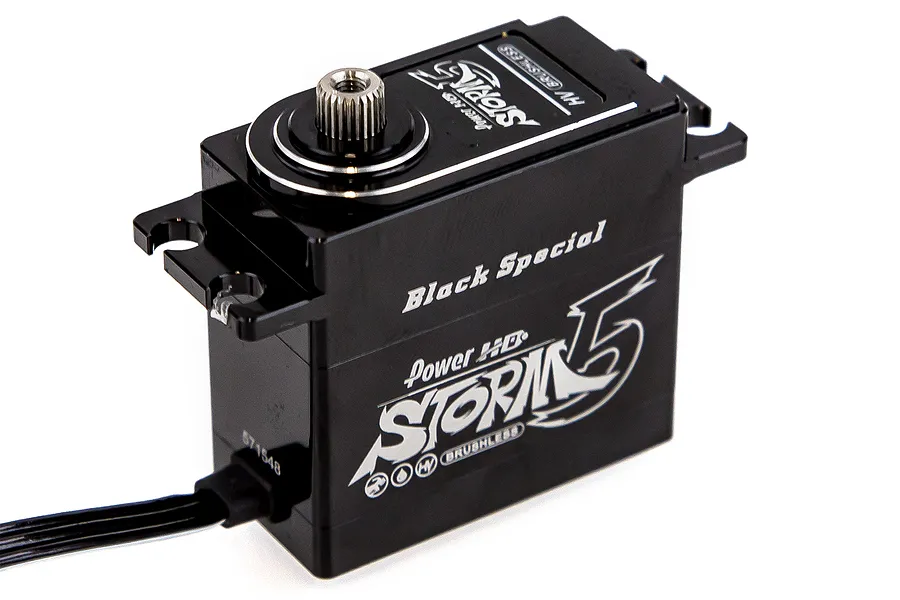

Power HD Storm-5 Brushless Servo Specifications

Total Height (A) = 44.2mm
Body Width (B) = 40mm
Below Mount (C) = 28mm
Above Mount (D) = 16.2mm
Total Length (E) = 20mm
Total Width (F) = 54.1mm

?

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications

Servo

Height (A): 44.2mm
Body Length (B): 40mm
Bottom to Under Mount (C): 28mm
Top to Under Mount (D): 16.2mm
Length (E): 20mm
Width (F): 54.1mm
Size Conventionally sized servo names: Standard
Gear Material: Titanium, Steel
Waterproof Casing: No
Servo Spline Count: 25Tooth
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 18
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.085
Signal Type: Digital
Drive Motor Type: Brushless
Case Material: Metal
Rotational Degrees: 120° (Normal)
