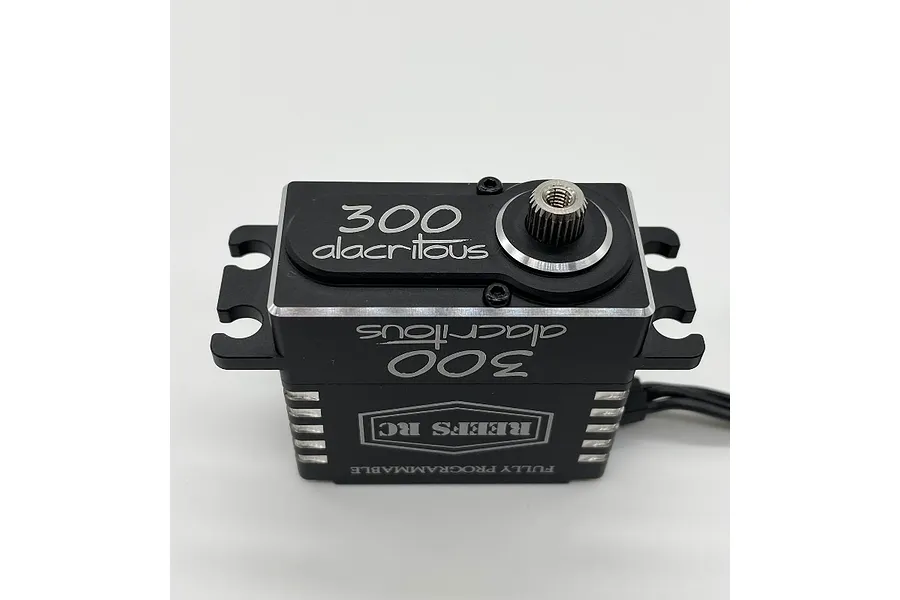

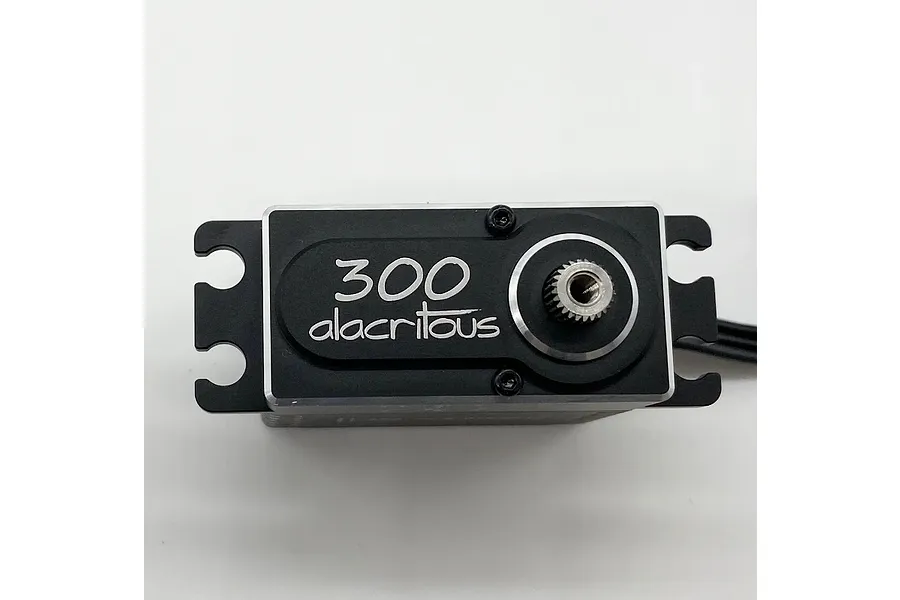

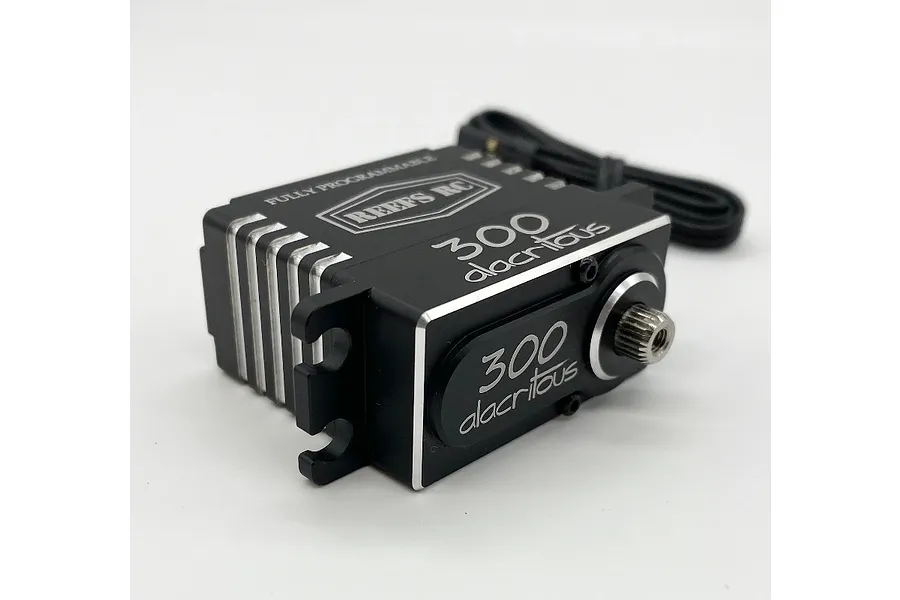

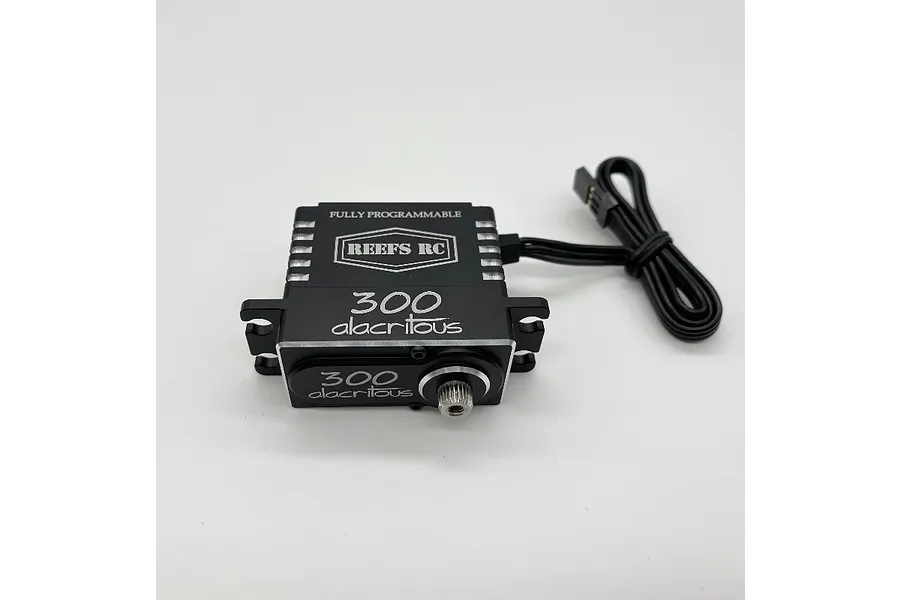

Reefs RC 300 Alacritous 22kg 8.4V Brushless Metal Geared Servo - Black
Reefs RC 300 Alacritous 22kg 8.4V Brushless Metal Geared Servo - Black
Brand:
Reefs RC
|
SKU: REEFS74
$219.99
Pay later with
Want more than 1?
We'll send it today
When ordered within the next
hms
What does Next Dispatch mean?
Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Description
No description
Specifications
Servo
-
Height (A)
- 37mm
-
Length (E)
- 40mm
-
Width (F)
- 20mm
-
Gear Material
- Steel
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 7.4V, 8.4V, 6V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 15
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.07
-
7.4V Torque kg/cm
- 19.5
-
7.4V Sec/60 Degrees
- 0.06
-
8.4V Torque kg/cm
- 22
-
8.4V Sec/60 Degrees
- 0.05
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
