Reefs RC Aluminium 299LP Low Profile 23kg 8.4V Coreless Metal Gear Winch Servo with Spool - Black

Part no. REEFS59

2 in stockNo reviews yet
1 / 6
1 / 6

$199.99

or 4 fortnightly payments of $50.00 with afterpay or PayPal, or zip

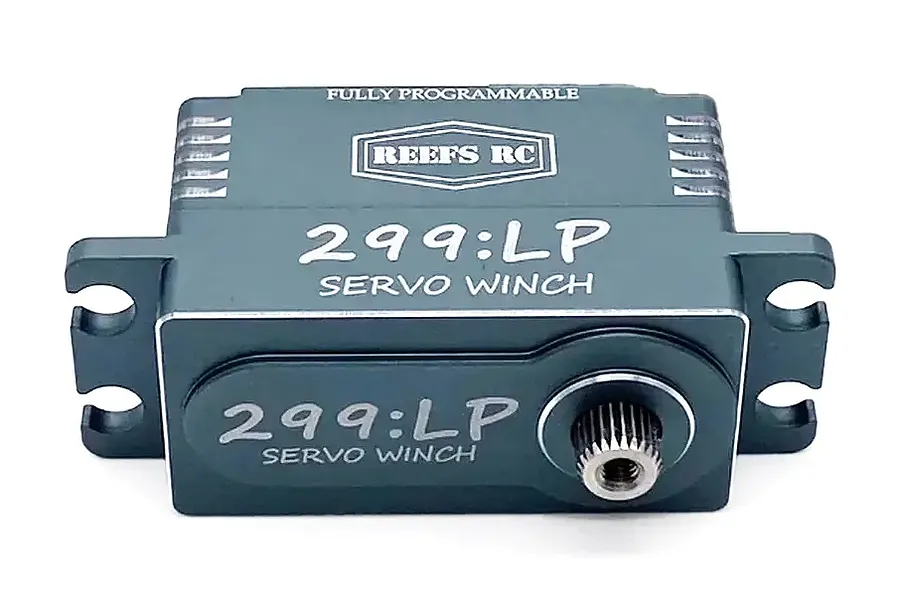

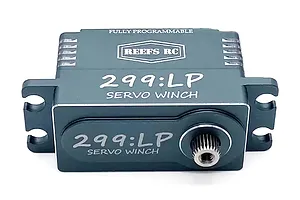

Reefs RC 299:LP Servo Winch 23.0kg RC Servo: High torque, high speed, and waterproof.

  • High torque of 23.0 kg-cm
  • Submarine waterproof with precision metal gears

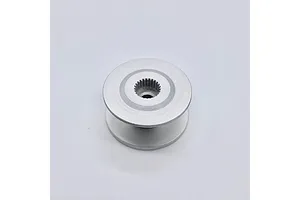

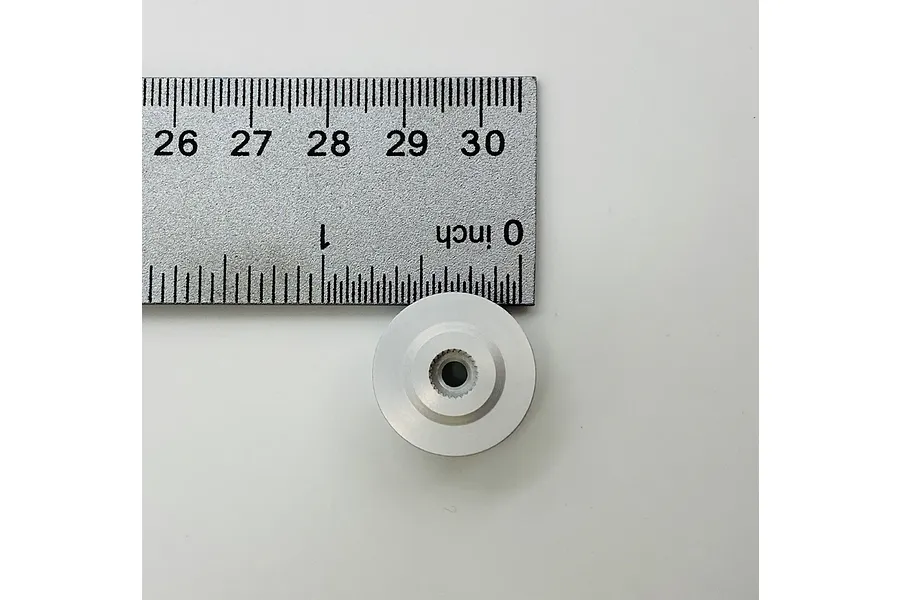

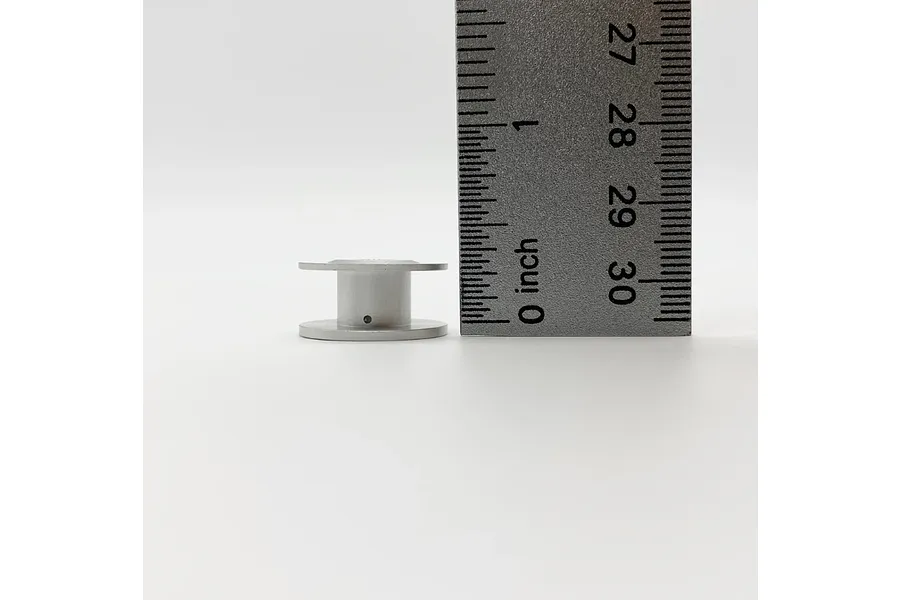

  • Includes 7075 LowPro CNC machined spool with clear finish
  • Durable steel gears and CNC aluminium casing
  • Compact size suitable for comp and scale builds

  • 2 in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The Reefs RC 299:LP Servo Winch is a top-tier choice for RC enthusiasts seeking high performance and reliability in a compact form. This high torque brushless servo winch boasts impressive torque and speed, making it ideal for demanding comp and scale builds. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance across various conditions.

Designed with durability in mind, the 299:LP features steel gears and a CNC aluminium casing, ensuring it can withstand rigorous use. The submarine waterproof design provides excellent protection against moisture, making it suitable for various environments. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC 299:LP Servo Winch is a reliable and powerful addition to your RC setup.

Note

BEC is not required but recommended for maximum performance

Does not fit in the Gen8 mount

Consult the manual for waterproof standards and maintenance

Features

  • High torque and speed brushless servo winch
  • Strong torque @ 23.0 kg-cm (320 oz-in) and fast speed of 0.057 sec @ 8.4V
  • Submarine waterproof with precision metal gears
  • Includes 7075 LowPro CNC machined spool with clear finish
  • 5ft silicone coated steel braided line with scale recovery hook
  • Pulse width modulation control
  • Voltage range: 4.8V - 8.4V
  • No mechanical angle limit
  • Steel gears and CNC aluminium casing
  • 2 ball bearings for smooth operation
  • 22AWG wires
  • Genuine Reefs RC product

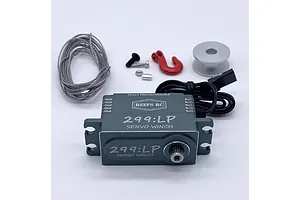

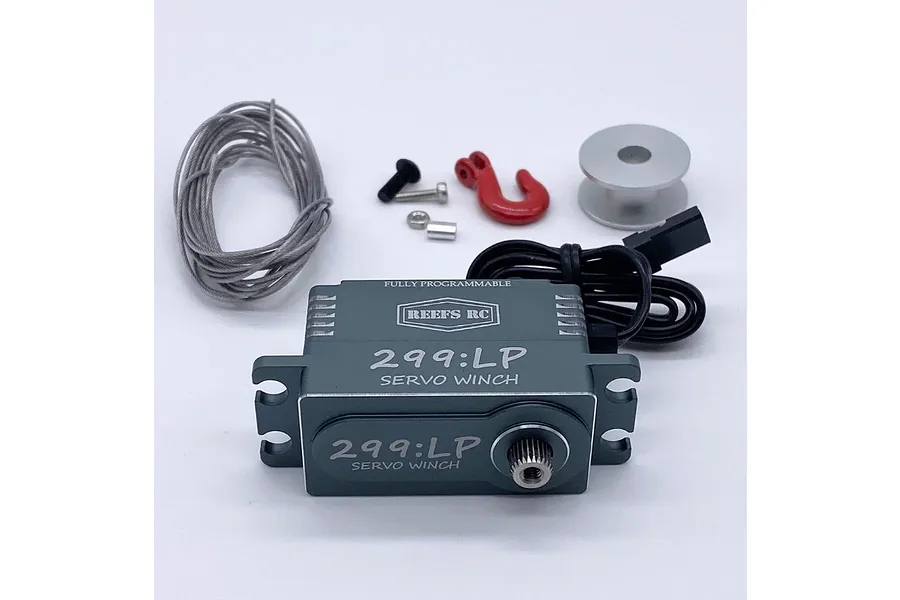

In the box

  • 1x Reefs RC 299:LP Servo Winch

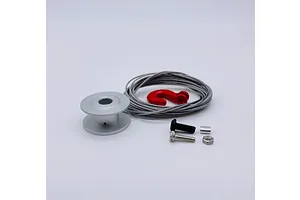

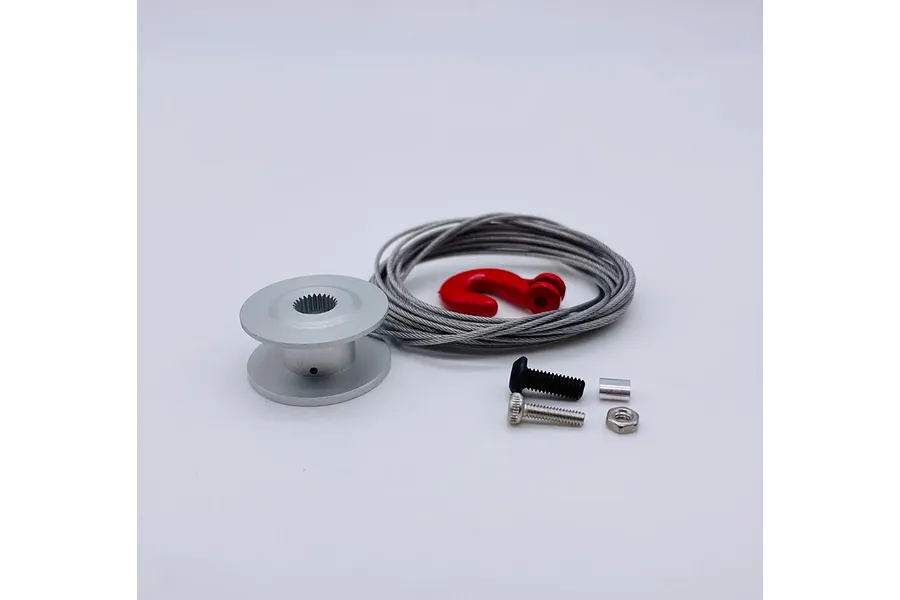

  • 1x 7075 LowPro CNC Machined Spool with Clear Finish
  • 1x 5ft Silicone Coated Steel Braided Line
  • 1x Scale Recovery Hook

Specifications

Torque(6.0V)20.2 kg-cm (280 oz-in)
Torque(7.4V)21.6 kg-cm (300 oz-in)
Torque(8.4V)23.0 kg-cm (320 oz-in)
Speed0.07 sec (6.0V), 0.06 sec (7.4V), 0.057 sec (8.4V)
Operating Voltage4.8V - 8.4V
Weight57g (2.0oz)
Bearing Type2 Ball Bearings
Motor TypeBrushless Motor
Gear TypeSteel Gears
Size40.8x20.2x25.4mm (1.60x0.79x1.00")

Servo

SizeConventionally sized servo namesLow Profile
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Drive Motor TypeCoreless
Rotational Degrees360°
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline20
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.07
7.4V Torque kg/cm21.6
7.4V Sec/60 Degrees0.06
8.4V Torque kg/cm23
8.4V Sec/60 Degrees0.057
Signal TypeDigital
