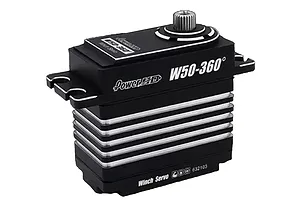

Power HD W50-360 50KG 8.4V Brushless Metal Geared Winch Servo
The Power HD W50 High Voltage Servo features all-aluminium housings, with a high-power brushless motor as the core power, offering amazing torque output. An American-imported ST 32-bit MCU control chip ensures superior servo performance.
Operating Voltage | 6.0v | 7.4v | 8.4v |
Torque | 35.0 kg-cm / (486.1 oz/in) | 45.0 kg-cm / (625.0 oz/in) | 50.0 kg-cm / (694.4 oz/in) |
Speed | 1.3 sec | 1.0 sec | 0.9 sec |
Bearing Type | Ball Bearing x 2 | ||
Motor Type | Brushless Motor | ||

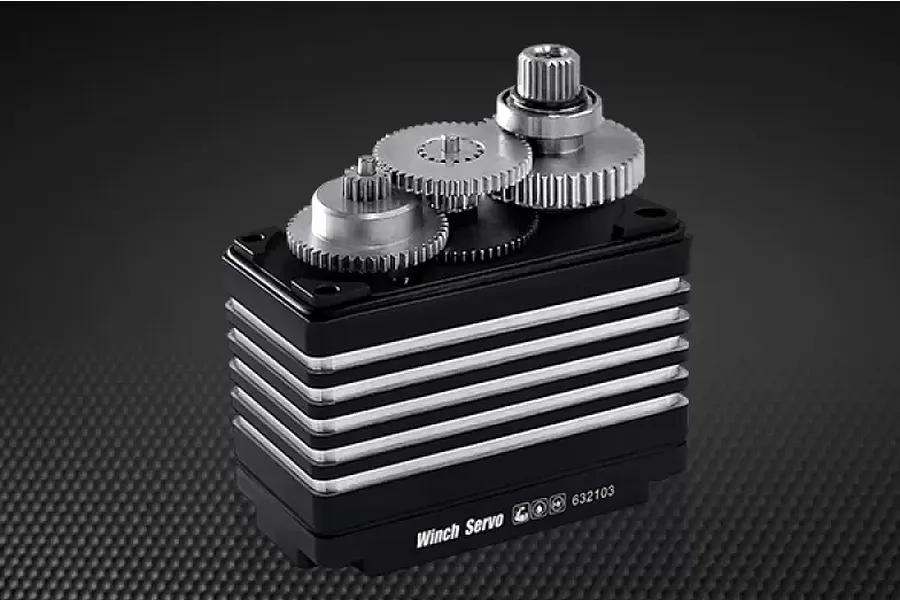

Gear Type | Steel | ||
Working frequency | 1520?s / 333hz | ||
Operating temperature | -20?~60? | ||
Weight | 80 g (2.82 oz) | ||
Size | 40.8 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in) | ||
- Total Height (A) = 43.6mm
- Body Width (B) = 40.8mm
- Below Mount (C) = 27.5mm
- Above Mount (D) = 16.1mm
- Total Length (E) = 53.7mm
- Total Width (F) = 20.5mm
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver, smoothing the current delivery. However, in some cases, you may need to install an external BEC.
-
Operating Voltage
- 6.0V / 7.4V / 8.4V
-
Torque
- 35.0 kg-cm (486.1 oz/in) / 45.0 kg-cm (625.0 oz/in) / 50.0 kg-cm (694.4 oz/in)
-
Speed
- 1.3 sec / 1.0 sec / 0.9 sec
-
Bearing Type
- Ball Bearing x 2
-
Motor Type
- Brushless Motor
-
Gear Type
- Steel
-
Working Frequency
- 1520μs / 333Hz
-
Operating Temperature
- -20° ~ 60°
-
Weight
- 80 g (2.82 oz)
-
Size
- 40.8 x 20.5 x 38.7 mm (1.60 x 0.81 x 1.52 in)
-
Total Height (A)
- 43.6mm
-
Body Width (B)
- 40.8mm
-
Below Mount (C)
- 27.5mm
-
Above Mount (D)
- 16.1mm
-
Total Length (E)
- 53.7mm
-
Total Width (F)
- 20.5mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Steel
-
Servo Spline Count
- 25Tooth
-
Waterproof Casing
- Yes
-
Input Voltage Range
- 6V, 7.4V, 8.4V
-
Case Material
- Aluminium
-
Height (A)
- 43.6mm
-
Body Length (B)
- 40.8mm
-
Bottom to Under Mount (C)
- 27.5mm
-
Top to Under Mount (D)
- 16.1mm
-
Length (E)
- 53.7mm
-
Width (F)
- 20.5mm
-
Drive Motor Type
- Coreless
-
Rotational Degrees
- 360°
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 35
-
7.4V Torque kg/cm
- 45
-
8.4V Torque kg/cm
- 50
