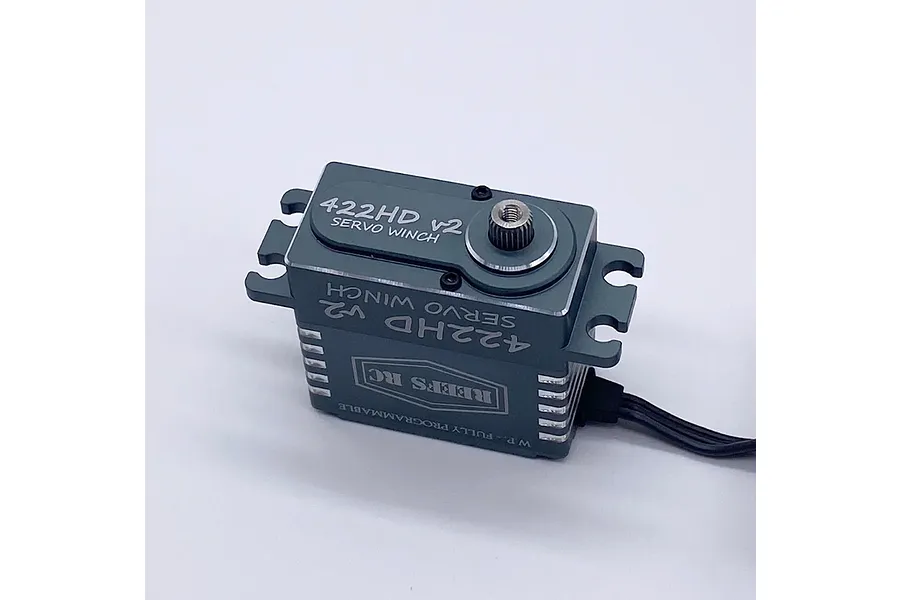

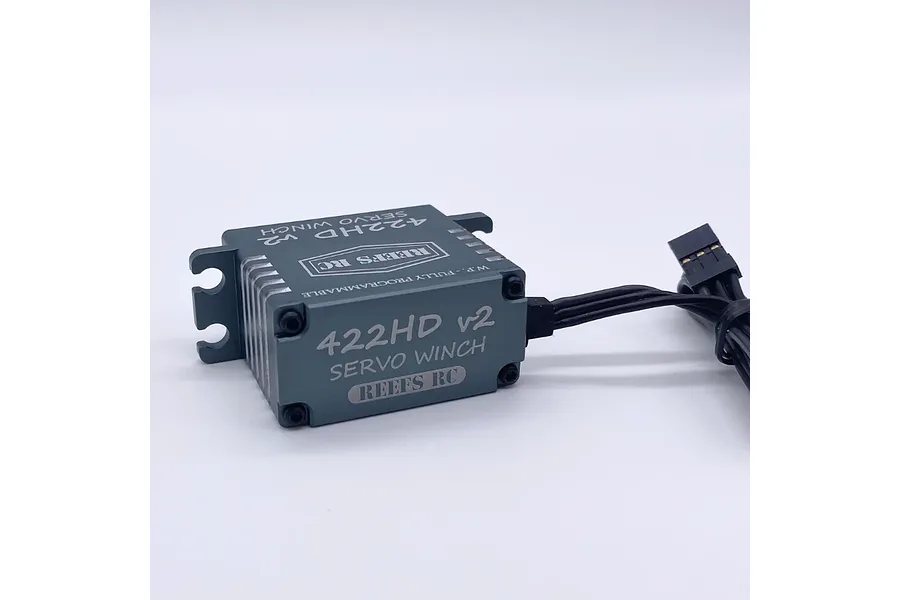

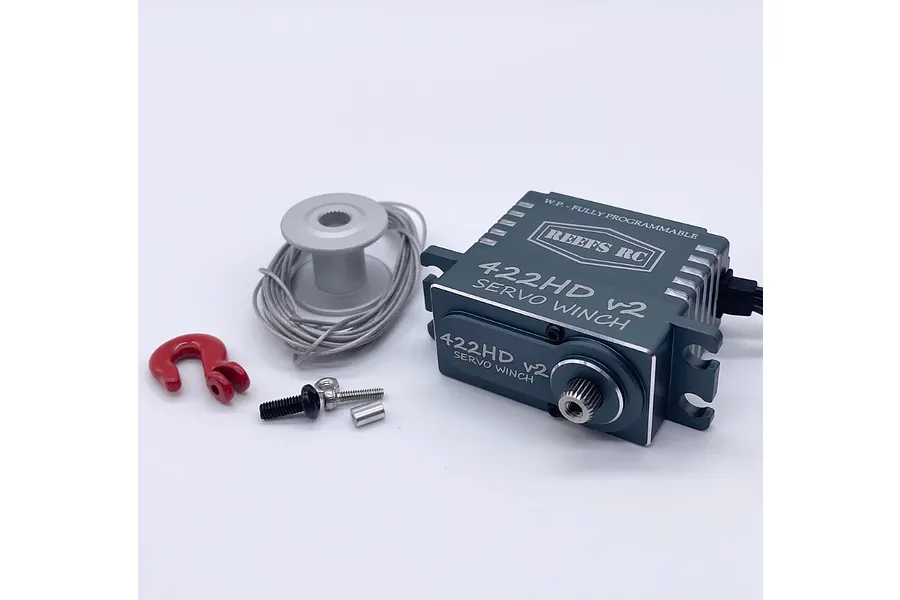

Reefs RC Aluminium 422HD V2 Standard 35kg 8.4V Coreless Metal Gear Winch Servo with Spool - Black
Part no. REEFS43
Sold outNo reviews yet
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
In stock now: similar
- Reedy Power Black Aluminium RC2312 Standard 23.2kg 7.4v Coreless Metal Geared HV Servo
Now $170.52
was $227.36Save $56
Specifications
Servo
| Size | Standard |
|---|---|
| Gear Material | Steel |
| Servo Spline Count | 25Tooth |
| Waterproof Casing | Yes |
| Input Voltage Range | 6V, 7.4V, 8.4V |
| Case Material | Aluminium |

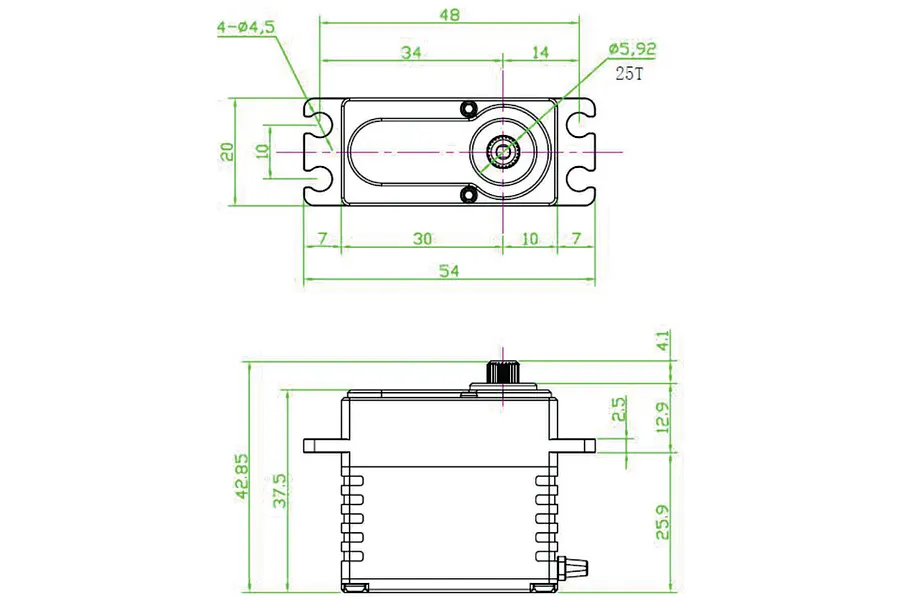

| Height (A) | 43mm |
| Body Length (B) | 40.05mm |
| Bottom to Under Mount (C) | 25.58mm |
| Top to Under Mount (D) | 16.25mm |
| Length (E) | 54.12mm |
| Width (F) | 20.44mm |
| Drive Motor Type | Coreless |
| Rotational Degrees | 360° |
| 6V Torque kg/cm | 29 |
| 6V Sec/60 Degrees | 0.11 |
| 7.4V Torque kg/cm | 32 |
| 7.4V Sec/60 Degrees | 0.10 |
| 8.4V Torque kg/cm | 35 |
| 8.4V Sec/60 Degrees | 0.09 |
| Signal Type | Digital |
