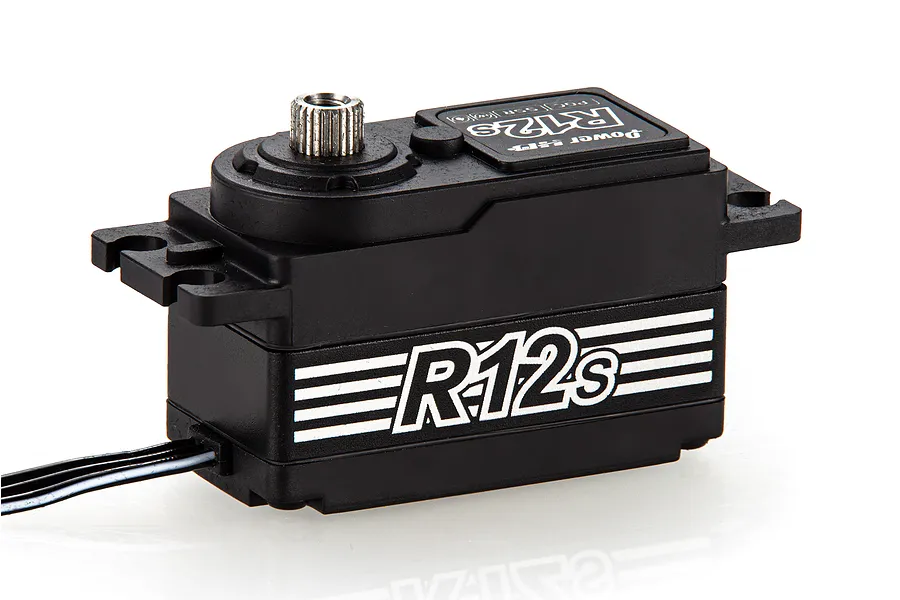

Power HD R12-S 12kg 7.4v Low Profile Coreless Metal Geared Servo
Videos
Power HD R12-S 12kg 7.4v Low Profile Coreless Metal Geared Servo
Brand:
Power HD
|
MPN: R12-S
$95.96
or 4 fortnightly payments of $23.99 with
Power HD R12-S 12kg low-profile coreless servo with metal gears, dual ball bearings. Supports 6.0v and 7.4v.
- 12kg torque at 7.4v
- Low-profile coreless motor
- Steel metal gears
- Dual ball bearings
- Operating voltage: 6.0v or 7.4v
Pay later with
We'll send it today
When ordered within the next
hms
What does Next Dispatch mean?
Pay before 1:00pm Melbourne time on a dispatch day and your order ships the same day.
This is dispatch time, not delivery time — couriers still take their usual transit days.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Frequently Bought Together
Description
The Power HD R12-S is a low-profile coreless motor servo with metal gears and dual ball bearings, available for 6.0v and 7.4v operation.
Videos
Specifications
-
Total Height (A)
- 31mm
-
Body Width (B)
- 41mm
-
Below Mount (C)
- 17mm
-
Above Mount (D)
- 13mm
-
Total Length (E)
- 54mm
-
Total Width (F)
- 20mm
-
Operating Voltage
- 6.0v / 7.4v
-
Torque
- 9.0 kg-cm (125.0 oz/in) at 6.0v / 12.0 kg-cm (166.6 oz/in) at 7.4v
-
Speed
- 0.07 sec at 6.0v / 0.06 sec at 7.4v
-
Bearing Type
- Ball Bearing x 2
-
Motor Type
- Coreless Motor
-
Gear Type
- Steel
-
Working Frequency
- 1520µs / 333hz
-
Operating Temperature
- -20°~60°
-
Weight
- 83 g (2.93 oz)
-
Size
- 41.0 x 20.0 x 26.4 mm (1.61 x 0.79 x 1.04 in)
Dimensions
Performance
Servo
-
Height (A)
- 31mm
-
Body Length (B)
- 41mm
-
Bottom to Under Mount (C)
- 17mm
-
Top to Under Mount (D)
- 13mm
-
Length (E)
- 54mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Titanium & Steel
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 9
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.07
-
7.4V Torque kg/cm
- 12
-
7.4V Sec/60 Degrees
- 0.06
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
Reviews
(1)
5 out of 5 stars
1 year ago
Kosh
K
Have been using the R12 for the past 8 months in all my Rc cars, great servo for the money
