Team Powers DCS V3 Low Profile 14.5kg 8.4V Coreless Metal Geared Servo
Videos

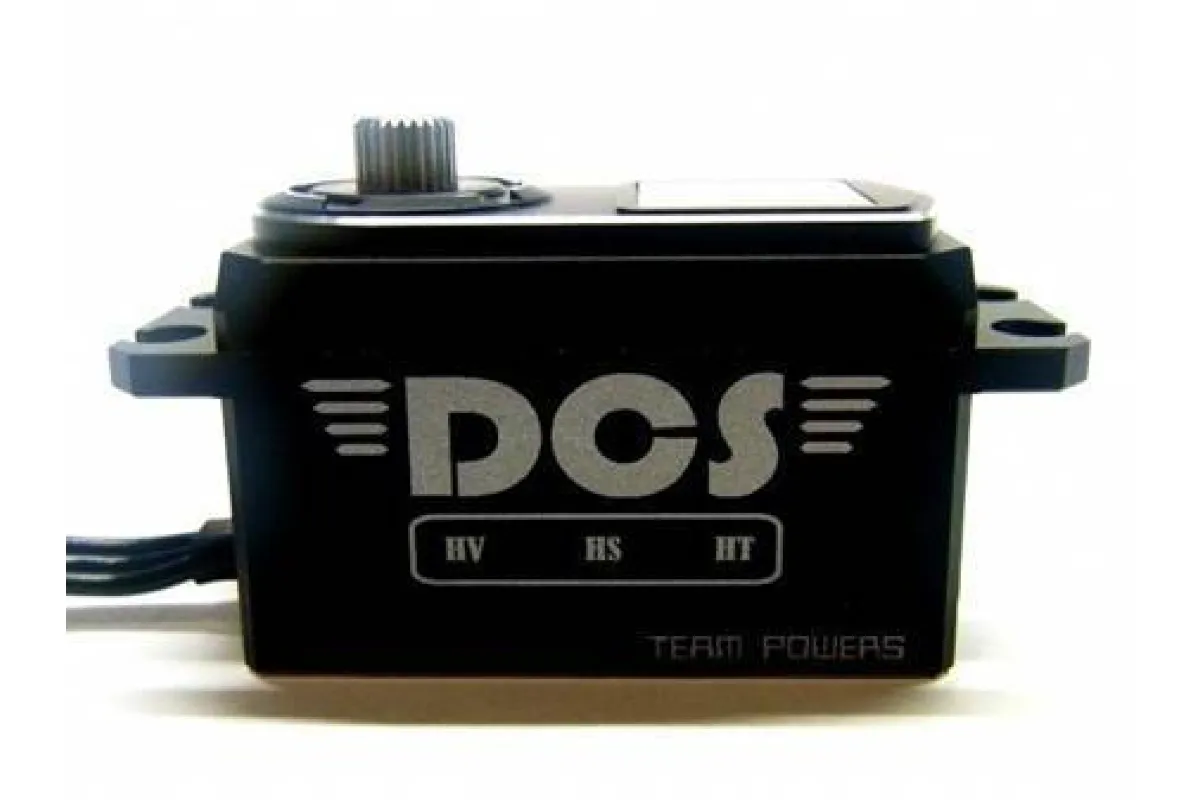

Team Powers DCS V3 Low Profile 14.5kg 8.4V Coreless Metal Geared Servo
Brand:
Team Powers
|
MPN: TP-DS1305LW-V3PG
$149.95
or 4 fortnightly payments of $37.49 with
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Related Products
Futaba HPS-CT501 Low Profile 21kg 7.4V HV Brushless Metal Geared Servo
0 reviews
$275.30
Alternatives
Team Powers Black Aluminium DS1550SR V3 SRS Low Profile 13kg 7.4V Brushless Metal Geared Servo
0 reviews
Now $178.46
Alternatives
Description
The DCS V3 Low Profile Servo delivers exceptional performance with a coreless motor, hybrid titanium/steel gear set, and direct drive system for efficiency. Operating at 4.8V to 8.4V, this lightweight 52g servo offers 14.5kg-cm stall torque and 0.055 sec/60° speed, making it suitable for both racing and bashing applications.
Features
- Coreless motor for high speed and torque with low power and noise
- SSR mode for fastest response speed from transmitter
- Hybrid titanium/steel gear set for durability and smoothness
- Direct drive gear system for efficiency and no binding
- Wide voltage range of 4.8V to 8.4V
- Low profile design for easy fit in any RC car chassis
- Lightweight at 52g
- High torque of 14.5kg-cm at 8.4V
- Fast and precise at 0.055 sec/60° at 8.4V
Included Items
1x DCS V3 Low Profile 14.5kg 8.4V Coreless Metal Geared Servo
Note
Learn how to install a steering servo correctly to increase steering performance and avoid stripping your servo gears.
Videos
Specifications
Servo
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Titanium & Steel
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 4.8V, 6V, 7.4V, 8.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 9.5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.065
-
7.4V Torque kg/cm
- 12.5
-
7.4V Sec/60 Degrees
- 0.06
-
8.4V Torque kg/cm
- 14.5
-
8.4V Sec/60 Degrees
- 0.055
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
