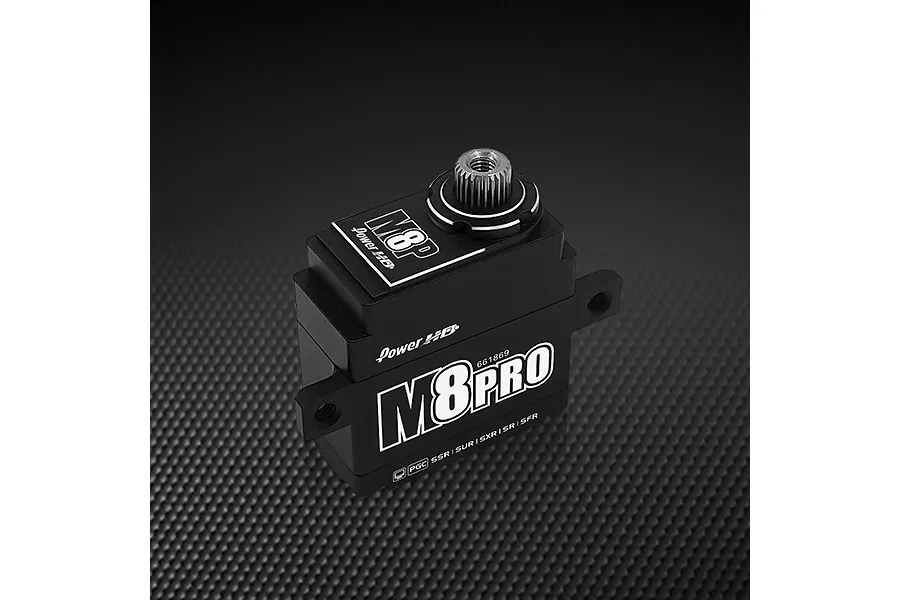

Power HD M8 Pro 8.5kg 8.4V Coreless Servo

Name: Hobbies Direct
Address: Unit 5 80-84 Tucker St, Breakwater, VIC, 3219, AU
Telephone: +61352921101
Price range: $$$

Brand: Power HD | SKU: M8Pro

discontinued

write a review

Recommended Products

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

Power HD Black Aluminium 25T Servo Horn

3 reviews

$8.62

Description

No description

Specifications

Servo

7.4V Torque kg/cm: 7.6
8.4V Torque kg/cm: 8.5
Drive Motor Type: Coreless
Servo Spline Count: 25Tooth
Input Voltage Range: 7.4VV, 4.8VV, 6VV, 8.4VV
4.8V Sec/60 Degrees: 0.10
Rotational Degrees: 120° (Normal)
Signal Type: Digital
Case Material: Metal
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 6.3

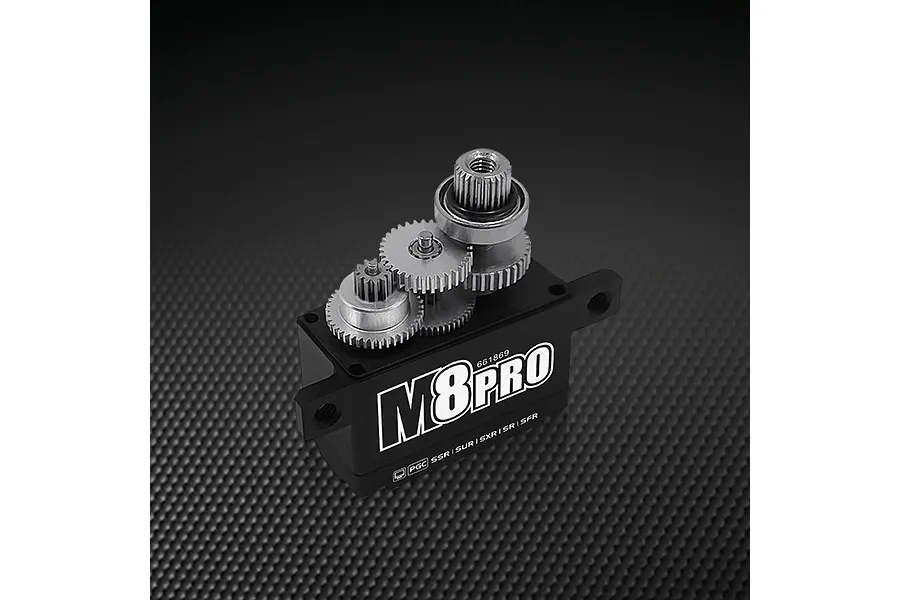

Gear Material: Titanium & Steel
Waterproof Casing: Splash Proof
7.4V Sec/60 Degrees: 0.068
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.079
8.4V Sec/60 Degrees: 0.058
Total Height: 28.5mm
Body Length: 13.4mm
Bottom to Under Mount: 29mm
4.8V Torque kg/cm: 4.3
Size Conventionally sized servo names: Mini
