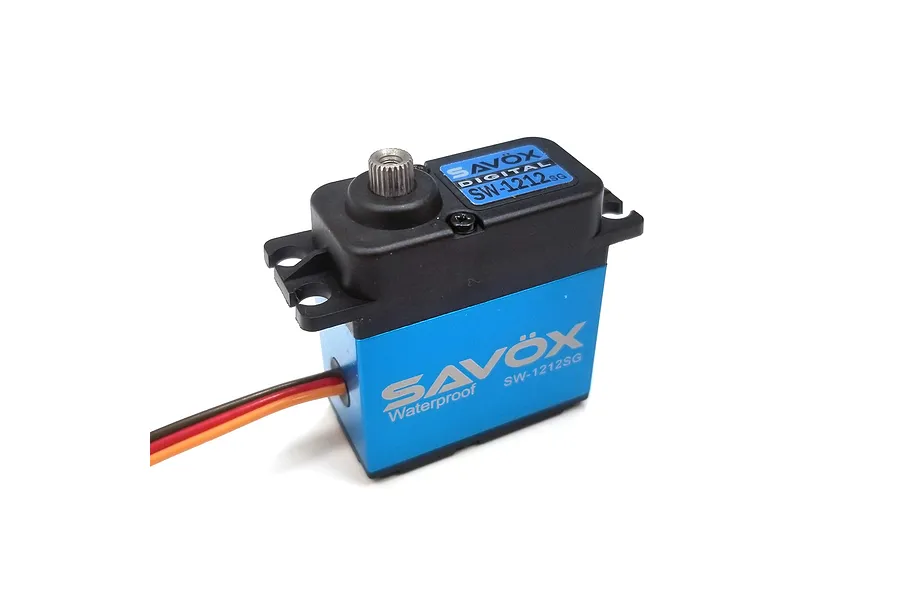

Savox SW-1212SG Plus 52kg 8.4V Coreless Waterproof Servo
Brand:
Savox
|
MPN: SW-1212SG-PLUS
$164.98
or 4 fortnightly payments of $41.24 with
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description
The Savox SW-1212SG Plus is an exceptionally powerful and durable servo designed for demanding RC applications. Its massive torque, waterproof design, coreless motor, and blistering speeds make it a top choice for 1/8 scale buggies, monster trucks, and other applications where brute strength and precision are essential.
Features
- Extreme torque output (52 kg-cm at 8.4V)
- Fully waterproof for all-weather performance
- Responsive coreless motor technology
- Durable steel gears for longevity
- Standard size for easy installation
- Genuine Savox Product
Included Items
- 1x Savox SW-1212SG Plus 52kg 8.4V Coreless Waterproof Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Videos
Specifications
-
Torque (6.0V)
- 36 kg-cm (555 oz-in)
-
Torque (7.4V)
- 46 kg-cm (638 oz-in)
-
Torque (8.4V)
- 52 kg-cm (722 oz-in)
-
Speed
- 0.17 sec (6.0V) | 0.14 sec (7.4V) | N/A sec (8.4V)
-
Weight
- 83g (3.27 oz)
-
Operating Voltage
- 6.0V - 8.4V
-
Bearing Type
- Dual Ball Bearing
-
Motor Type
- Coreless
-
Operating Temperature
- -10 - +60°C
-
Refresh Rate
- 333Hz
-

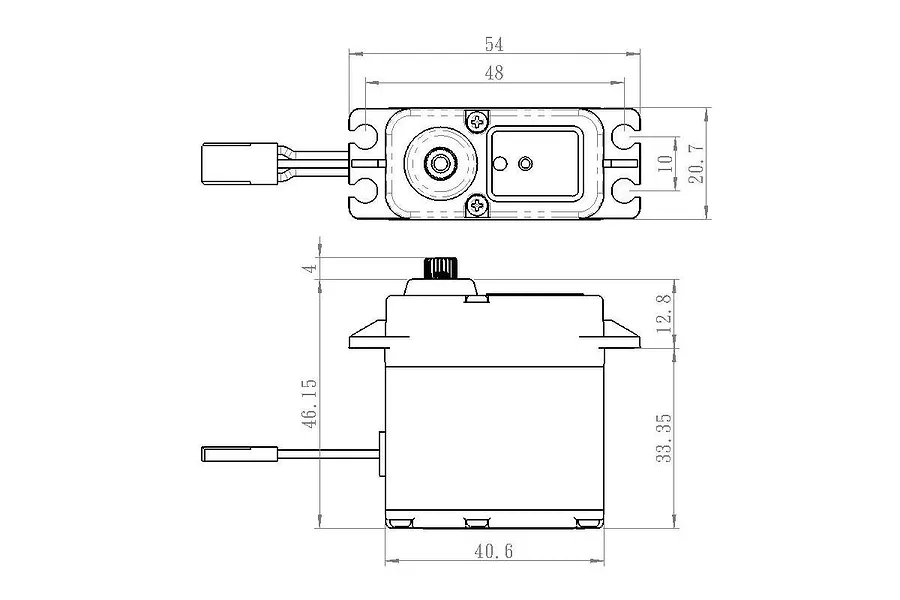

Total Height (A)
- 50.15 mm
-
Body Width (B)
- 40.60 mm
-
Below Mount (C)
- 33.35 mm
-
Above Mount (D)
- 10.80 mm
-
Total Length (E)
- 54 mm
-
Total Width (F)
- 20.7 mm
Servo
-
Height (A)
- 50.15mm
-
Body Length (B)
- 40.6mm
-
Bottom to Under Mount (C)
- 33.35mm
-
Top to Under Mount (D)
- 16.8mm
-
Length (E)
- 54mm
-
Width (F)
- 20.7mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V, 8.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 36
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.17
-
7.4V Torque kg/cm
- 46
-
7.4V Sec/60 Degrees
- 0.14
-
8.4V Torque kg/cm
- 52
-
8.4V Sec/60 Degrees
- 0.13
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
