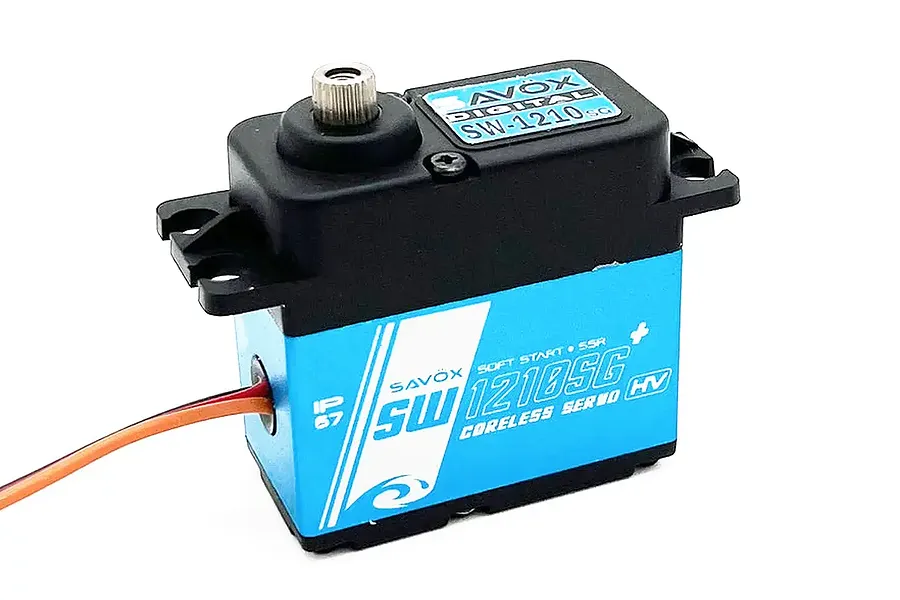

Savox SW-1210SG Plus Standard 37kg 8.4V HV Metal Geared Waterproof Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The Savox SW-1210SG is a top-of-the-line waterproof digital servo, perfect for driving your RC car in any weather conditions, including rain, sleet, and snow. Its coreless design delivers impressive torque, making it an excellent upgrade option. The “Plus” series features Soft Start and is compatible with Sanwa SSR. Its unique steel gears are strong and durable, ensuring reliable performance. Additionally, it is capable of operating at high voltage and is constructed to withstand harsh elements.
- Premier waterproof digital servo
- Coreless design for great torque
- Soft Start and Sanwa SSR compatible
- Unique, strong steel gears
- Capable of high voltage operation
- Waterproof construction for harsh elements
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Servo Dimensions
- Total Height (A) = 46mm
- Body Width (B) = 40.6mm
- Below Mount (C) = 29.2mm
- Above Mount (D) = 16.8mm
- Total Length (E) = 53.85mm
- Total Width (F) = 20.7mm
- Torque(7.4V): 32 kg-cm (444.4 oz-in)
- Torque(8.4V): 37 kg-cm (513.8oz-in oz-in)
- Speed: 0.13 sec (7.4V) | 0.12 sec (8.4V)
- Operating Voltage: 7.4V-8.4V
- Weight: 71g (2.5oz)
- Bearing Type: Ball Bearing
- Motor Type: Coreless
- Operating Temperature: -10° - 50°C (14° - 122°F)
- Refresh Rate: 333 Hz
- Size: 40.6 x 20.7 x 42.0mm (1.60 x 0.81 x 1.65in)

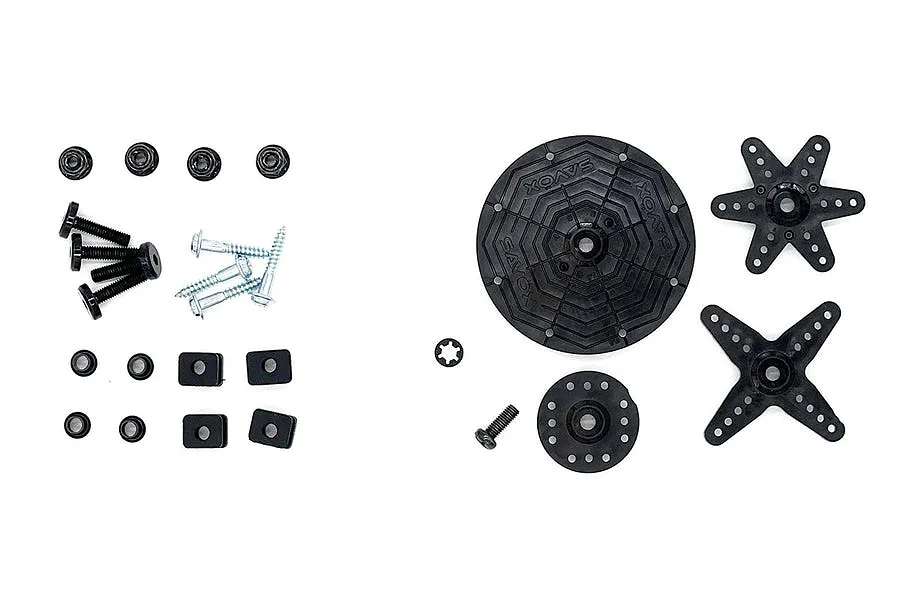

| Description | QTY |
|---|---|
| SW-1210SG Plus Standard 37kg 8.4V HV Metal Geared Waterproof Servo | 1 |
| Servo | |
|---|---|
| Size: | Standard |
| Gear Material: | Metal |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 25tooth |
| Signal Type: | Digital |
| Input Voltage Range: | 7.4V, 8.4V |
| Drive Motor Type: | Coreless |
| Case Material: | Metal |
| Rotational Degrees: | 120o (Normal) |
| Total Height: | 46mm |
| Body Length: | 40.6mm |
| Bottom to Under Mount: | 29.2mm |
| Top to Under Mount: | 16.8mm |
| Total Length: | 53.85mm |
| Total Width: | 20.7mm |
| 7.4V Torque kg/cm: | 32 |
| 8.4V Torque kg/cm: | 37 |
| 7.4V Sec/60 Degrees: | 0.13 |
| 8.4V Sec/60 Degrees: | 0.12 |
