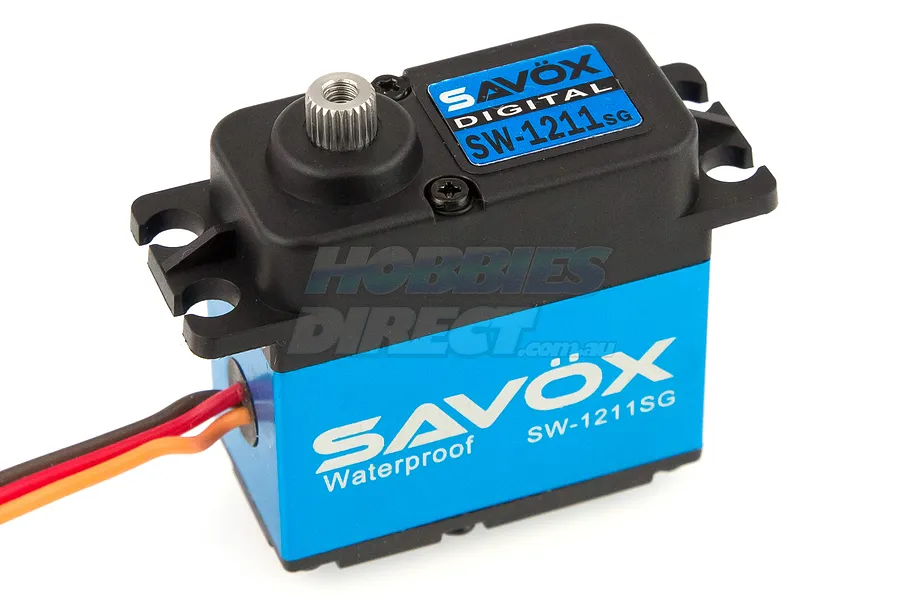

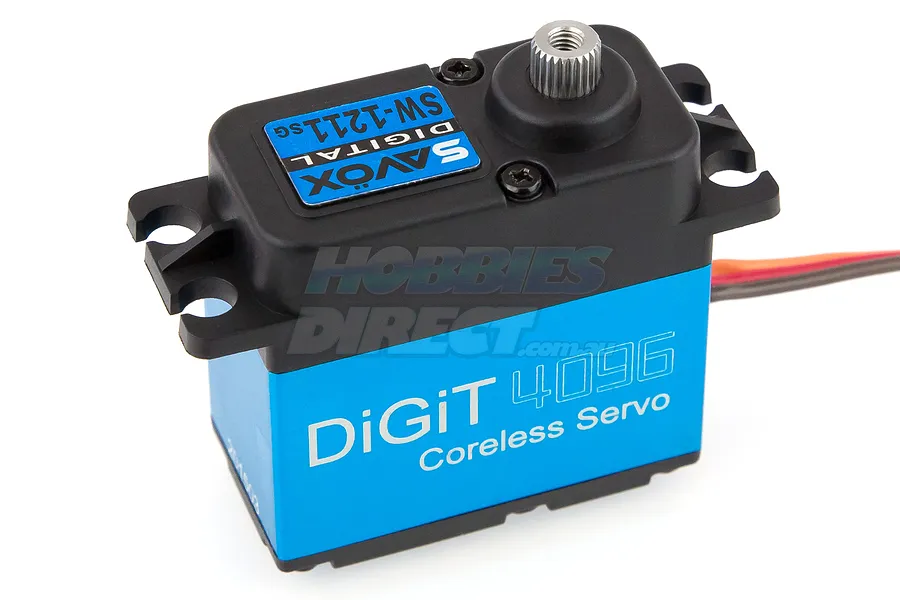

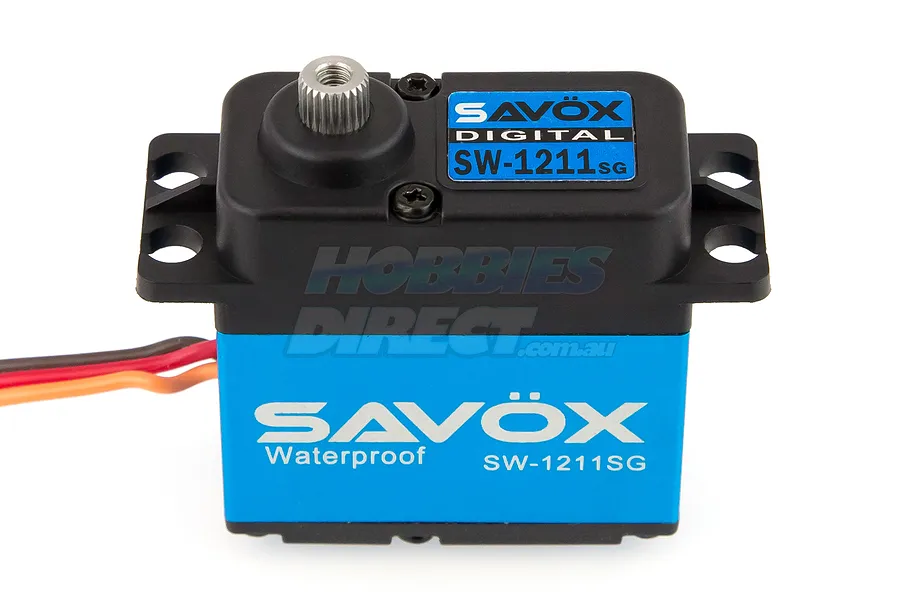

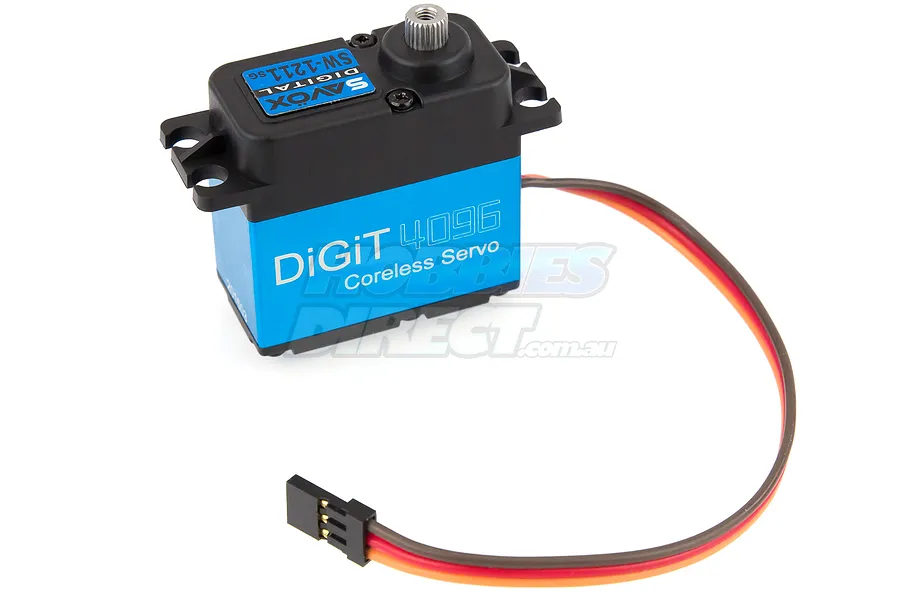

Savox SW-1211SG Standard 30kg 8.4V Metal Geared Waterproof Servo
Brand: Savox
|
SKU: SW-1211SG
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
SAV-SW-1211SG Servo Specifications
- Total Height (A) = 46mm
- Body Width (B) = 40.6mm
- Below Mount (C) = 29.2mm
- Above Mount (D) = 16.8mm
- Total Length (E) = 53.85mm
- Total Width (F) = 20.7mm
Specifications
| Servo | |
|---|---|
| Size: | Standard |
| 6.0v Torque: | 15 |
| 6.0v Speed: | 0.1 |
| Gear Material: | Steel |
| Waterproof Casing: | Yes |
| Servo Spline Count: | 25 |
| Signal Type: | Digital |
| Input Voltage Range: | 6V|7.4V|8.4V |
| Case Material: | Metal |
| Rotational Degrees: | 120o (Normal) |
| "A" Measurement: | 46 |
| "B" Measurement: | 40.6 |
| "C" Measurement: | 29.2 |
| "D" Measurement: | 16.8 |
| "E" Measurement: | 53.85 |
| "F" Measurement: | 20.7 |
| 7.4V Torque kg/cm: | 25 |
| 8.4V Torque kg/cm: | 30 |
| 7.4V Sec/60 Degrees: | 0.08 |
| 8.4V Sec/60 Degrees: | 0.07 |
Reviews
2 reviews
Hendrik Tinius
27/07/2018

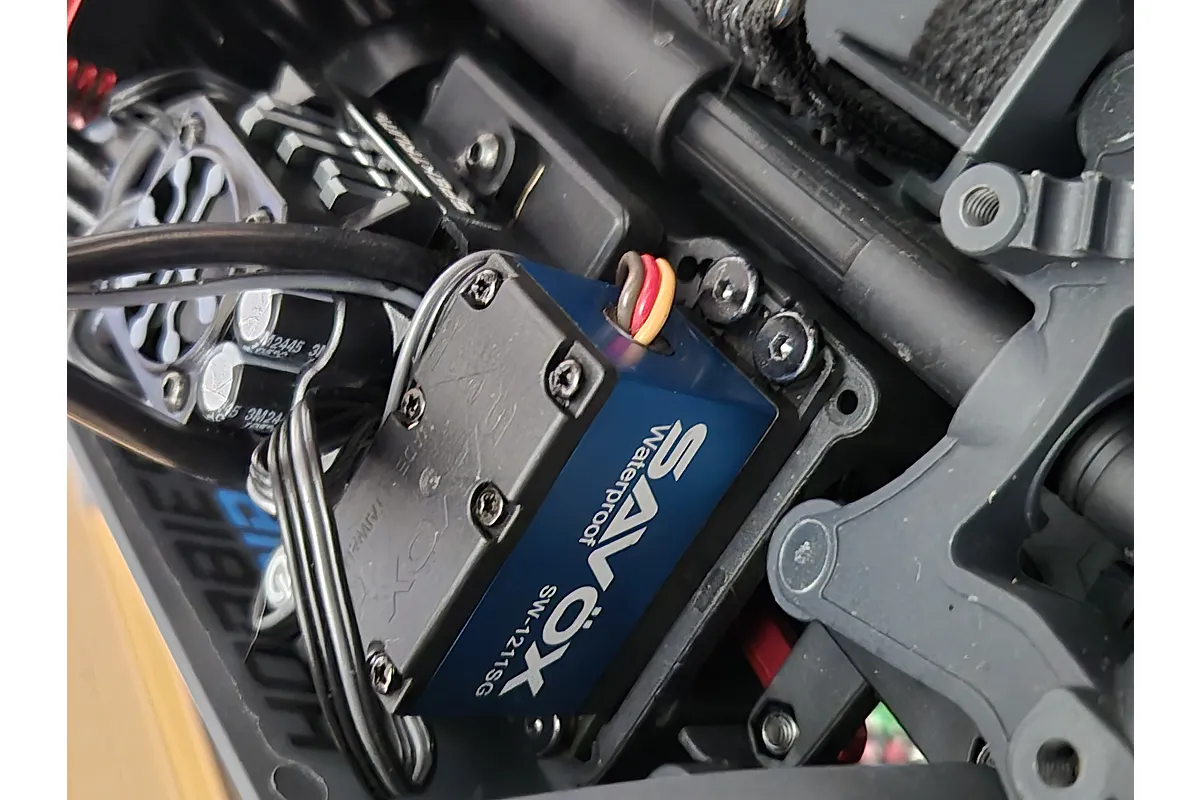

I run this in my 4x4 slash. So much faster and more precise compared to the stock . Well worth the $$ if you ask me.
Wayne Staal
03/12/2017
Excellent. Compact and fit the Wraith Kit and steering setup.
Showing 1 to 2 of 2 (1 Pages)
Related Products
Compatibility
Fits 32 HPI Cars
