Spektrum S9110BL 1/5 88kg 8.4V Brushless Metal Geared Servo
- 1/5
- Brushless
Part no. SPMSS9110BL
1 in stockNo reviews yet
Want more than 1? and we'll email you when they're here.
1 in stock · Ships Tuesday · order by Tuesday
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Will it fit?
Specifications
Servo
| Size | 1/5 |
|---|---|
| Gear Material | Metal |
| Servo Spline Count | 15Tooth |
| Waterproof Casing | Yes |
| Input Voltage Range | 6V, 7.4V, 8.4V |
| Case Material | Aluminium |

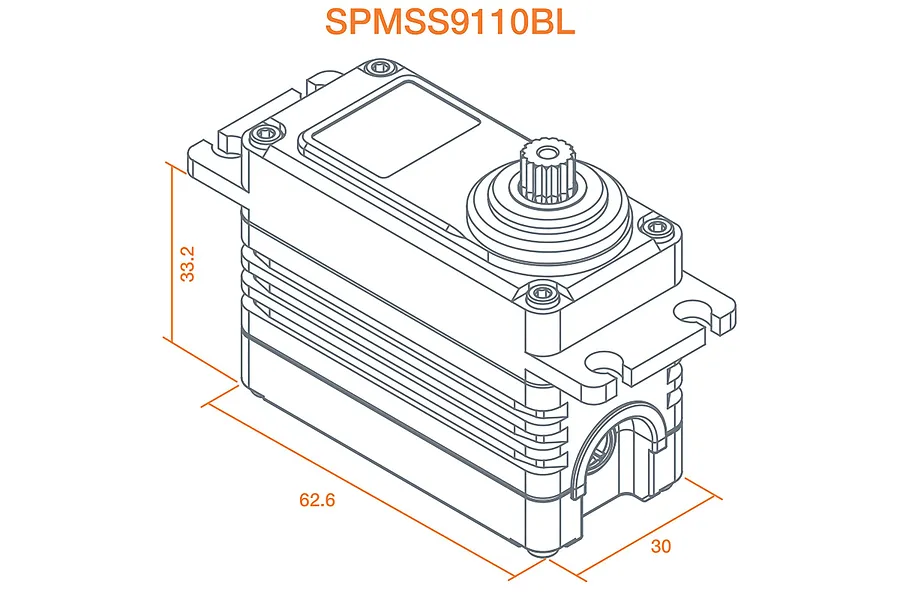

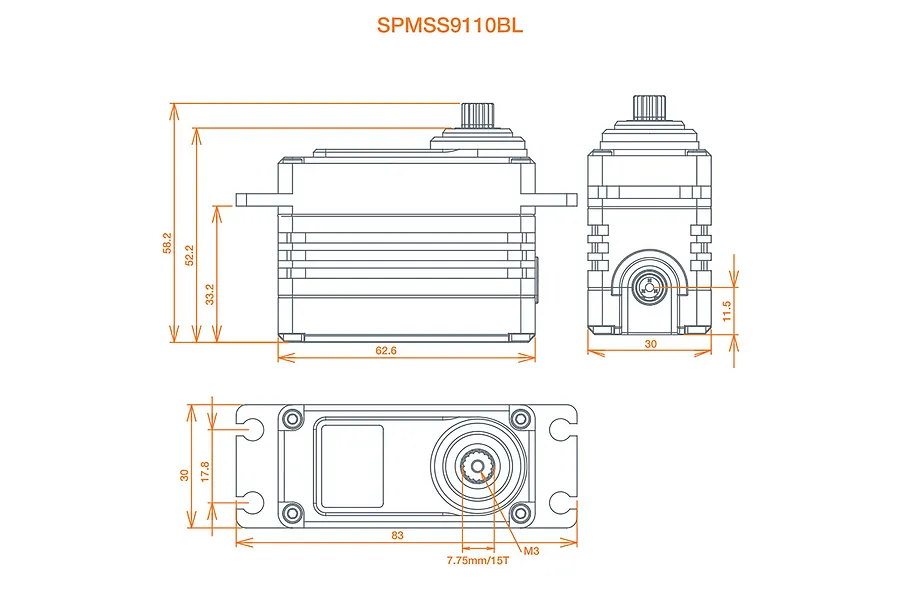

| Height (A) | 58.2mm |
| Body Length (B) | 62.6mm |
| Bottom to Under Mount (C) | 33.2mm |
| Top to Under Mount (D) | 22mm |
| Length (E) | 83mm |
| Width (F) | 30mm |
| Drive Motor Type | Brushless |
| Rotational Degrees | 120° (Normal) |
| 6V Torque kg/cm | 62.43 |
| 7.4V Torque kg/cm | 70.69 |
| 8.4V Torque kg/cm | 88.16 |
| 8.4V Sec/60 Degrees | 0.14 |
| Signal Type | Digital |
Compatibility
Fits 2 Axial models
