HiLantronics Red Aluminium HLT5000WP 1/5 51kg 8.4v Metal Geared Waterproof Servo w/ Aluminium Servo Horn

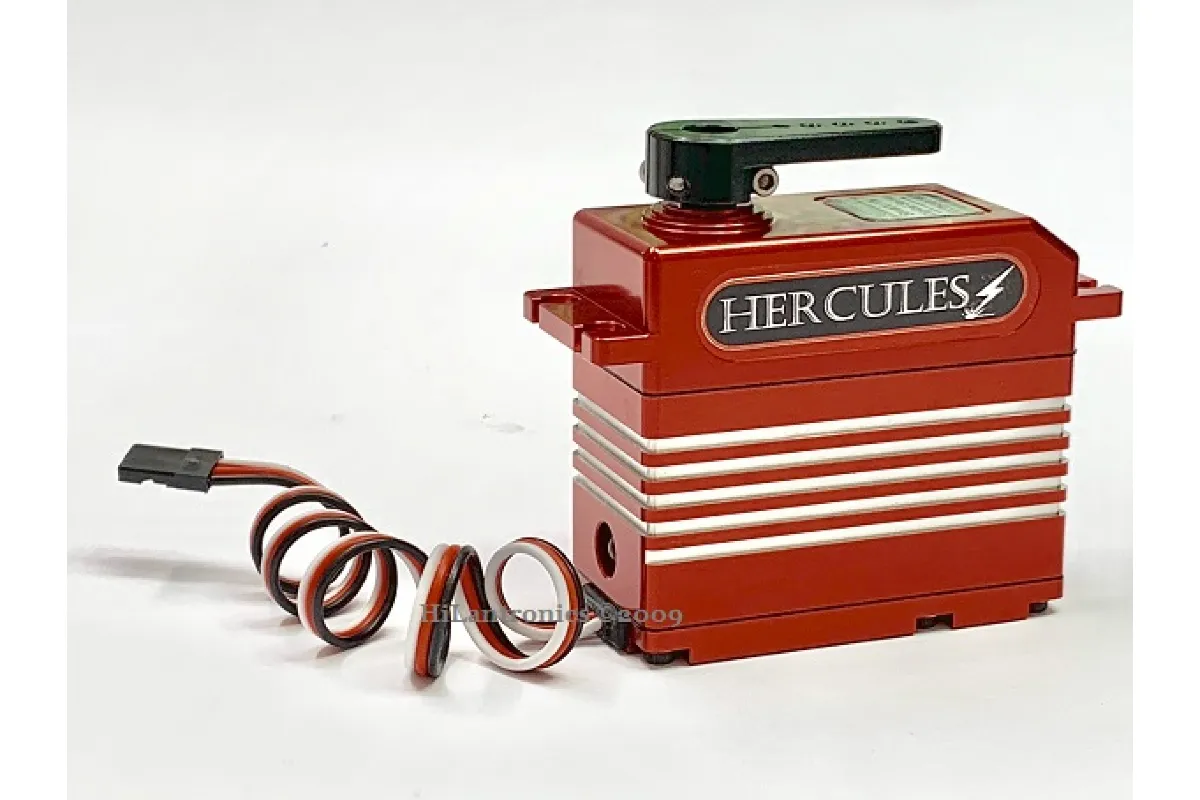

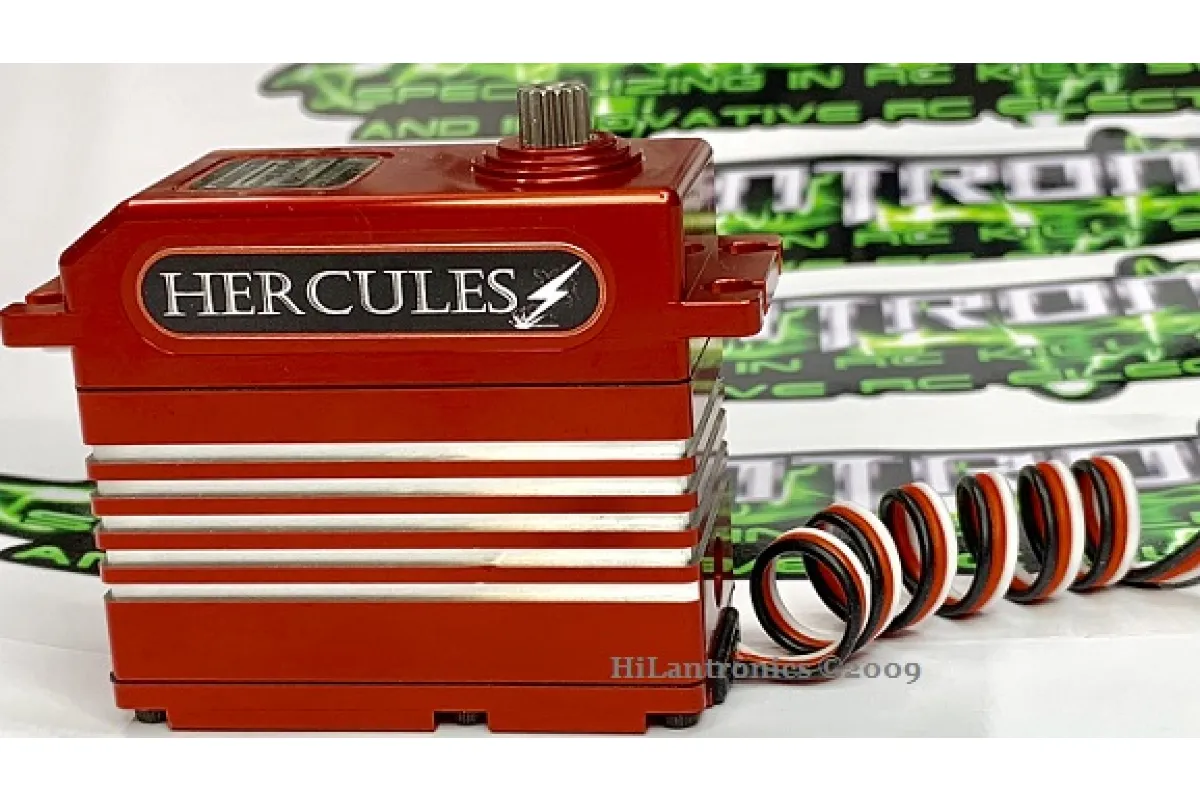

HiLantronics HLT5000WP 51kg waterproof servo with full CNC aluminium casing, metal gears, LED diagnostics, and current limiter — made in Australia.
- 51 kg-cm torque at 8.4V — suited for 1/5 scale vehicles
- Full CNC machined aluminium casing, anodised Red
- Waterproof design with heavy duty metal gears
- Smart digital controller with LED status diagnostics
- Current limiter and over-temperature shutdown protection
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20 kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

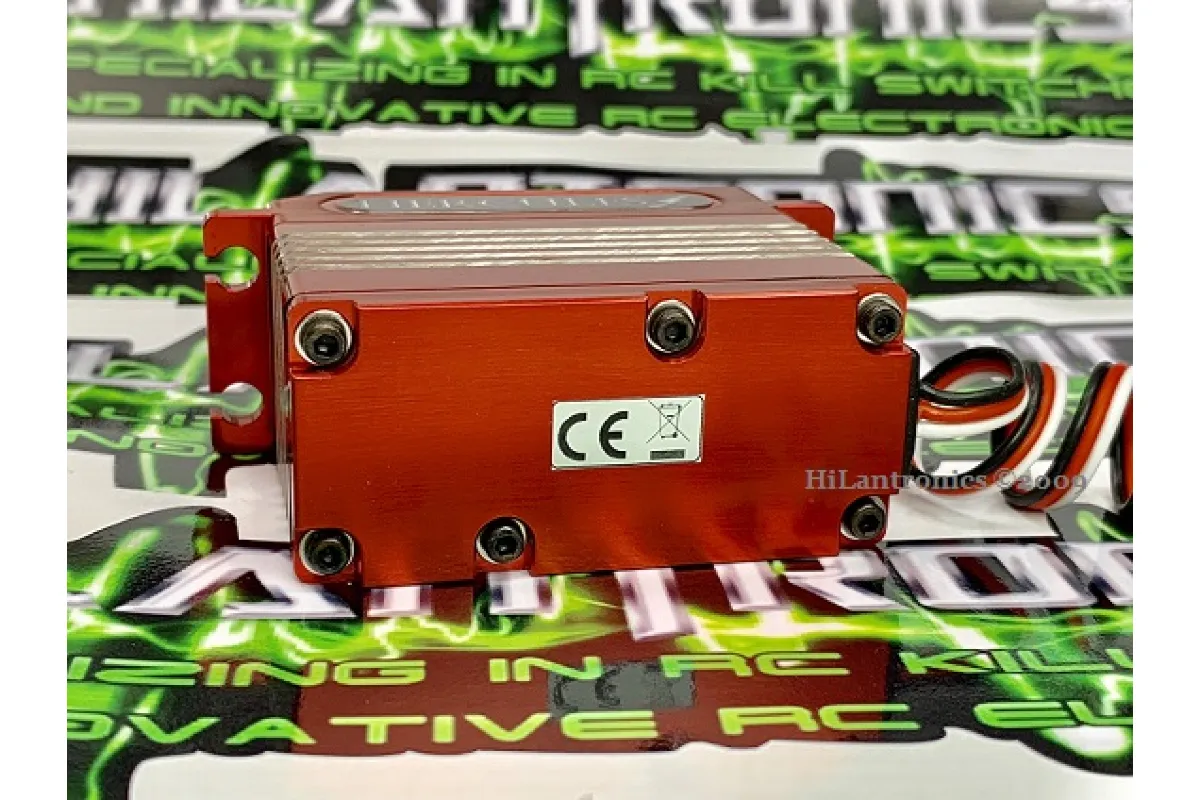

Unbreakable fully billet casing, waterproof, 15T gear teeth, heavy duty metal gears, quality core metal motor, smart digital signal controller with LED status signals for diagnostic, quick disconnect servo lead, current limiter and over temperature shut down if servo ever got stuck to prevent the controller board from being burnt out, automatic shutdown if no RX signals present.
- Full CNC Machined Aluminium casing
- Waterproof design
- LED status lights for diagnostics

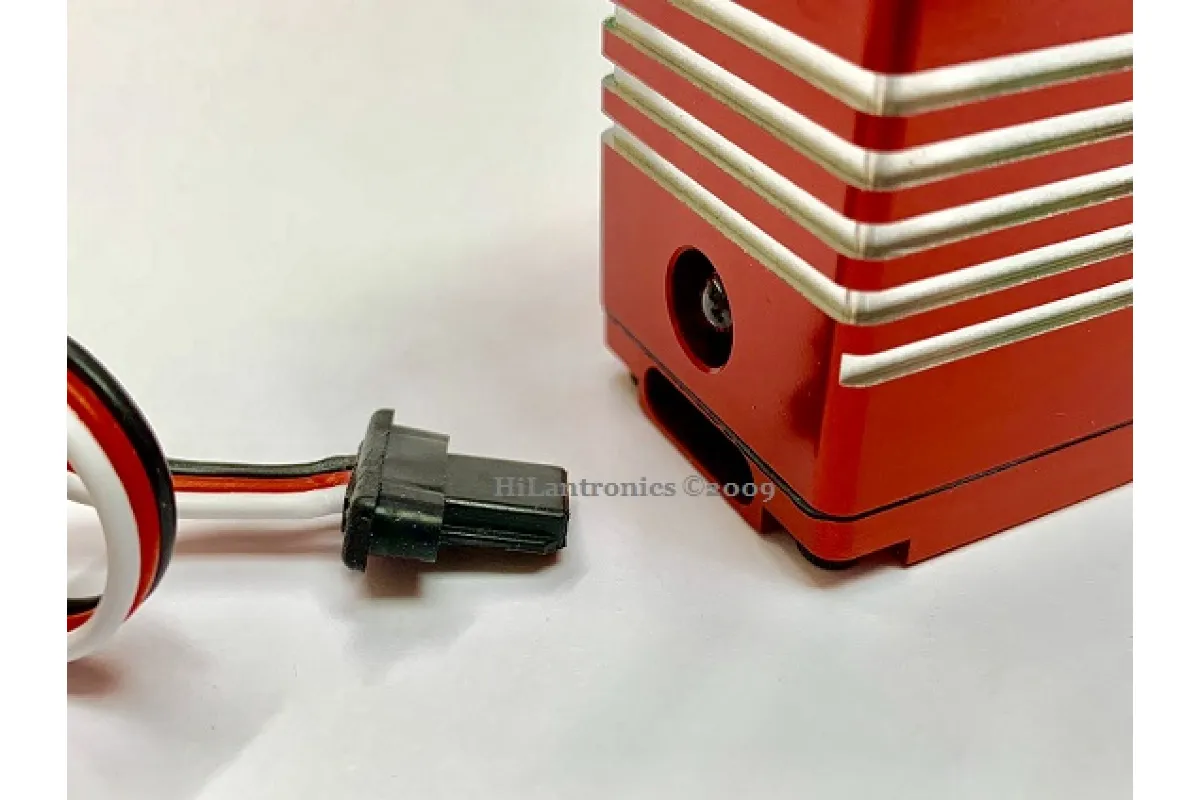

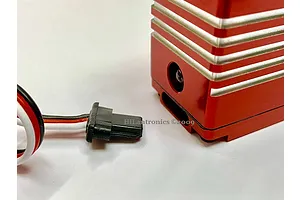

- Quick disconnect servo lead
- Incorporates a current limiter function
- Casing is anodised in Red
- Manufactured in Australia
- Genuine HiLantronics product
LED Signal Status
- Green Flashing: No Radio Signal / Inactive
- Red Flashing: No Radio Signal / Low Battery / Inactive
- Green ON: Active
- Red ON: Low Battery voltage (Below 6 Vdc)
- Red/Green ON: Safe Mode (Current Limited)
- Torque (6.0V): 41 kg-cm (569 oz/in)
- Torque (7.4V): 45 kg-cm (624 oz/in)
- Torque (8.4V): 51 kg-cm (708 oz/in)
- Speed: 0.18 sec (6.0V) — 0.15 sec (7.4V) — 0.13 sec (8.4V)
- Operating Voltage: 6.0 ~ 7.4 ~ 8.4 DC Volts
- Weight: 280 g (10.2 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Brushed Motor
- Gear Type: Metal
Servo Dimensions
- Total Height (A): 69.5mm
- Body Width (B): 67mm
- Below Mount (C): 44.8mm
- Above Mount (D): 24.7mm
- Total Length (E): 82mm
- Total Width (F): 31mm
- 1x Red Aluminium HLT5000WP 1/5 51kg 8.4v Metal Geared Waterproof Servo
- 1x Aluminium 15T Servo Horn
- 1x Hardware Set
Servo requires 3 to 5Vdc square wave pulse. Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center. Servos can be operated within a 6V–8.4V range. The Black wire is 'ground', the Red wire (center) is 'power' and the third wire (white) is 'signal'.
-
Height (A)
- 69.5mm
-
Body Length (B)
- 67mm
-
Bottom to Under Mount (C)
- 44.8mm
-
Top to Under Mount (D)
- 24.7mm
-
Length (E)
- 82mm
-
Width (F)
- 31mm
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 15Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 51
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.18
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
