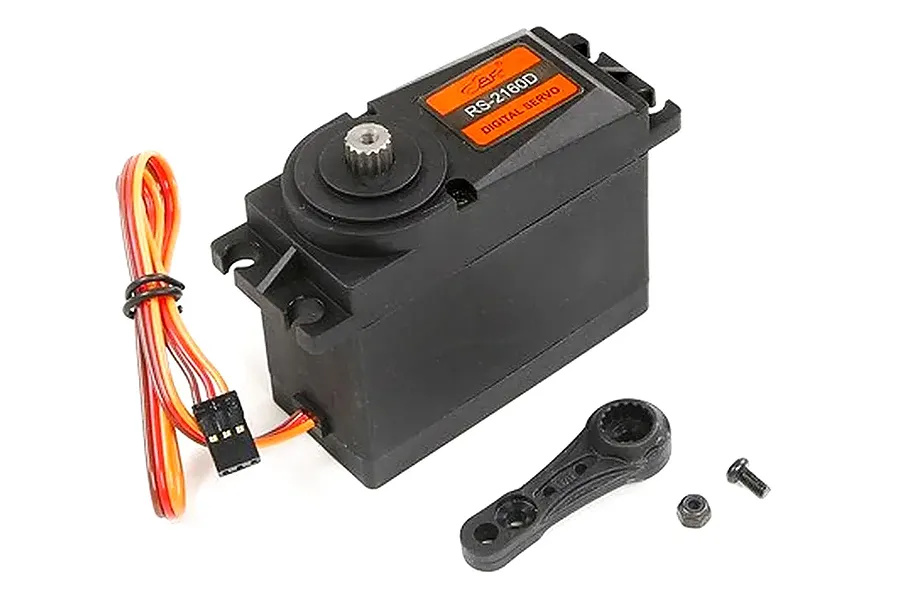

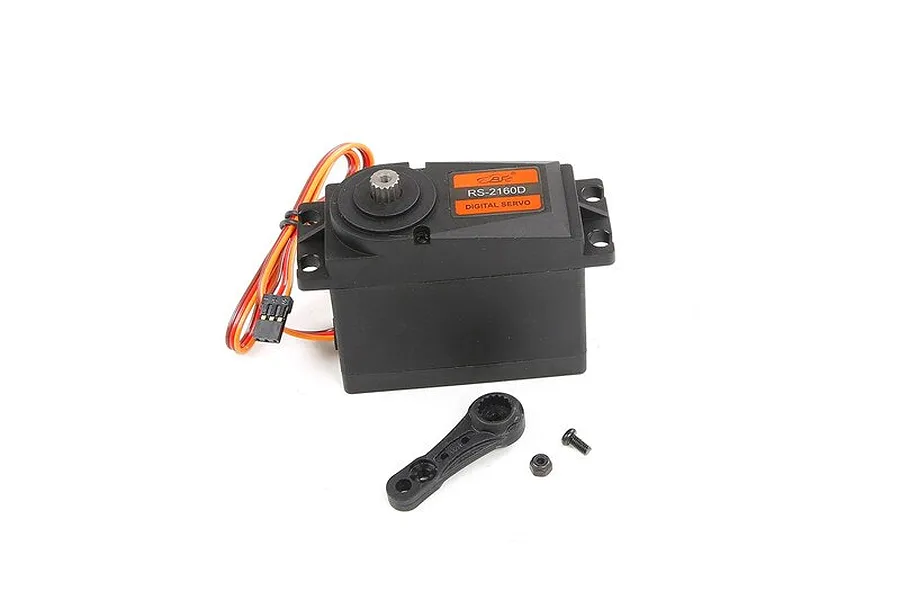

Rovan 1/5 60kg Metal Geared Servo w/ Servo Horn
Rovan 1/5 60kg Metal Geared Servo w/ Servo Horn
Brand:
Rovan
|
MPN: 63049
$61.03
or 4 fortnightly payments of $15.26 with
Pay later with
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Compatible with
11 products.
See Compatibility
Frequently Bought Together
Description
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
ROV-63049 RS-2160D Servo Specifications
-
Total Height (A)
- 63.1mm
-
Body Width (B)
- 66.1mm
-
Below Mount (C)
- 40mm
-
Above Mount (D)
- 23.1mm
-
Total Length (E)
- 81.7mm
-
Total Width (F)
- 29.9mm
Servo
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Metal
-
Servo Spline Count
- 15Tooth
-
Waterproof Casing
- No
-
Case Material
- Plastic
-
Height (A)
- 63.1mm
-
Body Length (B)
- 66.1mm
-
Bottom to Under Mount (C)
- 40mm
-
Top to Under Mount (D)
- 23.1mm
-
Length (E)
- 81.7mm
-
Width (F)
- 29.9mm
-
Drive Motor Type
- Brushed
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 60
-
Signal Type
- Digital
