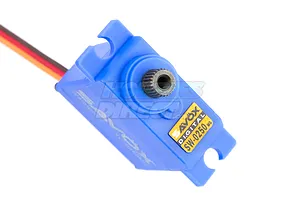

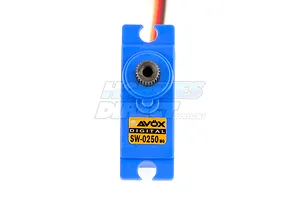

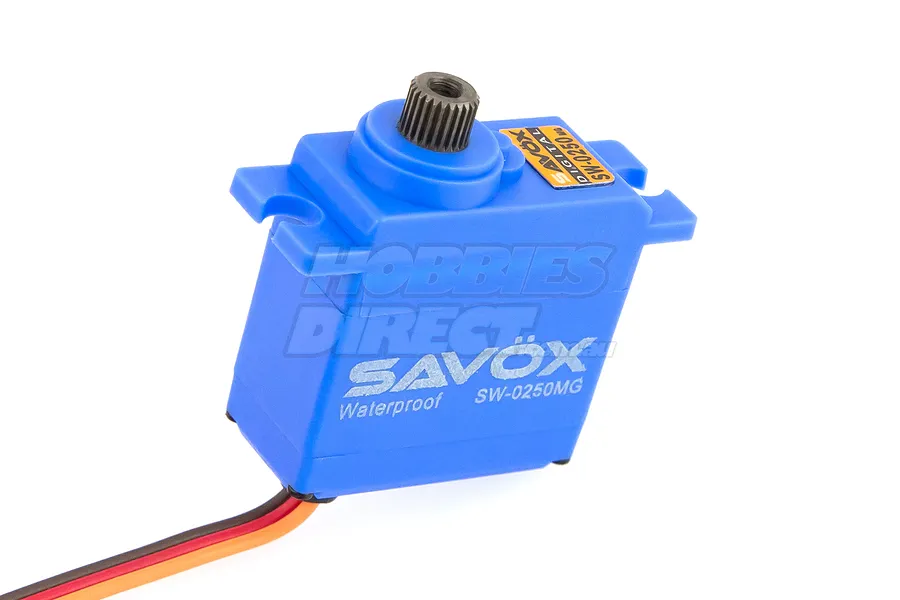

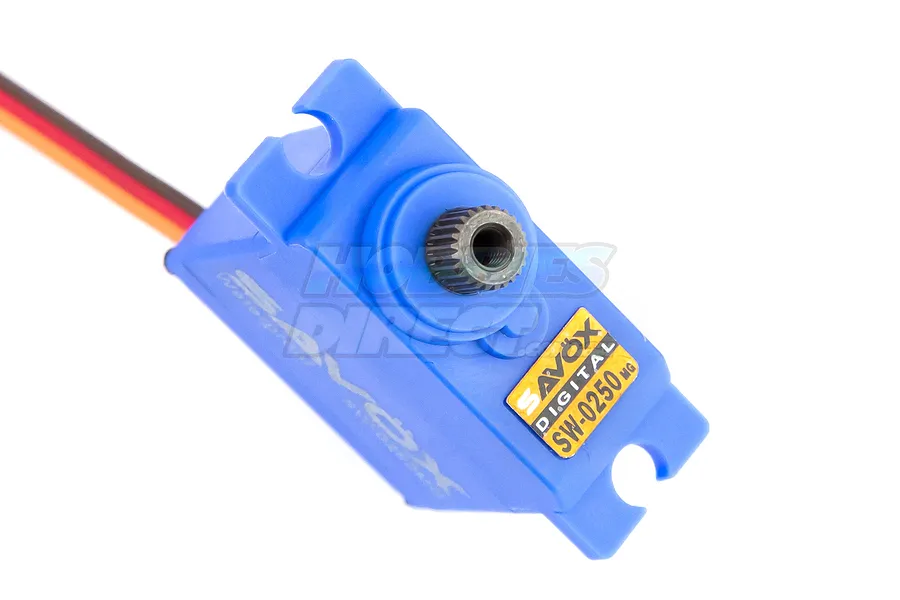

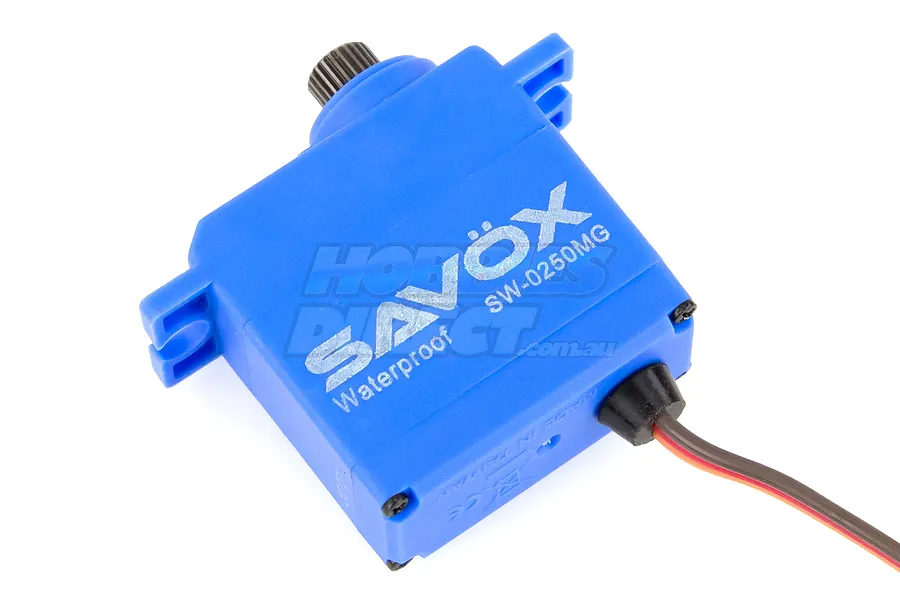

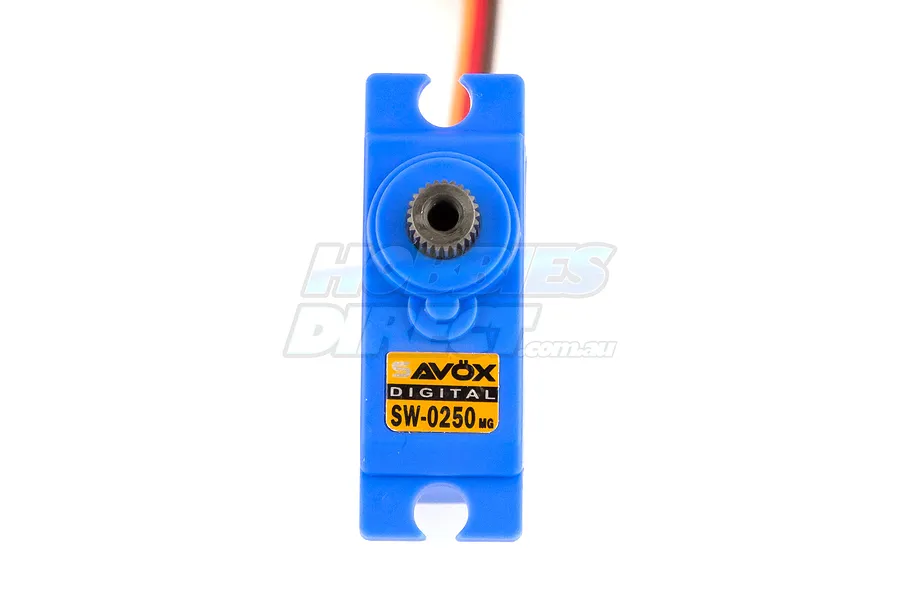

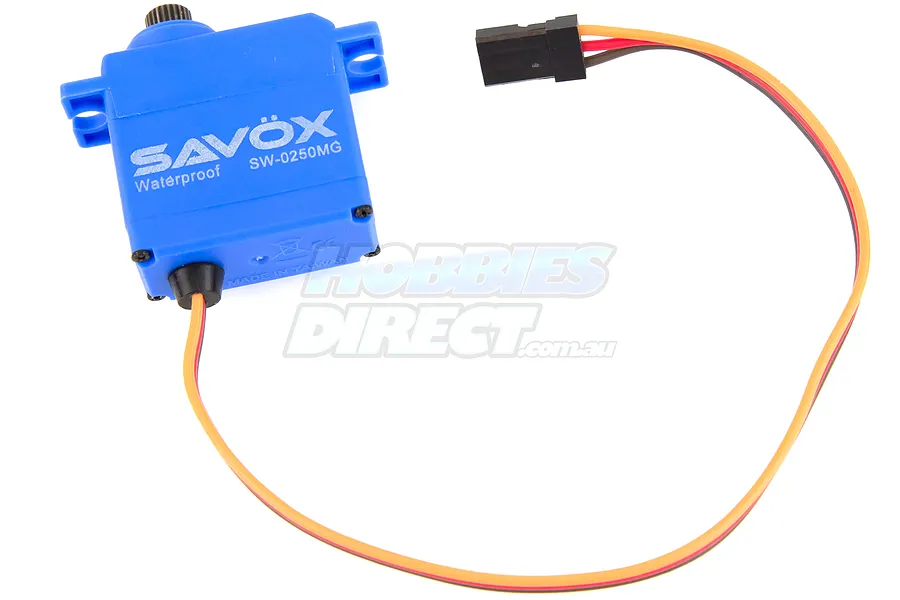

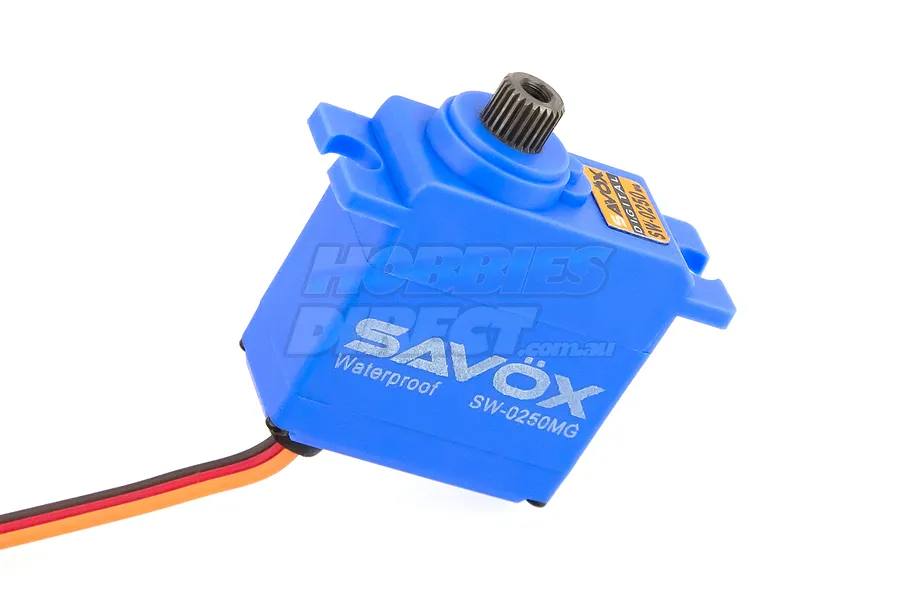

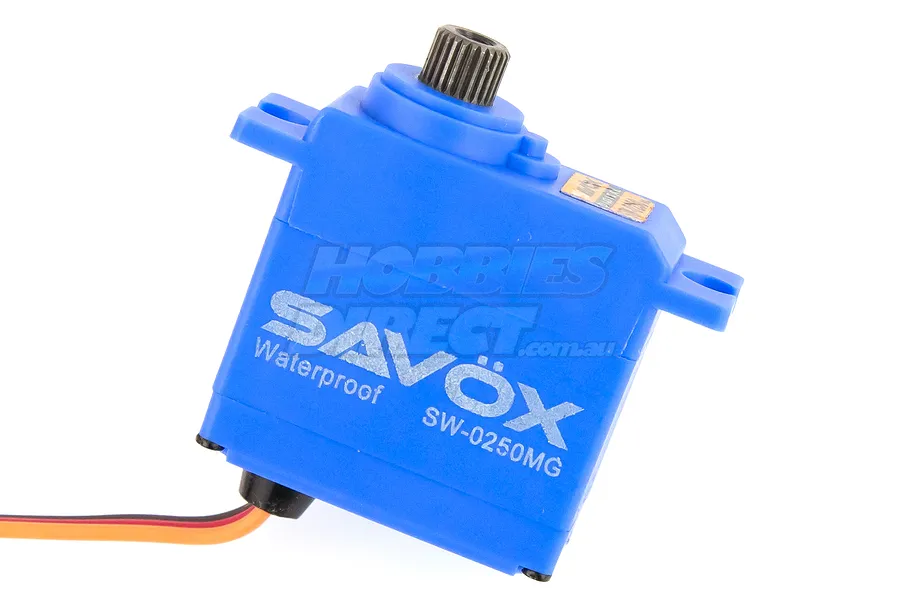

Savox Micro 5kg Metal Geared Waterproof Servo
Savox Micro 5kg Metal Geared Waterproof Servo
Brand:
Savox
|
MPN: SW-0250MG
Compatible with
3 products.
See Compatibility
Related Products
Description
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
-
Total Height (A)
- 36.8mm
-
Body Width (B)
- 29.5mm
-
Below Mount (C)
- 23.85mm
-
Above Mount (D)
- 12.95mm
-
Total Length (E)
- 40mm
-
Total Width (F)
- 14mm
SAV-SW-0250MG Servo Specifications
Servo
-
Height (A)
- 36.8mm
-
Body Length (B)
- 29.5mm
-
Bottom to Under Mount (C)
- 23.85mm
-
Top to Under Mount (D)
- 12.95mm
-
Length (E)
- 40mm
-
Width (F)
- 14mm
-
SizeConventionally sized servo names
- Micro
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.11
-
Signal Type
- Digital
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
Reviews
(1)
5 out of 5 stars
5 years ago
Rabboni
S
Always good to have spares, decent WP micro servos
