Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

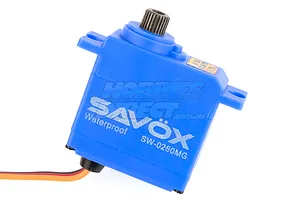

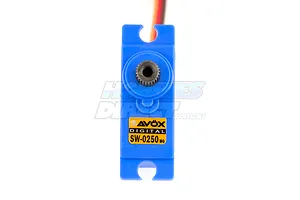

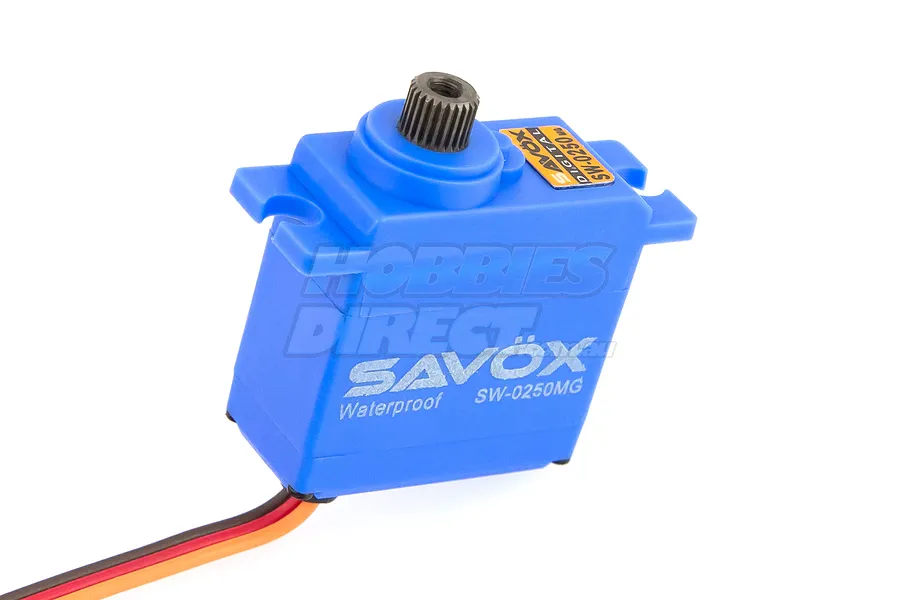

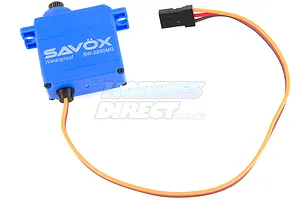

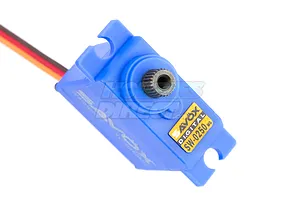

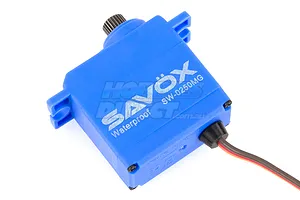

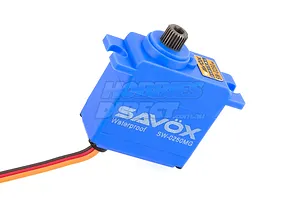

The SW-0250MG Plus is a waterproof, high-torque digital mini servo designed to outperform the standard servos found in Traxxas 1/16 scale vehicles. Its inclusion in the "Plus" series enhances its capabilities with Soft Start for smoother operation and Sanwa SSR compatibility for expanded compatibility.

Features

Metal gearing ensures strength and durability
Waterproof case design

Plus series includes Soft start and Sanwa SSR compatibility
Ideal as a replacement for the 1/16 scale Traxxas RC vehicles

Specifications

Spline size: 25T
Servo Technology: Digital
Operating Voltage: 4.8V - 6V
Motor Type: Brushed
Weight: 25g
Gear Type: Metal Gears
Refresh Rate: 240 Hz

Servo Case: Plastic
Torque @ 4.8V: 3.5 kg-cm (48.6 oz-in)
Torque @ 6V: 5 kg-cm (69.4 oz-in)
Speed @ 4.8V: 0.14 sec/60 deg
Speed @ 6V: 0.11 sec/60 deg
Connector type: JR/Futaba

Servo Specifications

Total Height (A) = 36.8mm
Body Width (B) = 29.5mm
Below Mount (C) = 23.85mm
Above Mount (D) = 12.95mm
Total Length (E) = 40mm
Total Width (F) = 14mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items

Description	QTY
Savox 5kg Plus Micro Metal Geared Waterproof Servo	1
