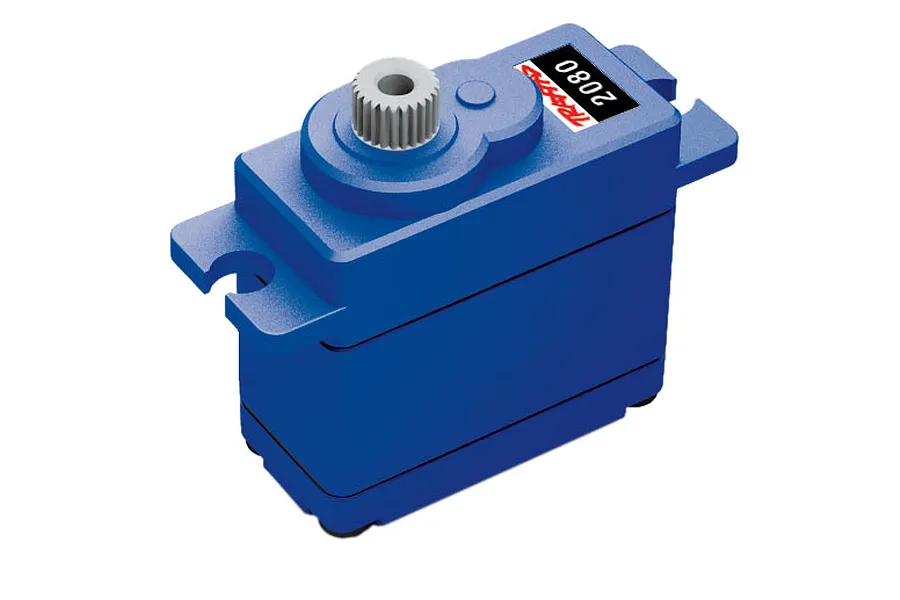

Traxxas Micro Waterproof 3kg Servo

Brand: Traxxas | SKU: 2080

discontinued

write a review

Shop replacement & upgrade parts for this model

Shop Parts

Loading compatibility information...

Alternative Products

Traxxas Blue Micro Waterproof 3kg Servo

0 reviews

$70.53

pending availability

Servo, micro, waterproof, metal gear

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

TRA-2080 Servo Specifications

Total Height (A) = 37mm
Body Width (B) = 29.4mm
Below Mount (C) = 23.8mm
Above Mount (D) = 13.2mm
Total Length (E) = 39.8mm
Total Width (F) = 14mm

Specifications

Servo

Total Width: 14mm
Top to Under Mount: 13.2mm
Total Length: 39.8mm
Body Length: 29.4mm
Bottom to Under Mount: 23.8mm
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.11
Total Height: 37mm
Case Material: Plastic
Rotational Degrees: 120° (Normal)
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 3
Waterproof Casing: Yes
Drive Motor Type: 3-Pole
Size Conventionally sized servo names: Micro
