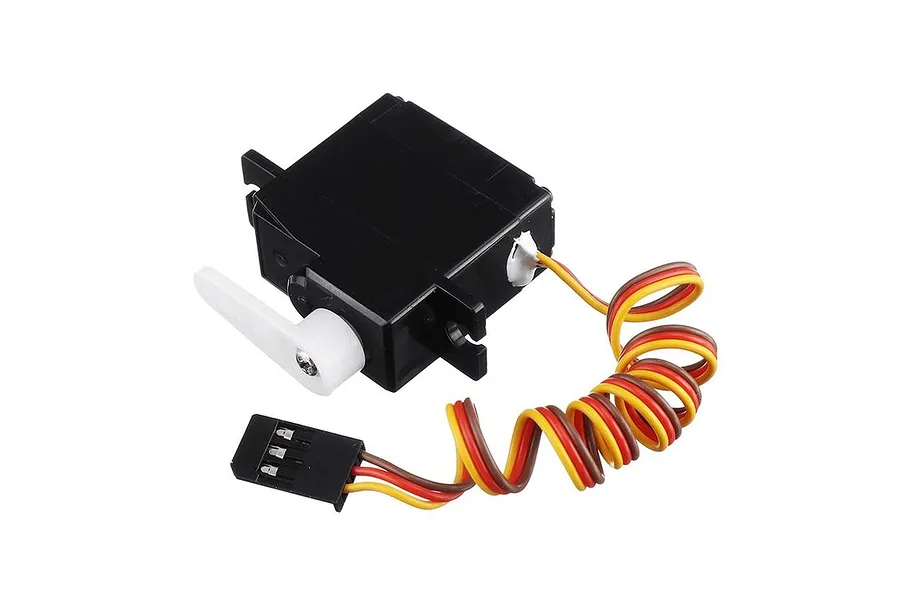

UDI Arrow Steering Gear Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
It is recommended that you purchase this part as a spare.
Features
Genuine UDIRC product
Included items
| Description | QTY |
|---|---|
| Servo | 1 |
Fitment
For UDI Arrow UDI005 RC Boat.
?
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
Servo SpecificationsTotal Height (A) = 36mm
Body Width (B) = 28mm
Below Mount (C) = 18mm
Above Mount (D) = 18mm
Total Length (E) = 40mm
Total Width (F) = 13mm
-
Height (A)
- 36mm
-
Body Length (B)
- 28mm
-
Bottom to Under Mount (C)
- 18mm
-
Top to Under Mount (D)
- 18mm
-
Length (E)
- 40mm
-
Width (F)
- 13mm
-
SizeConventionally sized servo names
- Micro
-
Gear Material
- Plastic
-
Waterproof Casing
- Yes
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
