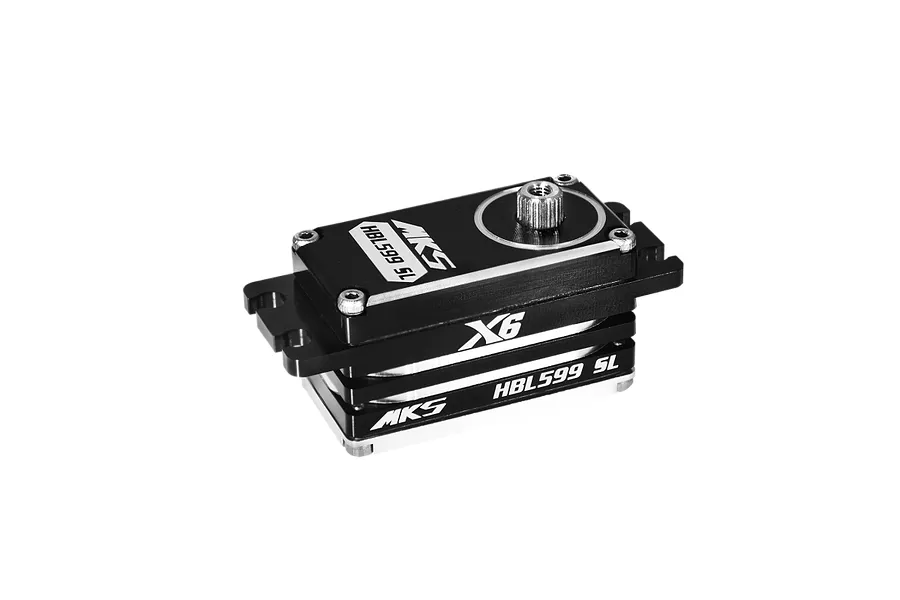

MKS Black Aluminium HBL599SL Low Profile 23kg 7.4V Brushless Metal Geared Servo

Videos

MKS Black Aluminium HBL599SL Low Profile 23kg 7.4V Brushless Metal Geared Servo

Brand: MKS | SKU: S0026006

3+ in stock

write a review

$249.99

Pay later with

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Get exceptional power, swift response, and lasting durability in a compact format with the MKS Black Aluminium X6 SL. Its finned aluminium casing ensures efficient heat dissipation while its low profile design allows versatility when installing, even in the most compact builds.

Features

Substantial torque output for tackling demanding applications
Swift response speeds for ultimate precision
Durable brushless motor pairs with the metal gears for unparalleled durability

Low profile design for space-limited applications
Finned aluminium case for effective heat dissipation and protection
Genuine MKS Product

Specifications

Torque (4.8V): 16 kg-cm / 222.2 oz-in
Torque (6.0V): 18 kg-cm / 249.9 oz-in
Torque (7.4V): 23 kg-cm / 319.4 oz-in
Speed: 0.14 s (4.8V) / 0.11 s (6.0) / 0.09 s (7.4V)
Weight: 53.5 g (1.89 oz)

Operating Voltage: 4.8V ~ 8.4V DC Volts
Bearing Type: Dual Ball Bearing
Motor Type: Brushless
Operating Temperature: N/A
Refresh Rate: 333hz

Servo Dimensions

Total Height (A) = 27.1 mm
Body Width (B) = 40.5 mm
Below Mount (C) = 14.3 mm
Above Mount (D) = 11.8 mm
Total Length (E) = 54.5 mm
Total Width (F) = 20.5 mm
Spline Diameter: 6mm - 25T

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items

Description	QTY
MKS Black Aluminium X6 SL 23kg 7.4V Low Profile Brushless Metal Geared Servo	1

Specifications

Servo

Total Length: 54.5mm
Total Width: 20.5mm
Drive Motor Type: Brushless
Top to Under Mount: 11.8mm
Input Voltage Range: 6VV, 4.8VV, 7.4VV
4.8V Sec/60 Degrees: 0.14
Rotational Degrees: 120° (Normal)
7.4V Sec/60 Degrees: 0.09
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 18
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.11
7.4V Torque kg/cm: 23
Total Height: 27.10mm
Body Length: 40.5mm
Bottom to Under Mount: 14.3mm
4.8V Torque kg/cm: 16
Size Conventionally sized servo names: Low Profile
