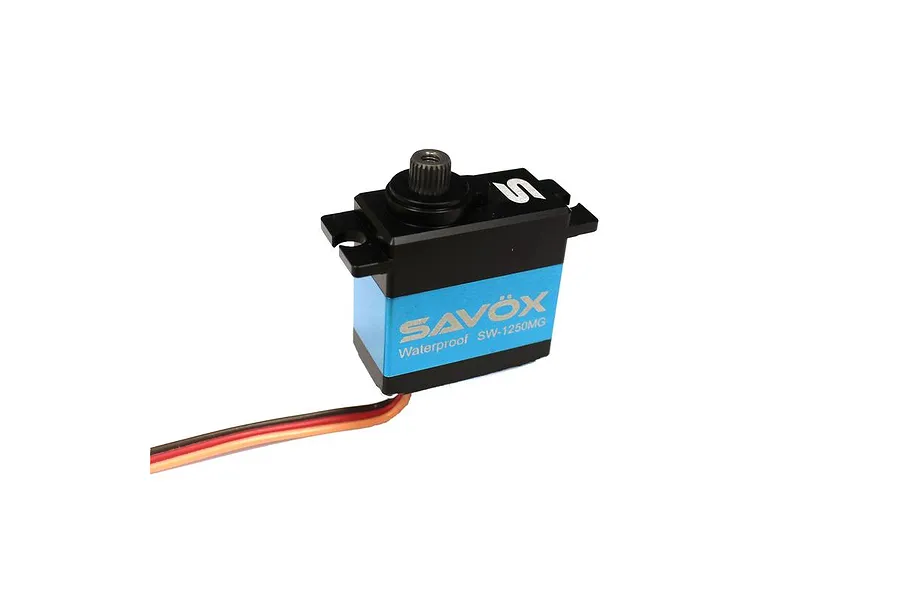

Savox Mini 8kg 7.4v Metal Geared Waterproof Servo

Name: Savox Mini 8kg 7.4v Metal Geared Waterproof Servo
Brand: Savox RC Servos
SKU: SAV-SW-1250MG
Price: 134.71 AUD
Availability: Discontinued

Brand: Savox | MPN: SW-1250MG

discontinued

write a review

Compatible with 2 products.

See Compatibility

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The SW-1250MG is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

Features

Full aluminum waterproof case
Strong metal gear train for increased durability
Ultra torque and speed for mini applications
Designed for Traxxas 1/16 vehicles

Specifications

Torque @ 6.0V: 5.0 kg-cm / 69.4oz-in
Torque @ 7.4V: 8.0 kg-cm / 111.1oz-in
Speed @ 6.0V: 0.12 sec/60°
Speed @ 7.4V: 0.10 sec/60°
Total Height (A): 32.5mm
Body Width (B): 29.5mm
Below Mount (C): 23.85mm
Above Mount (D): 8.65mm
Total Length (E): 40mm
Total Width (F): 15mm

Servo

Height (A): 32.5mm
Body Length (B): 29.5mm
Bottom to Under Mount (C): 23.85mm
Top to Under Mount (D): 8.65mm
Length (E): 40mm
Width (F): 15mm
Size Conventionally sized servo names: Mini
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 8
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.12
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Metal, Plastic
Rotational Degrees: 120° (Normal)
