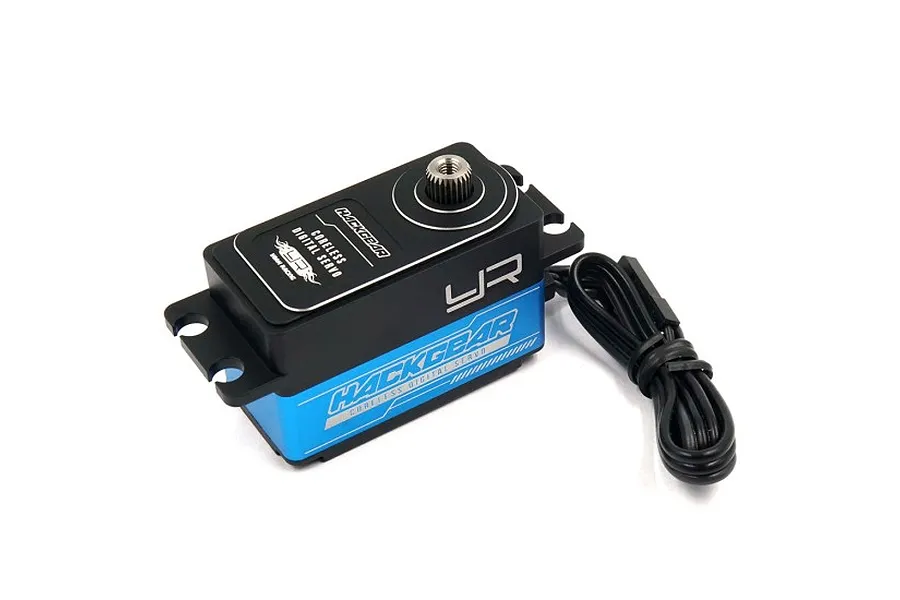

Yeah Racing Blue Aluminium Low Profile Coreless 10kg 8.4v Titanium & Copper Geared Servo

Videos

Yeah Racing Blue Aluminium Low Profile Coreless 10kg 8.4v Titanium & Copper Geared Servo

Brand: Yeah Racing | SKU: YE-0033BU

1 in stock

write a review

$119.86

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

We'll send it today

When ordered within the next hms

Description

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Yeah Racing Hackgear 10kg Coreless Servo Specifications

Total Height (A) = 30.5mm
Body Width (B) = 40.8mm
Below Mount (C) = 19.25mm
Above Mount (D) = 10mm
Total Length (E) = 54.1mm
Total Width (F) = 20.2mm

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Specifications

Servo

Servo Spline Count: 25Tooth
Total Length: 54.1mm
Total Width: 20.2mm
Bottom to Under Mount: 19.25mm
Top to Under Mount: 10mm
Total Height: 30.5mm
Body Length: 40.8mm
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.09
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 10
Gear Material: Titanium & Copper
Waterproof Casing: No
Drive Motor Type: Coreless
Size Conventionally sized servo names: Standard
