Yeah Racing Red Aluminium Standard Coreless 33kg 8.4v Steel Geared Waterproof Servo
Videos
Yeah Racing Red Aluminium Standard Coreless 33kg 8.4v Steel Geared Waterproof Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
- Total Height (A) = 43mm
- Body Width (B) = 40mm
- Below Mount (C) = 26mm
- Above Mount (D) = 10.6mm
- Total Length (E) = 54mm
- Total Width (F) = 20mm

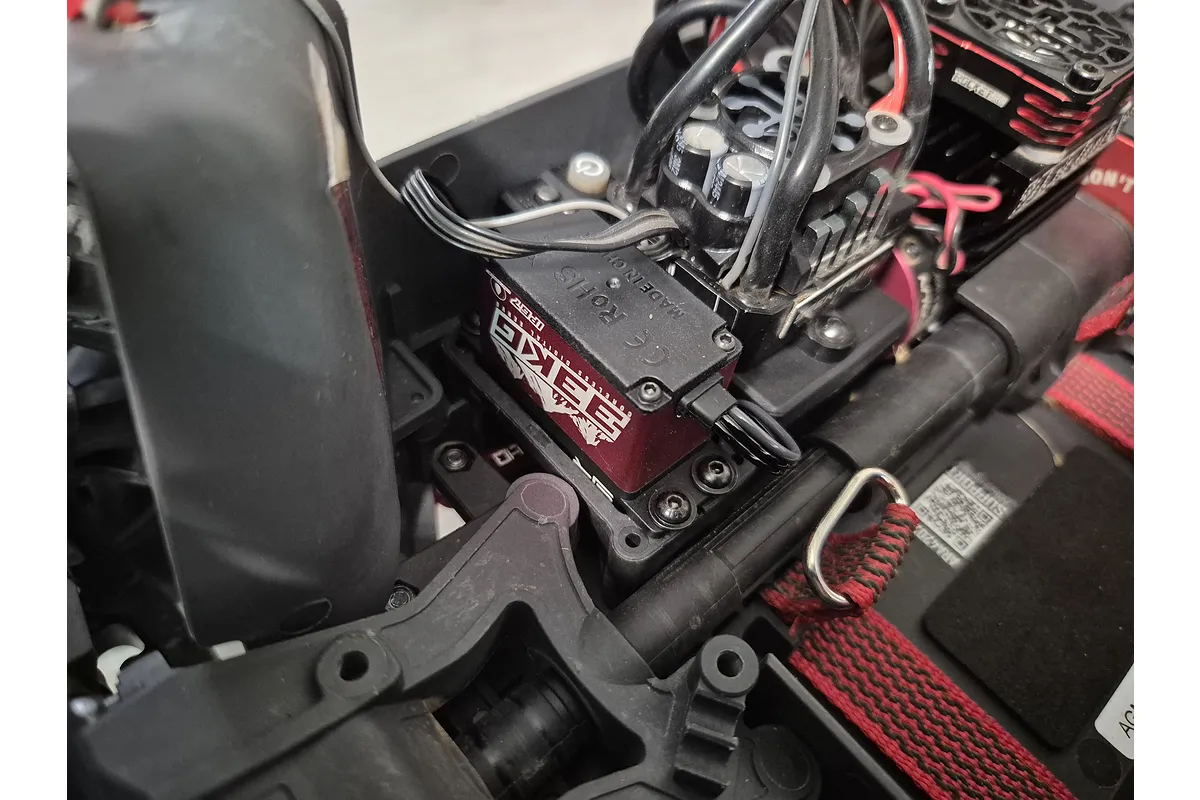

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
-
Servo Spline Count
- 25Tooth
-
Total Length
- 54mm
-
Total Width
- 20mm
-
Bottom to Under Mount
- 26mm
-
Top to Under Mount
- 10.6mm
-
Total Height
- 43mm
-
Body Length
- 40mm
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.092
-
Signal Type
- Digital
-
Case Material
- Aluminium
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 33
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Drive Motor Type
- Coreless
-
SizeConventionally sized servo names
- Standard
