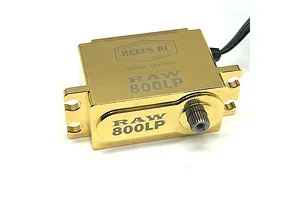

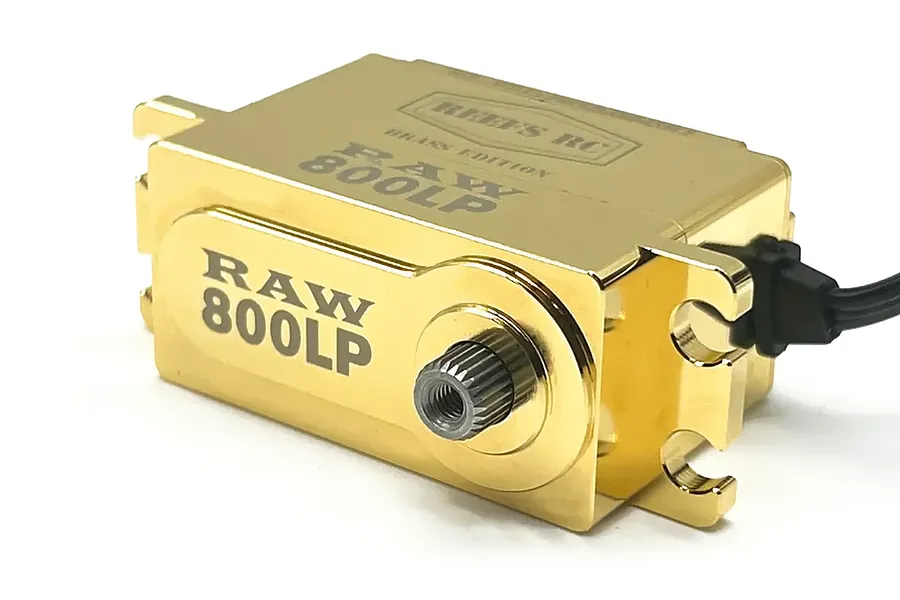

Reefs RC Brass RAW800LP Low Profile 58kg 8.4V Brushless Metal Gear Servo - Brass

Brand: Reefs RC | SKU: REEFS160

3 in stock

write a review

$316.23

Reefs RC RAW 800LP Brass Edition 57.6kg RC Servo: High torque, high speed, and waterproof.

High torque of 57.6 kg-cm
Submarine waterproof with magnetic angle sensor
Fully programmable with Reefs RC software
Durable steel gears and CNC brass casing with ULTRA finish
Low profile size suitable for various RC vehicles

Pay later with

We'll send it today

When ordered within the next hms

Description

The Reefs RC RAW 800LP Brass Edition Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability in a low-profile design. This servo boasts impressive torque and speed, making it ideal for demanding applications. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance across various conditions.

Designed with durability in mind, the RAW 800LP features steel gears and a CNC brass casing with an ULTRA finish, ensuring it can withstand rigorous use. The submarine waterproof design with 7-point seals provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Fully programmable with Reefs RC software, this servo allows for customisation to meet specific needs. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC RAW 800LP Brass Edition is a reliable and powerful addition to your RC setup.

Features

High torque and speed brushless servo
Strong torque @ 57.6 kg-cm (800 oz-in) and fast speed of 0.09 sec @ 8.4V
Submarine waterproof with magnetic angle sensor
Fully programmable with Reefs RC software
Pulse width modulation control
Voltage range: 4.8V - 8.4V
No mechanical angle limit
Steel gears and CNC brass casing with ULTRA finish
2 ball bearings for smooth operation
22AWG wires
Genuine Reefs RC product

Specifications

Torque(6.0V): 45.8 kg-cm (635 oz-in)
Torque(7.4V): 51.7 kg-cm (715 oz-in)
Torque(8.4V): 57.6 kg-cm (800 oz-in)
Speed: 0.12 sec (6.0V), 0.10 sec (7.4V), 0.09 sec (8.4V)
Operating Voltage: 4.8V - 8.4V
Weight: 120.1g (4.23oz)
Bearing Type: 2 Ball Bearings
Motor Type: Brushless Motor
Gear Type: Steel Gears
Size: 40.8x20.2x29.5mm (1.6x0.79x1.16")

Included Items

1x Reefs RC RAW 800LP Brass Edition Servo

Note

BEC is not required but recommended for maximum performance
Reefs RC LINK required for programming (optional)
Consult the manual for waterproof standards and maintenance

Specifications

Servo

Drive Motor Type: Brushless
8.4V Sec/60 Degrees: 0.09
Input Voltage Range: 7.4V, 6V, 8.4V
Rotational Degrees: 120° (Normal)
8.4V Torque kg/cm: 58
Signal Type: Digital
Case Material: Brass
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 46
Gear Material: Steel
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.12
7.4V Torque kg/cm: 51
7.4V Sec/60 Degrees: 0.10
Size Conventionally sized servo names: Low Profile
