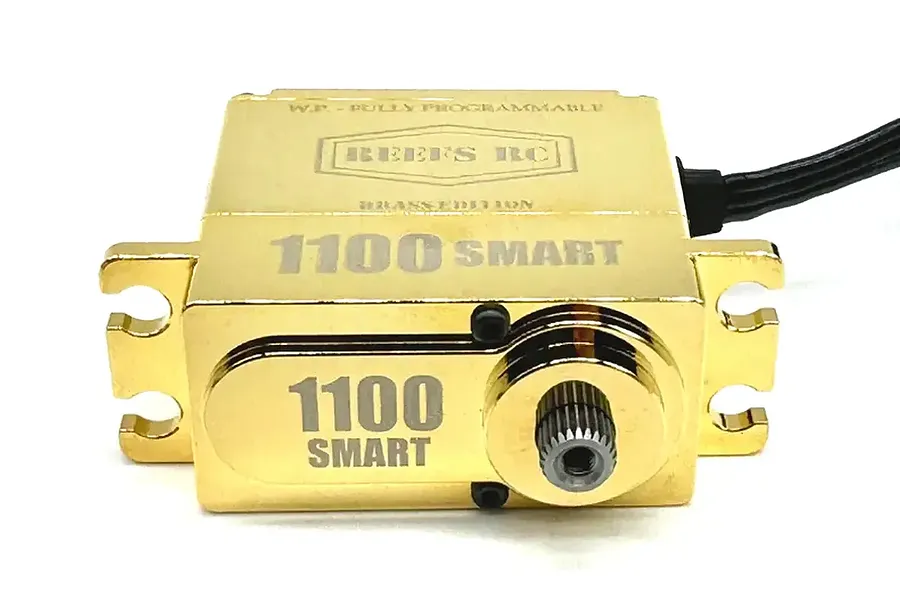

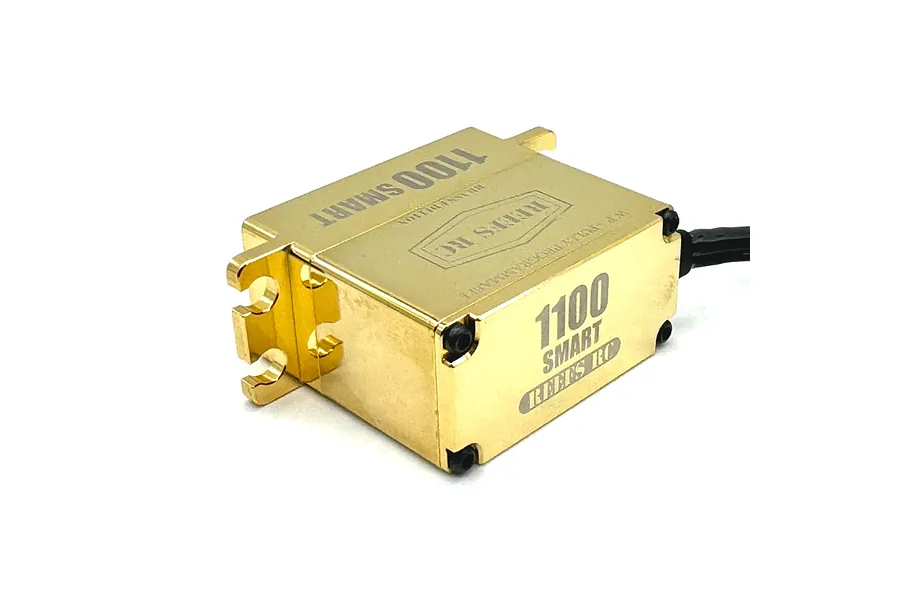

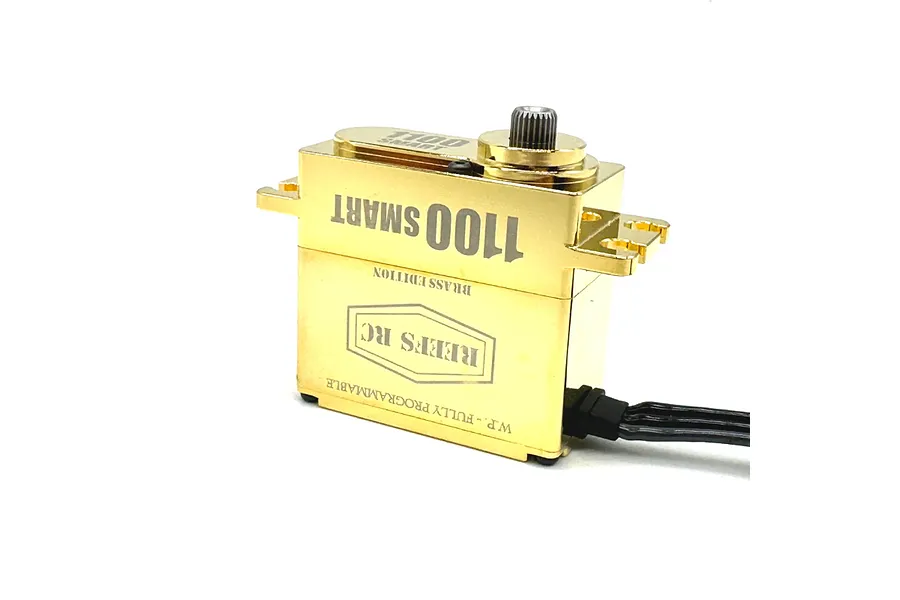

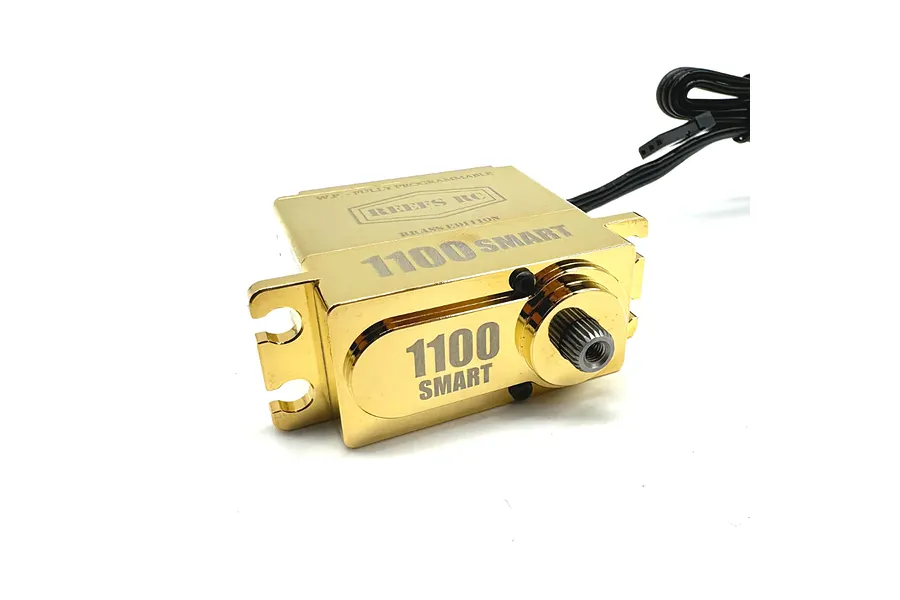

Reefs RC Brass 1100 Smart Standard 79kg 8.4V Brushless Metal Gear Servo/Winch - Brass

  • Brushless

Part no. REEFS179

Sold outNo reviews yet
1 / 4
1 / 4

Videos

$339.99

or 4 fortnightly payments of $85.00 with afterpay or PayPal, or zip

Reefs RC 1100 Smart BRASS EDITION 79.2kg RC Servo/Winch: High torque, high speed, and waterproof.

  • High torque of 79.2 kg-cm
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Durable steel gears and CNC brass casing with ULTRA finish
  • Suitable for high-performance RC vehicles

Videos

Overview

The Reefs RC 1100 Smart BRASS EDITION Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability. This versatile servo can be used as a winch with the REEFS LINK and software, offering exceptional torque and speed for demanding applications. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance across various conditions.

Designed with durability in mind, the 1100 Smart BRASS EDITION features steel gears and a CNC brass casing with an ULTRA finish, ensuring it can withstand rigorous use. The submarine waterproof design with 7-point seals provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Fully programmable with Reefs RC software, this servo allows for customisation to meet specific needs. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC 1100 Smart BRASS EDITION is a powerful and reliable addition to your RC setup.

Note

BEC is not required but recommended for maximum performance

Reefs RC LINK required for programming

Consult the manual for waterproof standards and maintenance

Features

  • High torque and speed brushless servo
  • Strong torque @ 79.2 kg-cm (1100 oz-in) and fast speed of 0.12 sec @ 8.4V
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Pulse width modulation control
  • Voltage range: 4.8V - 8.4V
  • No mechanical angle limit
  • Steel gears and CNC brass casing with ULTRA finish
  • 4 ball bearings for smooth operation
  • 22AWG wires
  • Genuine Reefs RC product

In the box

  • 1x Reefs RC 1100 Smart BRASS EDITION Servo

Specifications

Torque(6.0V)54.7 kg-cm (760 oz-in)
Torque(7.4V)67.1 kg-cm (930 oz-in)
Torque(8.4V)79.2 kg-cm (1100 oz-in)
Speed0.16 sec (6.0V), 0.13 sec (7.4V), 0.12 sec (8.4V)
Operating Voltage4.8V - 8.4V
Weight150g (5.29oz)
Bearing Type4 Ball Bearings
Motor TypeBrushless Motor
Gear TypeSteel Gears
Size40x20x38mm (1.57x0.79x1.5")

Servo

SizeConventionally sized servo namesStandard
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialBrass
Drive Motor TypeBrushless
Rotational Degrees360°
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline55
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.16
7.4V Torque kg/cm67
7.4V Sec/60 Degrees0.13
8.4V Torque kg/cm79
8.4V Sec/60 Degrees0.12
Signal TypeDigital
