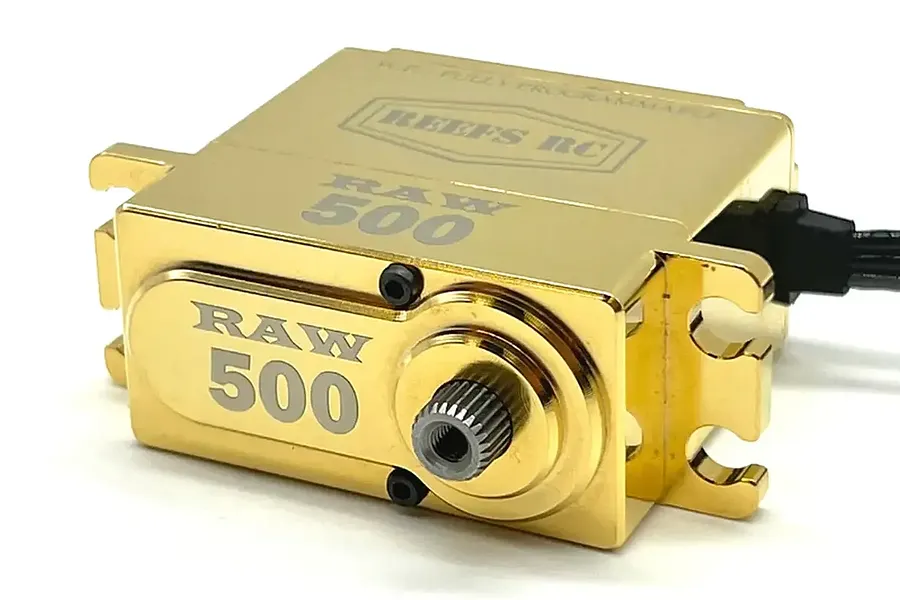

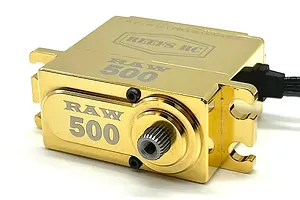

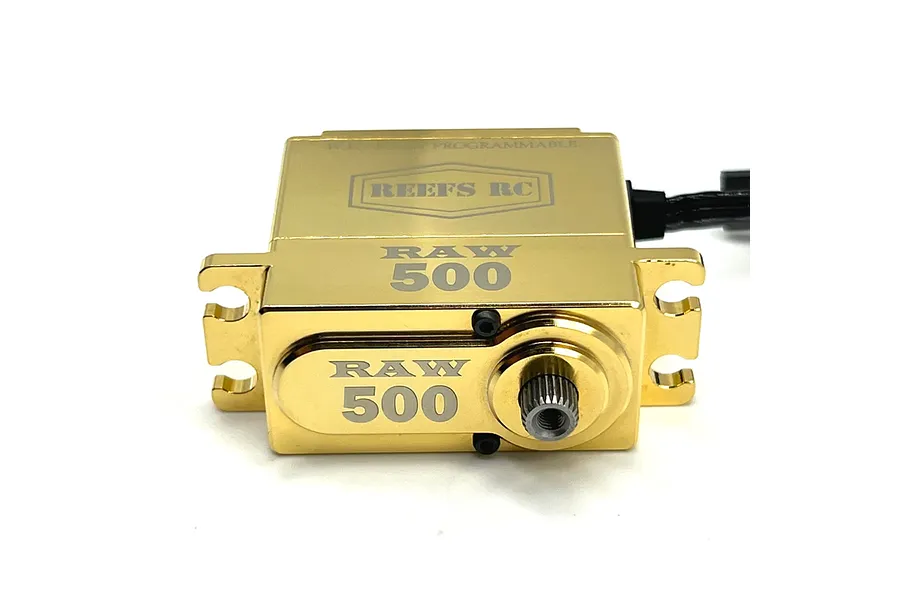

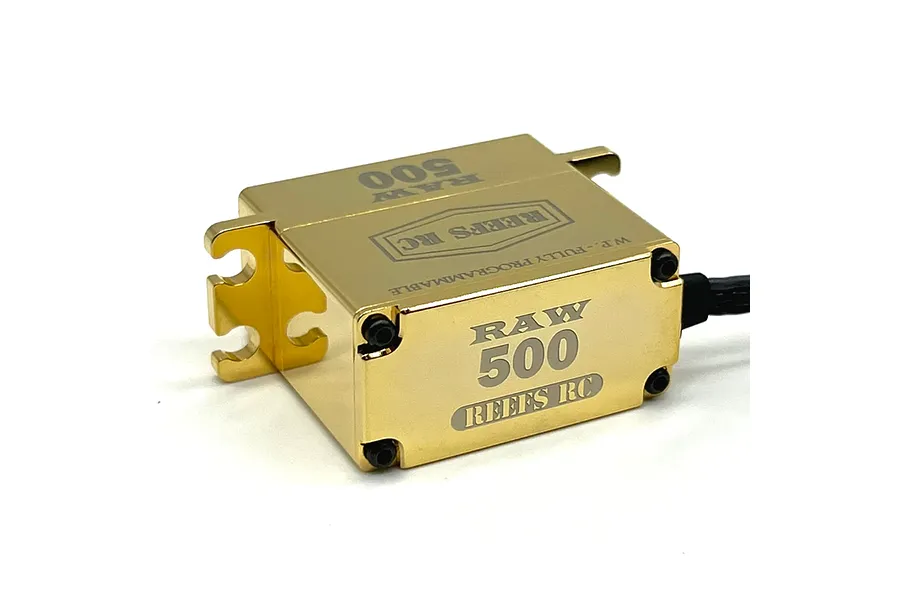

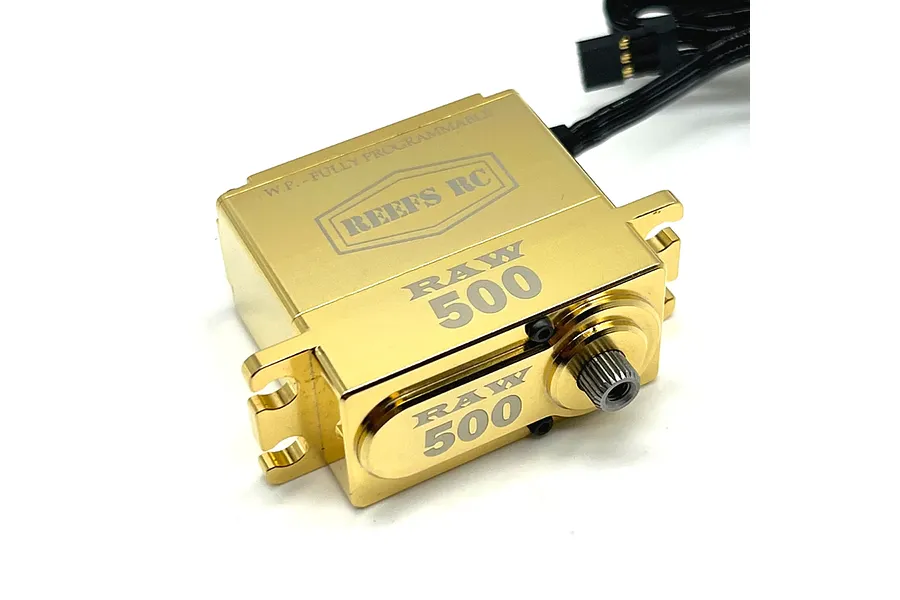

Reefs RC Brass RAW500 Standard 41kg Brushless Metal Gear Servo - Brass

  • Brushless

Part no. REEFS159

2 in stockNo reviews yet
1 / 5
1 / 5

$284.99

or 4 fortnightly payments of $71.25 with afterpay or PayPal, or zip

Reefs RC RAW 500 Brass Edition 40.8kg RC Servo: High torque, high speed, and waterproof.

  • High torque of 40.8 kg-cm
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Durable steel gears and CNC brass casing with ULTRA finish
  • Compact size suitable for various RC vehicles

  • 2 in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The Reefs RC RAW 500 Brass Edition Servo is a top-tier choice for RC enthusiasts seeking high performance and reliability. This fully programmable servo, compatible with Reefs RC software, offers exceptional torque and speed, making it ideal for a wide range of RC applications. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance under various conditions.

Built to withstand the toughest environments, the RAW 500 Brass Edition features steel gears and a CNC brass casing with an ULTRA finish. The submarine waterproof design with 7-point seals ensures excellent protection against water and dust, making it perfect for all-terrain adventures. The magnetic angle sensor and pulse width modulation control provide precise and responsive control, enhancing the overall driving experience. Whether you're a seasoned RC hobbyist or a newcomer, the Reefs RC RAW 500 Brass Edition is a powerful and reliable addition to your RC setup.

Note

BEC is not required but recommended for maximum performance

Reefs RC LINK required for programming

Consult the manual for waterproof standards and maintenance

Features

  • High torque and speed brushless servo
  • Strong torque @ 40.8 kg-cm (565 oz-in) and fast speed of 0.08 sec @ 8.4V
  • Submarine waterproof with magnetic angle sensor
  • Fully programmable with Reefs RC software
  • Pulse width modulation control
  • Voltage range: 4.8V - 8.4V
  • No mechanical angle limit
  • Steel gears and CNC brass casing with ULTRA finish
  • 2 ball bearings for smooth operation
  • 22AWG wires
  • Genuine Reefs RC product

In the box

  • 1x Reefs RC RAW 500 Brass Edition Servo

Specifications

Torque(6.0V)32.4 kg-cm (450 oz-in)
Torque(7.4V)36.0 kg-cm (500 oz-in)
Torque(8.4V)40.8 kg-cm (565 oz-in)
Speed0.11 sec (6.0V), 0.095 sec (7.4V), 0.08 sec (8.4V)
Operating Voltage4.8V - 8.4V
Weight145.2g (5.2oz)
Bearing Type2 Ball Bearings
Motor TypeBrushless Motor
Gear TypeSteel Gears
Size40x20x38mm (1.57x0.79x1.5")

Servo

SizeConventionally sized servo namesStandard
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialBrass
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline32
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.11
7.4V Torque kg/cm36
7.4V Sec/60 Degrees0.095
8.4V Torque kg/cm41
8.4V Sec/60 Degrees0.08
Signal TypeDigital
