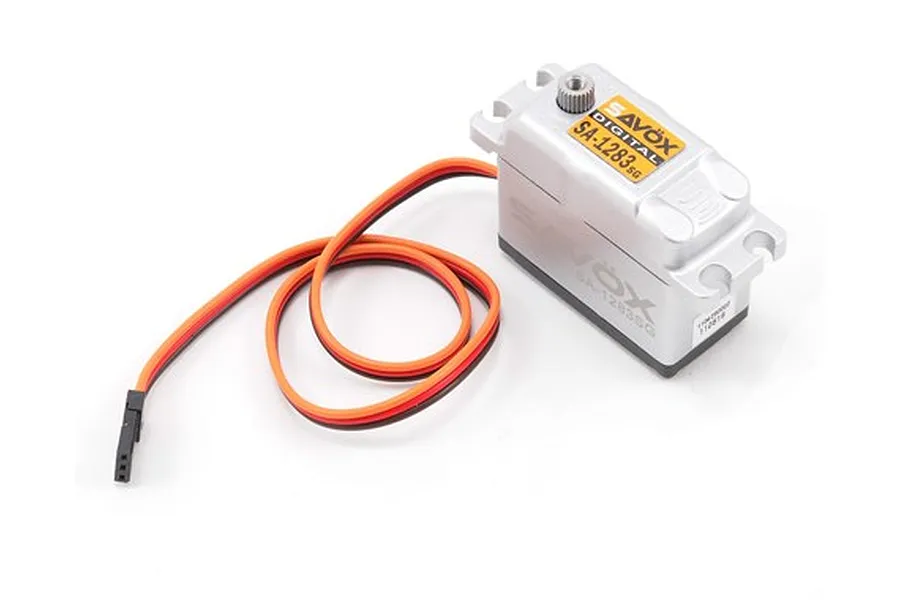

Savox Standard 30kg Metal Geared Waterproof Servo

Brand: Savox | SKU: SA-1283SG

discontinued

5.0

1 reviews

Description

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

SAV-A-1283SG Servo Specifications

Total Height (A) = 40.2mm
Body Width (B) = 40.6mm
Below Mount (C) = 23.4mm
Above Mount (D) = 13mm
Total Length (E) = 54.5mm
Total Width (F) = 20.2mm

Specifications

Servo

Height (A): 40.2mm
Body Length (B): 40.6mm
Bottom to Under Mount (C): 23.4mm
Top to Under Mount (D): 13mm
Length (E): 54.5mm
Width (F): 20.2mm
Size Conventionally sized servo names: Standard
Gear Material: Metal
Waterproof Casing: No
Servo Spline Count: 25Tooth
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 30
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.13
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Metal
Rotational Degrees: 120° (Normal)

Reviews (1)

Apr 27, 2020

5 years ago

Caleb C

***** badass servo, i have been using this for over a year as a solo steer in my Summit with very heavy louise mt uphills, and it has more power and speed that i will ever need.
