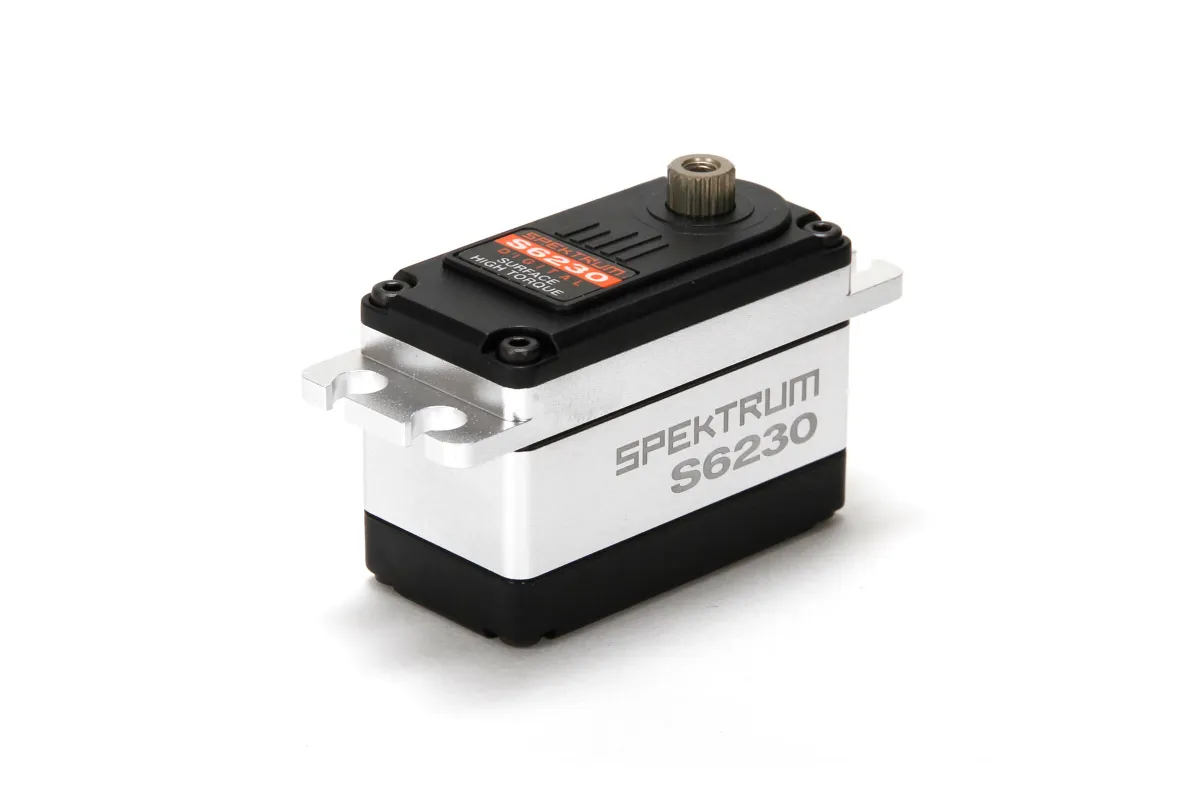

Spektrum S6230 Aluminium Standard Coreless 22.4kg 6v Metal Geared Waterproof Servo

Videos

Spektrum S6230 Aluminium Standard Coreless 22.4kg 6v Metal Geared Waterproof Servo

Brand: Spektrum | SKU: SPMSS6230

1 in stock

write a review

$174.77

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Loading compatibility information...

Recommended Products

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

Description

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited.

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Features

Removable wire harness with different lengths available
7075 Aluminium hard anodised output shaft/main gear with steel internal gears
Aluminium case for good heat dissipation
Aluminium mounting tabs
NMB dual main bearings
23T output shaft
Waterproof

Specifications

Application: 1/10 Buggy, Truck, On-Road
Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 200mm (7.87 in)
Current Draw Idle: 9.8 mA @ 6.0V
Current Draw Stall: 4900mA @ 6.0V
Deadband: 4?s
Gear Type: Metal
Input Voltage: 6.0V
Servo Speed: 0.14 sec/60 deg @ 6.0V, at no load
Maximum Servo Torque: 200-349 oz-in

Motor Type: Coreless
Product Height: 30mm (1.18 in)
Product Length: 41mm (1.61 in)
Product Weight: 59.5g (2.1 oz)
Product Width: 20.8mm (0.82 in)
Programmable: No
Rotation Range: 120 deg
Servo Operating Voltage: 6.0V
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 Teeth
Torque: 22.4kg-cm (311 oz-in) @ 6.0V
Wire Gauge: 22 AWG

Included items

Description	QTY
S6230 Coreless 22kg Servo	1
Parts Set	1

Servo Dimensions

Total Height (A) = 34mm
Body Width (B) = 41mm
Below Mount (C) = 19mm
Above Mount (D) = 15mm
Total Length (E) = 51mm
Total Width (F) = 21mm

Specifications

Servo

Servo Spline Count: 23Tooth
Total Length: 51mm
Total Width: 21mm
Bottom to Under Mount: 19mm
Top to Under Mount: 15mm
Total Height: 34mm
Body Length: 41mm
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.14
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 22.4
Gear Material: Metal
Waterproof Casing: Yes
Drive Motor Type: Coreless
Size Conventionally sized servo names: Standard
