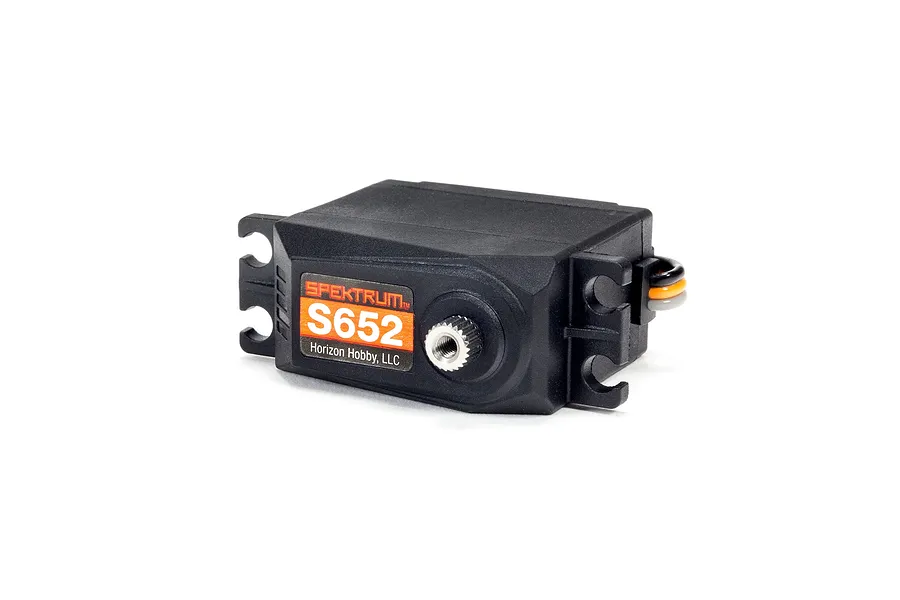

Spektrum S652 Standard 19kg 7.2V Brushless Steel Geared Waterproof Servo

Videos

Spektrum S652 Standard 19kg 7.2V Brushless Steel Geared Waterproof Servo

Brand: Spektrum | SKU: SPMS652

1 in stock

write a review

$111.68

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Loading compatibility information...

Recommended Products

Yeah Racing TRX4 Black Aluminium 23T & 25T Servo Horn

0 reviews

$16.27

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

This 18Kg Servo Steel Gear is compatible with the Arrma 1/7 Mojave Desert Truck, 1/7 Infraction 6S BLX Street Bash, 1/7 Felony 6S BLX Muscle Car, 1/8 Typhon 6S V5 BLX Buggy, 1/8 Kraton 6S V5 Monster Truck and the 1/8 Notorious 6S V5 Stunt Truck.

Features

Replaces the ADS-15M Servo

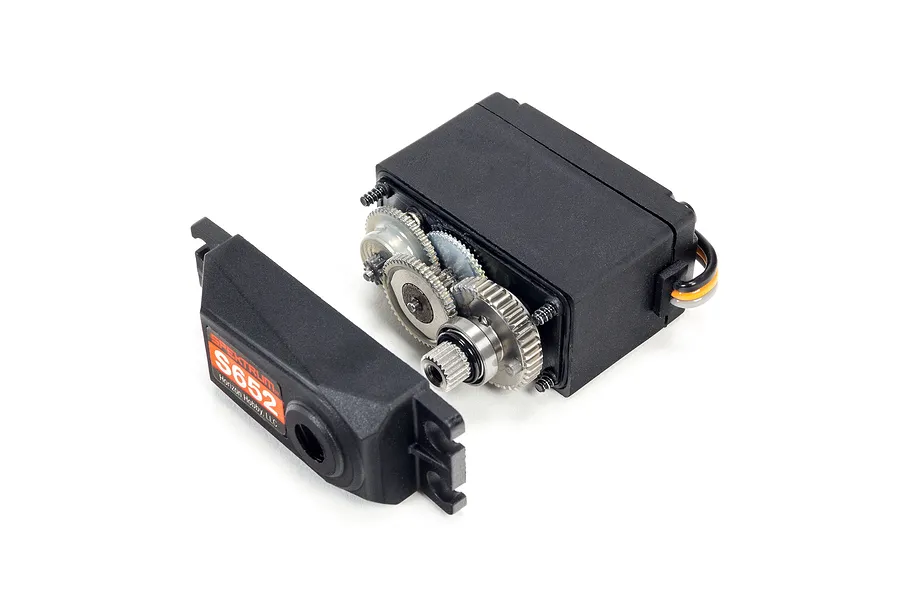

Made with steel gears for improved durability
Waterproof design

Specifications

Torque(6.0V)- 16.49 kg-cm (229 oz/in)
Torque(7.4V)- 18.94 kg-cm (263 oz/in)
Speed: 0.227 sec (6V)- 0.184 sec (7.2V)
Operating Voltage- 6V/7.2V
Weight- 62g (2.18 oz)
Bearing Type?
Motor Type- Brushless
Gear Type- Steel
Size- 40.1 × 20.0 × 39.4 mm (1.58 × 0.79 × 1.55 in)

Servo Dimensions

Total Height (A) = 43.21mm
Body Width (B) = 40.45mm
Below Mount (C) = 27mm
Above Mount (D) = 16.21mm
Total Length (E) = 54mm
Total Width (F) = 19.9mm

Note

The S652 uses 23 Tooth servo horns

Specifications

Servo

Servo Spline Count: 23Tooth
Total Length: 54mm
Total Width: 19.9mm
Bottom to Under Mount: 27mm
Top to Under Mount: 16.21mm
Total Height: 43.21mm
Body Length: 40.45mm
Case Material: Plastic, Metal
6V Sec/60 Degrees Seconds per 60 degrees of rotation: .227
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 16.49
Gear Material: Steel
Waterproof Casing: Yes
Drive Motor Type: Brushless
Size Conventionally sized servo names: Standard
