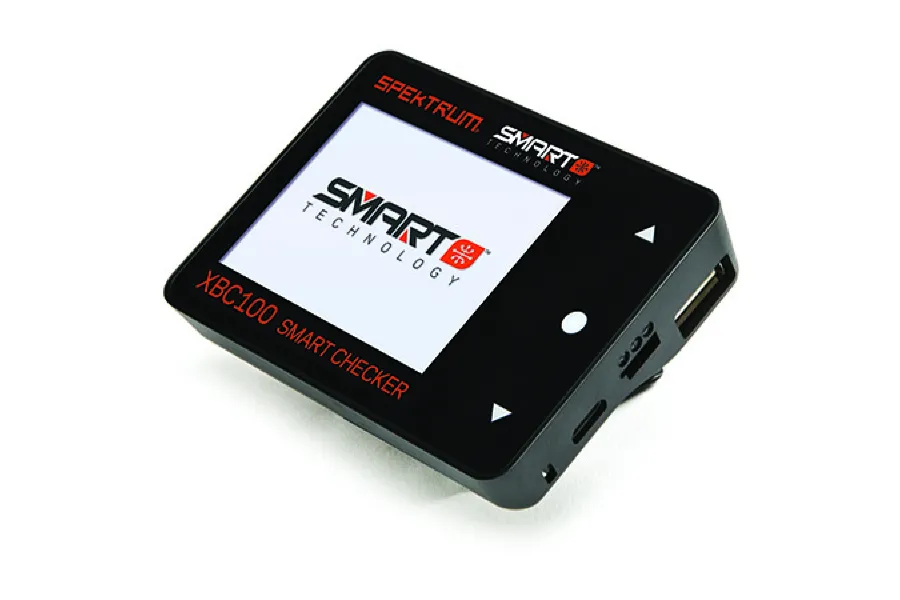

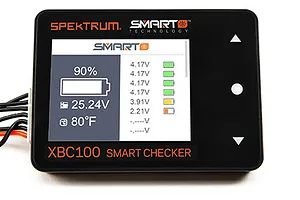

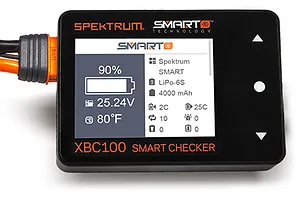

Spektrum XBC100 Smart Battery Checker & Servo Tester

Part no. SPMXBC100

DiscontinuedNo reviews yet
1 / 5
1 / 5

Videos

This product has been discontinued.

Contact us

Videos

Overview

The Spektrum XBC100 Smart Battery Checker is a must-have tool for any pilot or driver's pit box. More than a battery checker, it features a built-in cell balancer, integrated servo tester and driver, and Spektrum Smart battery connectivity.

When used with a Spektrum Smart battery, you will be able to see and adjust many of the settings only available with a Spektrum Smart charger. This includes one connection for balance and battery level checking, and providing records like number of cycles, internal battery temperature, and exception reports. You can even adjust Smart battery settings right from the XBC100.

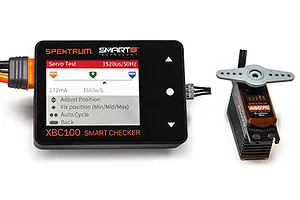

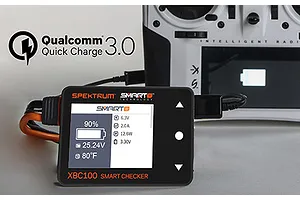

The XBC100 also features a Qualcomm 3.0 USB charge port, giving you an easy way to keep your mobile device and Spektrum Smart Transmitters charged when USB power ports are scarce. The XBC100 also gives you the ability to better set up and test your models with the built-in servo tester — centre and test your servo endpoints easily with the integrated PWM output port.

All of this is displayed on a full-colour IPS LCD screen designed to be easy to read in direct sunlight, accessed via a user-friendly touch interface.

Features

  • Battery checker with built-in cell balancing
  • Advanced servo testing feature helps with model setup
  • Spektrum Smart battery technology allows users to take advantage of Smart Battery
  • Easy to read full-colour display
  • Qualcomm 3.0 compatible USB power port with Quick Charge for compatible Android and iOS devices (up to 12V and 2 amps)
  • Update port for easy access to updates and new features

Specifications

Working voltage5.0V–36V
Input voltage 1S0.8V–15V
Input voltage 2–8S0.8V–4.8V
Battery cells1–8S
Voltage measurement accuracy±0.005V @ 4.2V
Balancing cells accuracy<0.005V
Support USB chargingQC 2.0 / 3.0, BC1.2, maximum output 12V/2A
Support smart batteryCharging and discharging setting, read battery info and usage history
Supported battery typesLiHv (1–8S) / LiPo (1–8S) / LiFe (1–8S) / LiIon (1–8S) / NiMH/NiCd (1–10S)
Display2.4" 320×240 260,000-colour IPS LCD
Dimensions80 × 55 × 19 mm
Weight59g
Operating temperature0–40°C
Working humidity10%–90% RH (non-condensing)
Storage temperature−20–60°C
Storage humidity5%–90% RH (non-condensing)
Servo PWM output1520µs = 50Hz / 760µs = 333Hz
