Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

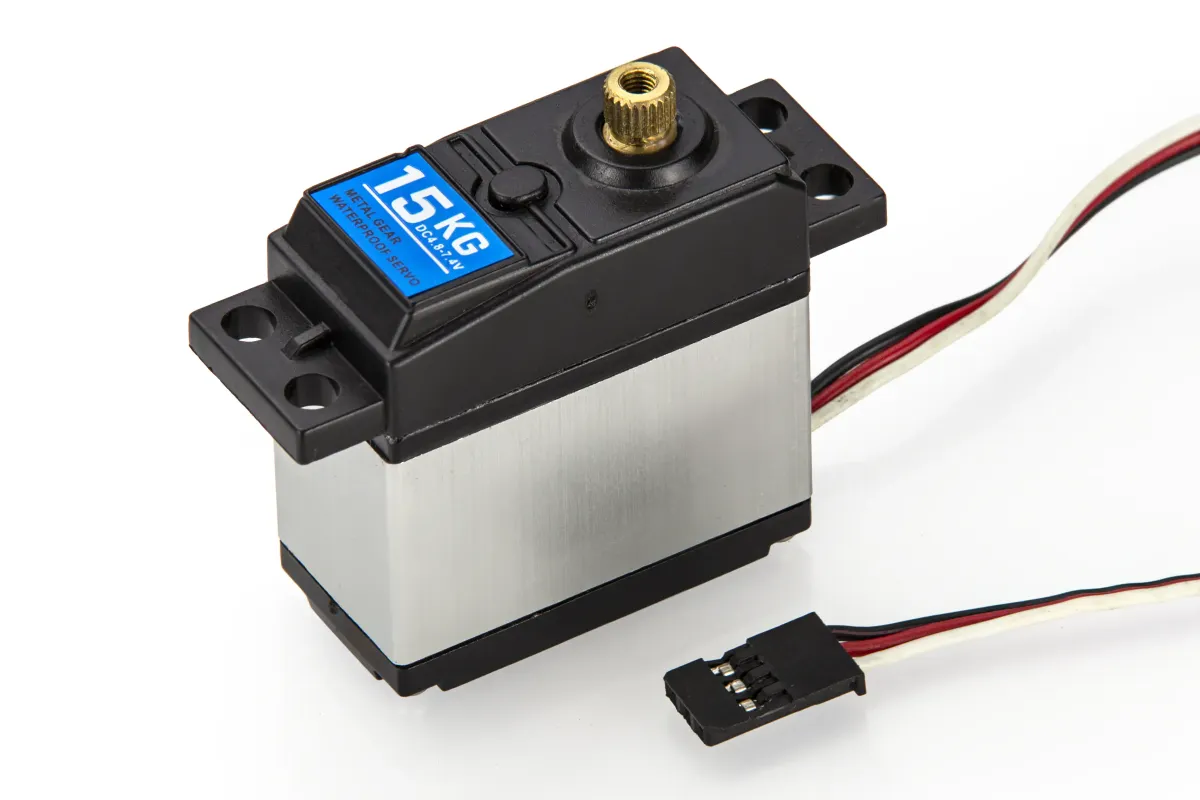

HSP-SP1502 Servo Specifications

Total Height (A) = 45.5mm
Body Width (B) = 40mm
Below Mount (C) = 27mm
Above Mount (D) = 18.5mm
Total Length (E) = 53.5mm
Total Width (F) = 20mm

Specifications

Servo

Height (A): 45.5mm
Body Length (B): 40mm
Bottom to Under Mount (C): 27mm
Top to Under Mount (D): 18.5mm
Length (E): 53.5mm
Width (F): 20mm
Size Conventionally sized servo names: Standard
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 15
Case Material: Metal
Rotational Degrees: 120° (Normal)
