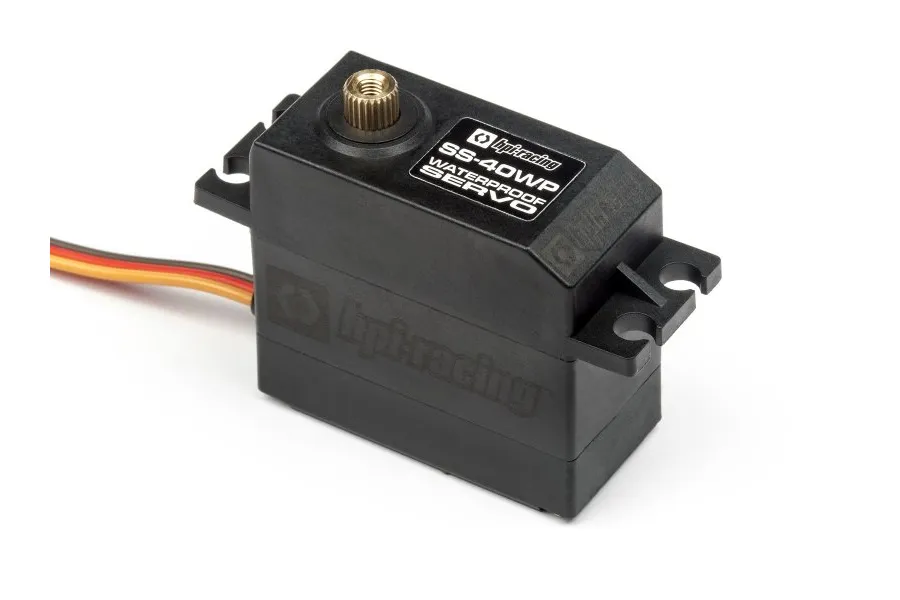

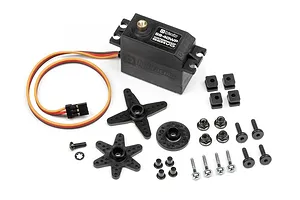

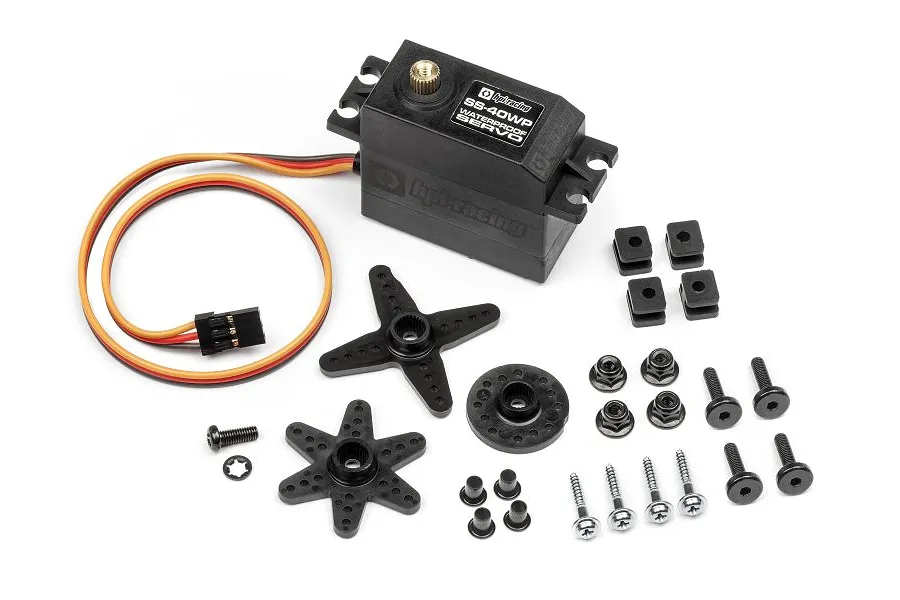

HPI Standard SS-40WP 10kg Metal Geared Servo

Brand: HPI Racing | SKU: 110650

1 in stock

5.0

1 reviews

$111.95

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Loading compatibility information...

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

HPI-110650 Servo Specifications

Total Height (A) = 43.4mm
Body Width (B) = 40mm
Below Mount (C) = 24mm
Above Mount (D) = 16.4mm
Total Length (E) = 56mm
Total Width (F) = 19.5mm

Specifications

Servo

Total Width: 19.5mm
Servo Spline Count: 25Tooth
Top to Under Mount: 16.4mm
Total Length: 53.5mm
Body Length: 40mm
Bottom to Under Mount: 27mm
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.11
Total Height: 43.4mm
Case Material: Plastic
Rotational Degrees: 120° (Normal)
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 10
Gear Material: Metal
Waterproof Casing: Yes
Size Conventionally sized servo names: Standard

Reviews (1)

Nov 11, 2018

7 years ago

Michael D

Verified Buyer

So much better than the stock one in the savage XS. Almost a crime the rubbish one that comes with the RTR. So slow and bugger all torque. This one does the business well

Compatibility

Fits 73 HPI Models
