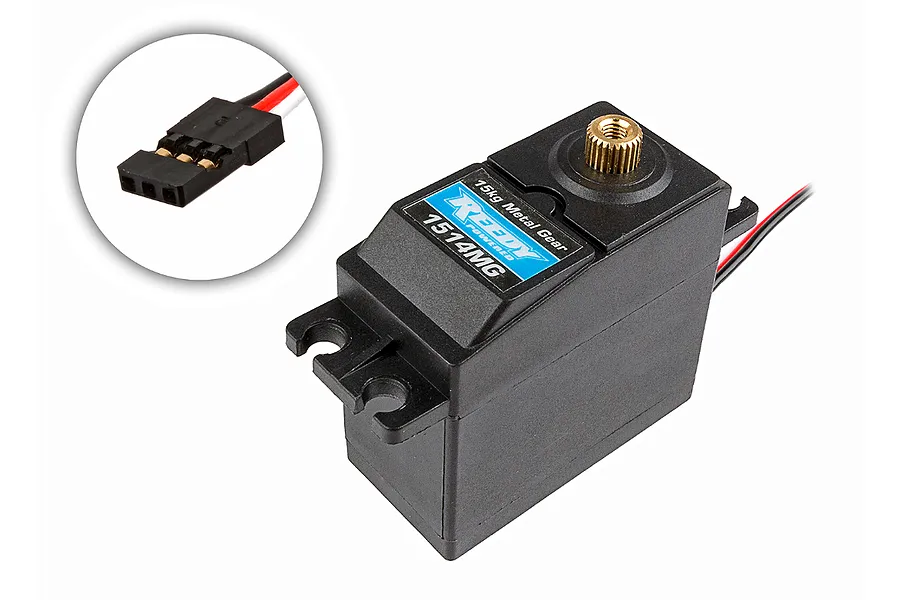

Reedy Power 1514MG 15kg 7.4V Standard Metal Geared Servo
Reedy Power 1514MG 15kg 7.4V Standard Metal Geared Servo
Brand:
Reedy Power
|
MPN: 27111
$77.25
or 4 fortnightly payments of $19.31 with
Reedy Power 1514MG 15kg 7.4V Standard Metal Geared Servo with dual ball bearings and brushed motor.
- 15kg torque at 7.4V
- Durable metal gears for longevity
- Standard size fits various RC vehicles
- Dual ball bearing construction
Add to Wishlist
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Shop replacement & upgrade parts for this model
Shop Parts
Compatible with
59 products.
See Compatibility
Related Products
Description
Upgrade your RC's steering with the Reedy Power 1514MG 15kg 7.4V Standard Metal Geared Servo! This powerful servo delivers robust torque and features durable metal gears for reliable performance.
Features
- Powerful 15kg torque output
- Durable metal gears for longevity
- Standard size for compatibility with various RC vehicles
- Improves steering precision and responsiveness
- Easy to install
- Genuine Reedy Power Product
Included Items
- 1x Reedy Power 1514MG 15kg 7.4V Standard Metal Geared Servo
Note
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
-
Torque (6V)
- 14 kg-cm (19.61 oz-in)
-
Torque (7.4V)
- 15 kg-cm (21.03 oz-in)
-
Speed
- 0.100 sec (6.0V) | 0.140 sec (7.4V)
-
Weight
- 56 g (1.97 oz)
-
Operating Voltage
- 6.0V – 7.4V
-
Bearing Type
- Dual Ball Bearing
-
Motor Type
- Brushed
Servo
-
Height (A)
- 43.8mm
-
Body Length (B)
- 40.3mm
-
Bottom to Under Mount (C)
- 27mm
-
Length (E)
- 54.4mm
-
Width (F)
- 20.3mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6V, 7.4V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 14
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.16
-
7.4V Torque kg/cm
- 15
-
7.4V Sec/60 Degrees
- 0.14
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Plastic
-
Rotational Degrees
- 120° (Normal)
