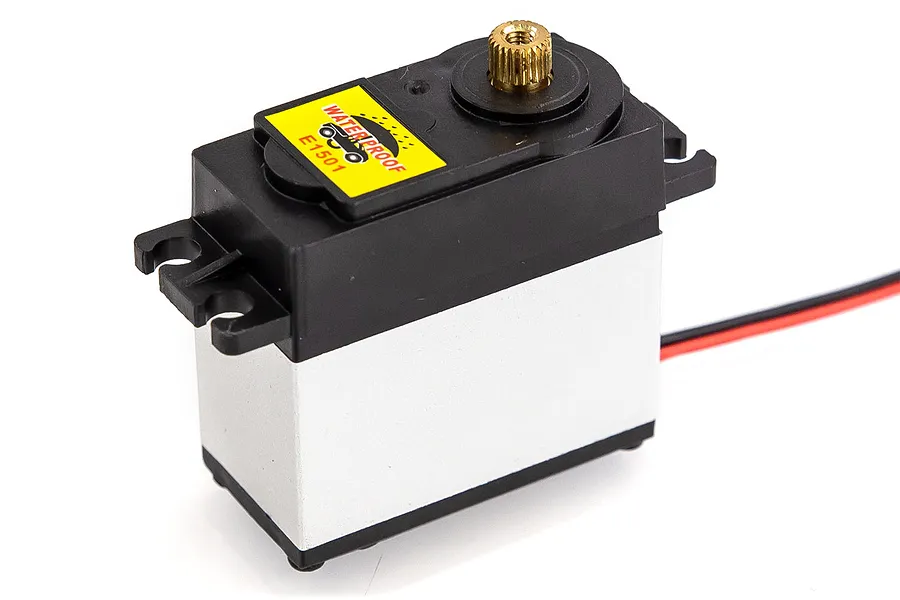

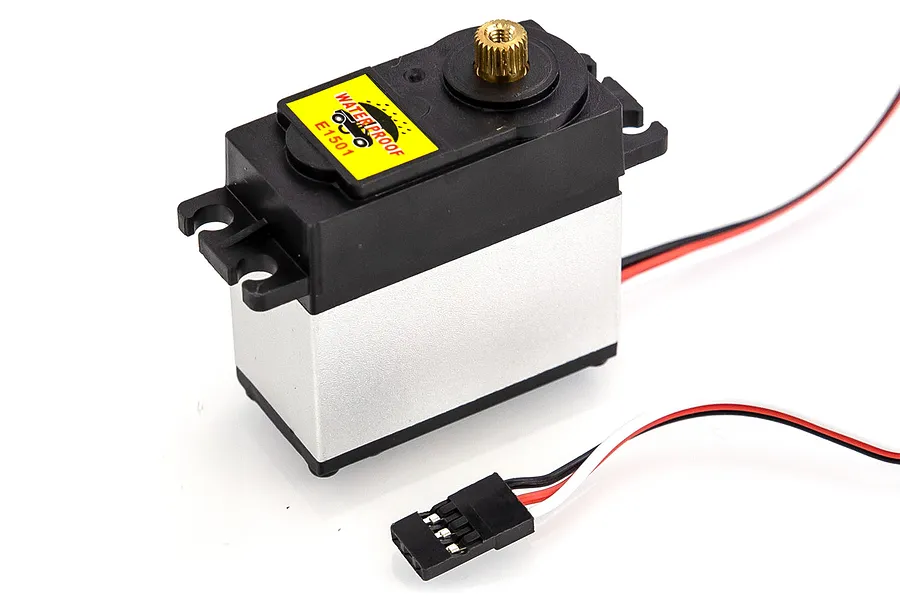

HSP Standard Metal Geared Waterproof Servo 15Kg
Brand: HSP
|
SKU: SP1501
Description
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
HSP-SP1502 Servo Specifications
- Total Height (A) = 45.5mm
- Body Width (B) = 40mm
- Below Mount (C) = 27mm
- Above Mount (D) = 18.5mm
- Total Length (E) = 53.5mm
- Total Width (F) = 20mm
Specifications
| Servo | |
|---|---|
| Size: | Standard |
| 6V Torque kg/cm: | 15 |
| Servo Spline Count: | 25tooth |
| Gear Material: | Metal |
| Waterproof Casing: | Yes |
| Case Material: | Metal |
| Rotational Degrees: | 120° (Normal) |
| Total Height: | 45.5mm |
| Body Length: | 40mm |
| Bottom to Under Mount: | 27mm |
| Top to Under Mount: | 18.5mm |
| Total Length: | 53.5mm |
| Total Width: | 20mm |
